FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Subaru >> 2006 >> Outback F6-3.0L DOHC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Strategies

Diagnostic Strategies

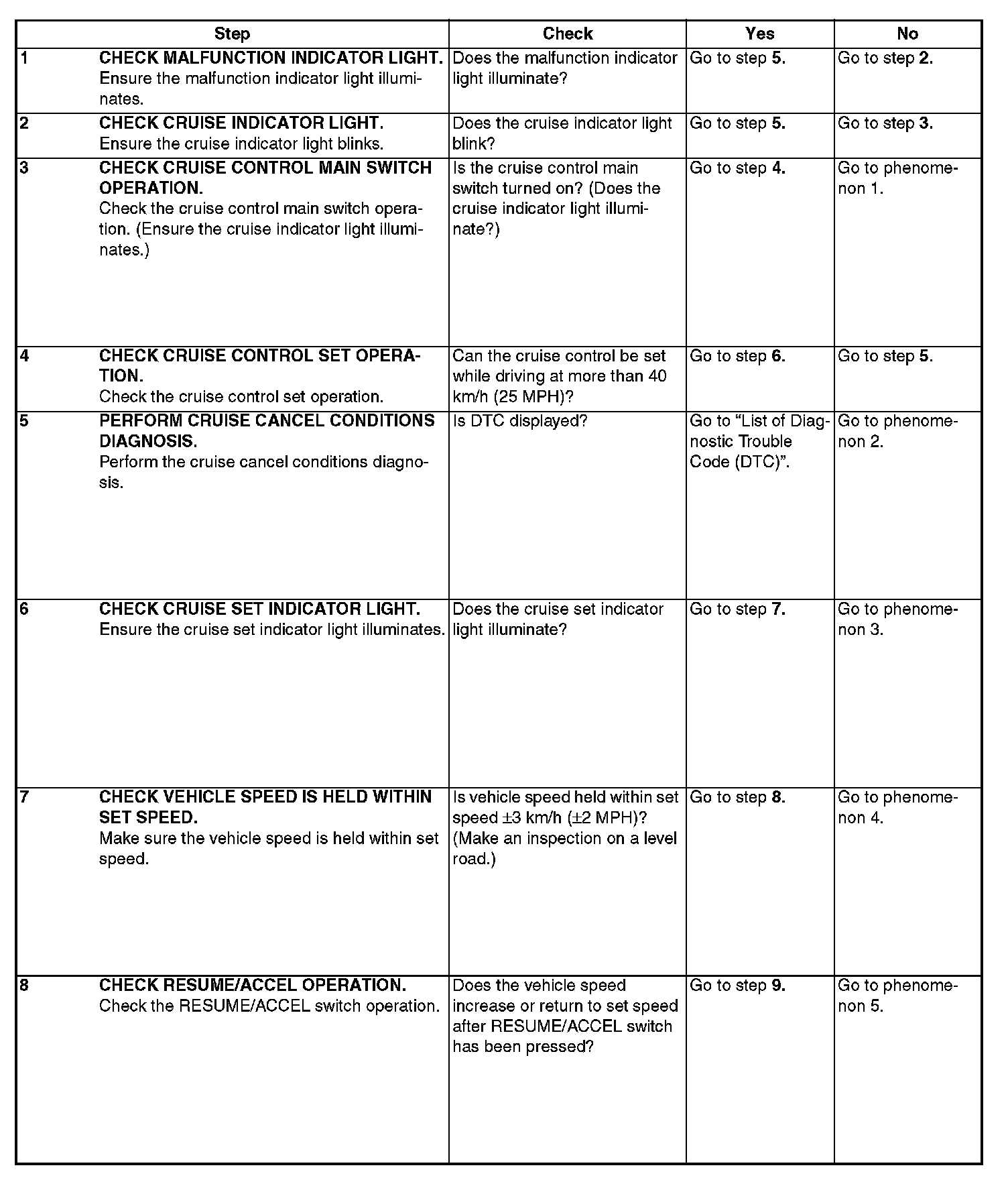

Basic Diagnostic Procedure Part 1:

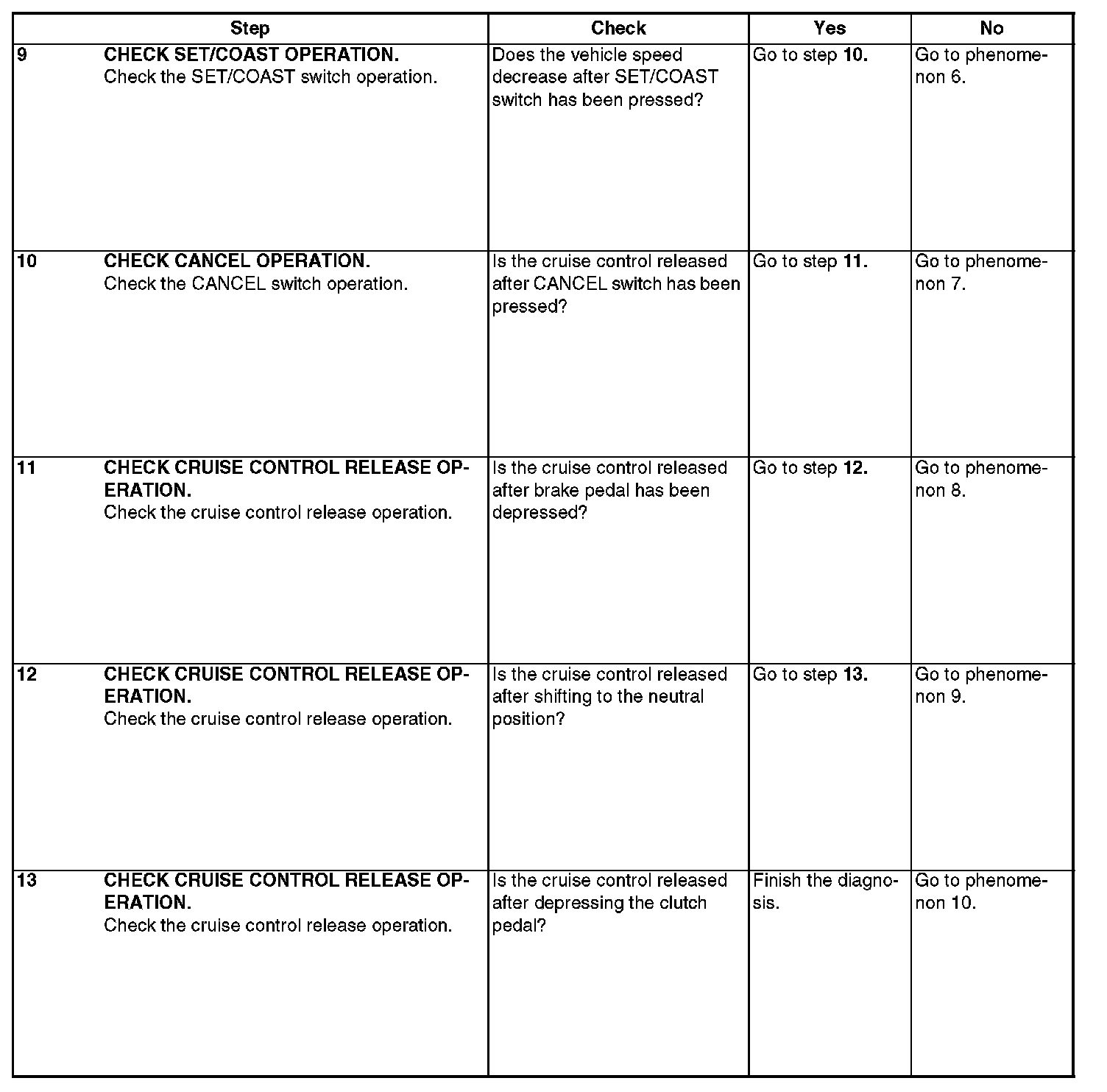

Basic Diagnostic Procedure Part 2:

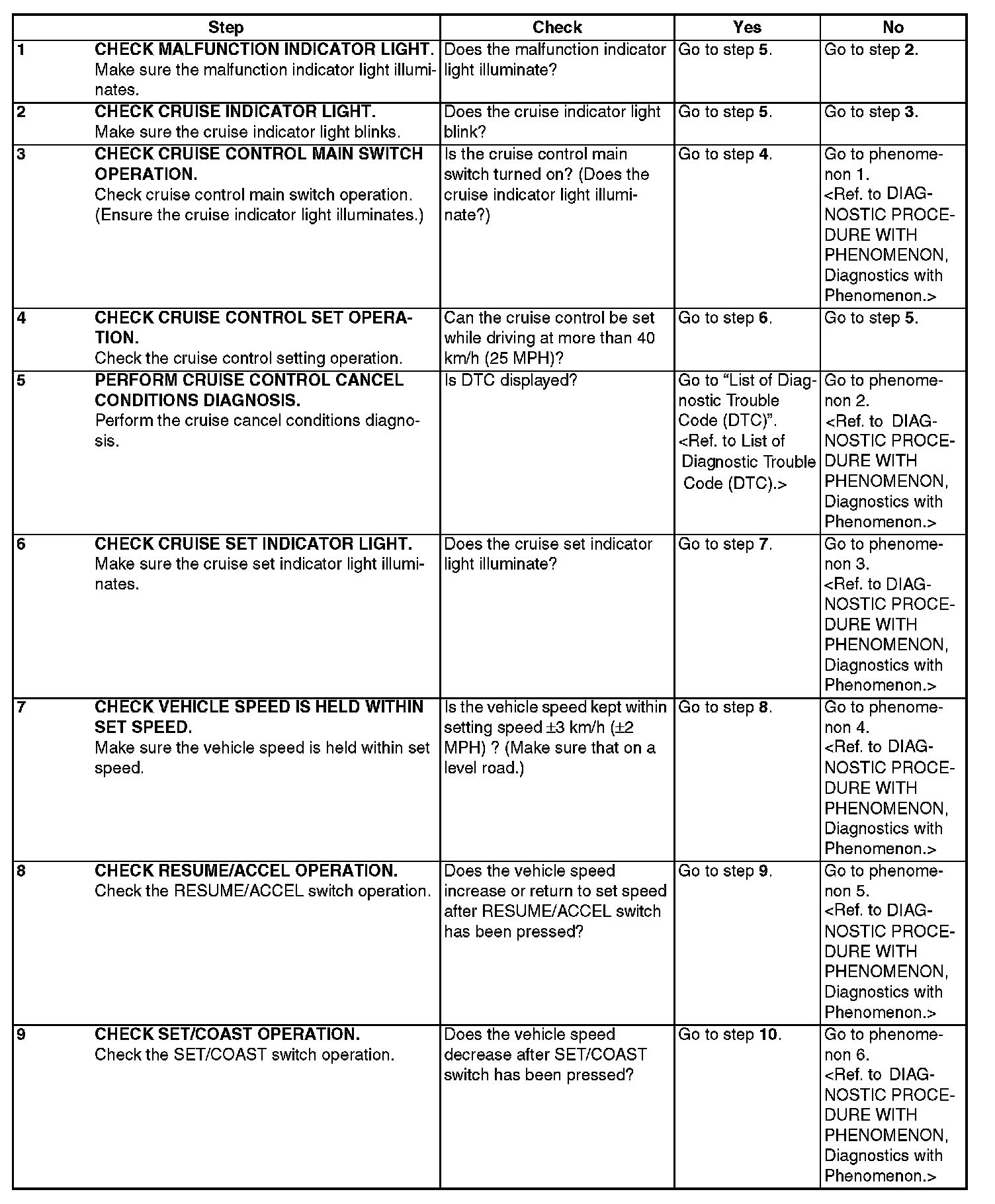

Step 1 - 8:

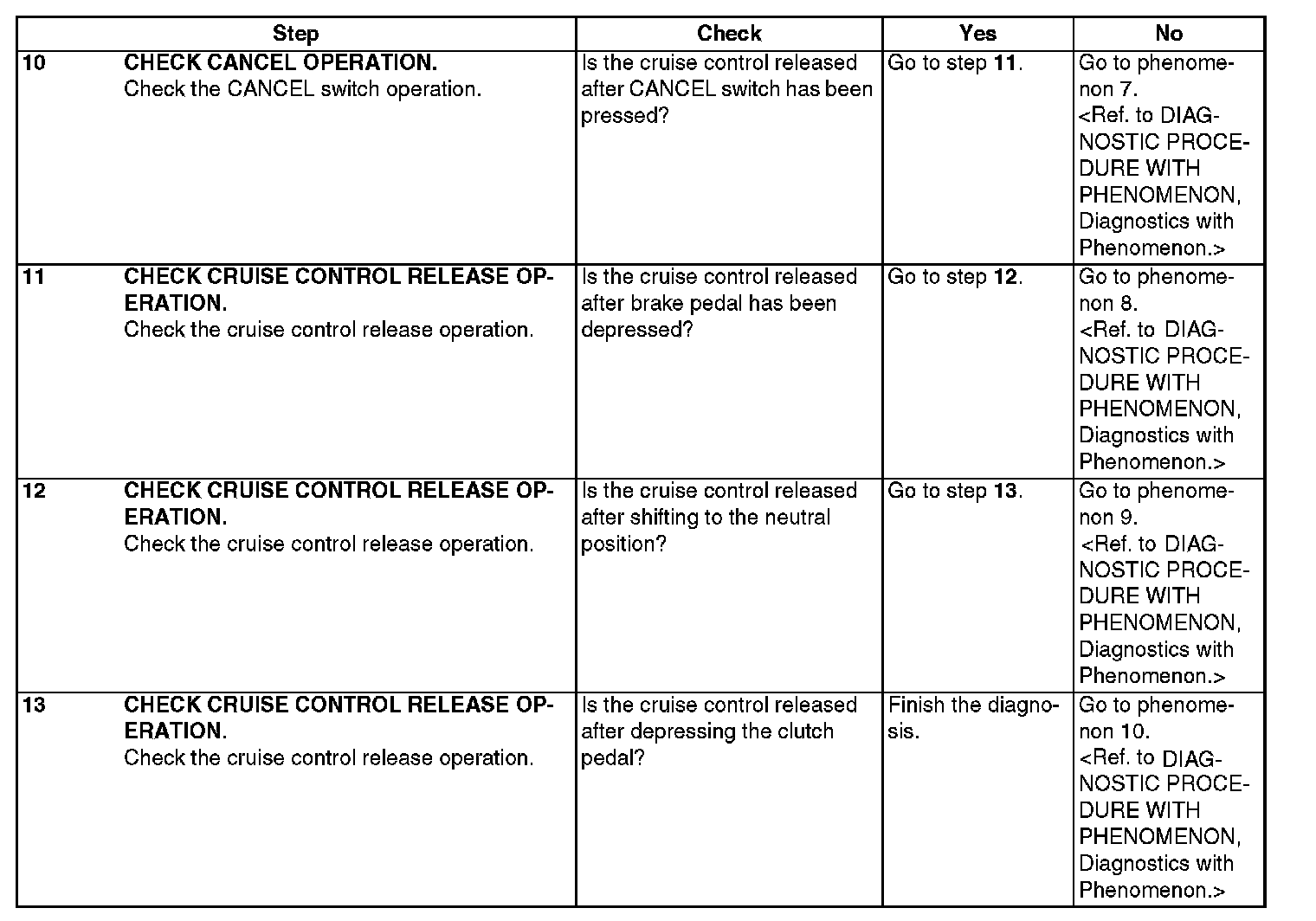

Step 9 - 13:
