Cruise Control Cancel Conditions Diagnosis

CRUISE CONTROL CANCEL CONDITIONS DIAGNOSIS

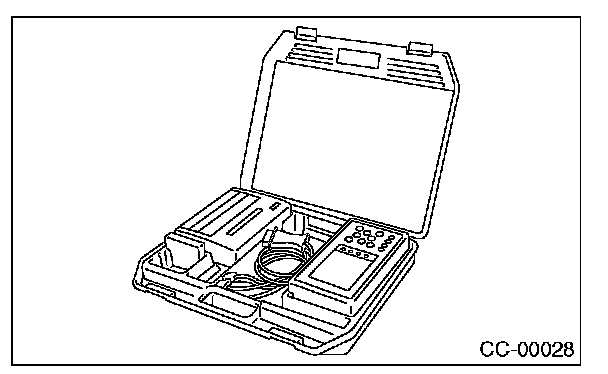

1. Prepare the Subaru Select Monitor kit.
2. Connect the diagnosis cable to the Subaru Select Monitor.

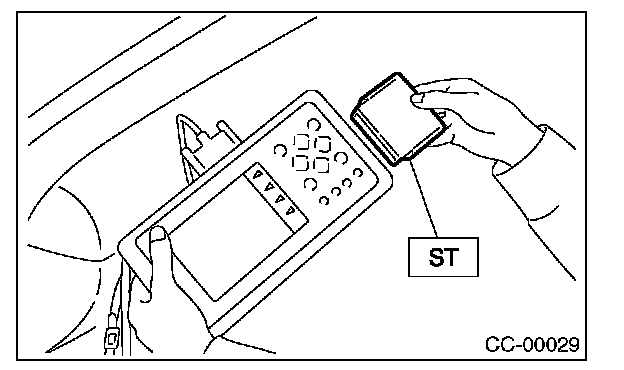

3. Insert the cartridge to the Subaru Select Monitor.
4. Connect the Subaru Select Monitor to the data link connector.




1. Data link connector is located in the lower portion of the instrument panel (on the drive's side).
2. Connect the diagnosis cable to the data link connector.

5. Start the engine and turn the cruise control main switch to ON.

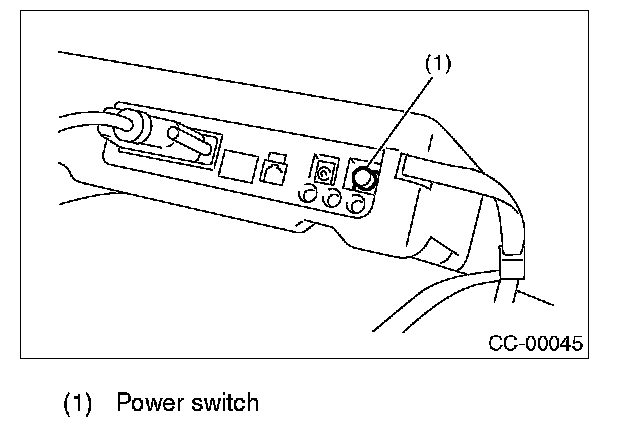

6. Turn the Subaru Select Monitor switch to ON.
7. On the �Main Menu� display screen, select the {2. Each System Check} and press the [YES] key. On the system selection display screen, select the {Engine Control System} and press the [YES] key. Press the [YES] key after the information of engine type is displayed.
8. Drive vehicle at 40 km/h (25 MPH) or more and set the cruise control.
9. When the cruise speed is canceled by itself (without any cancel operations), DTC will be displayed on the screen after selecting the {Check Cancel Code} and pressing the [YES] key on the engine malfunction diagnosis screen.

CAUTION:
- When performing diagnosis, observe the legal speed limit on the road.
- DTC will be also displayed when cruise control is cancelled by driver. Do not confuse them.
- Get an assistant in the vehicle for help of diagnosis while driving.

NOTE: DTC will be cleared by turning ignition switch or cruise control main switch to OFF.
