Control Module Pinout Values - With ABS

Control Module I/0 Signal

ELECTRICAL SPECIFICATION





NOTE:

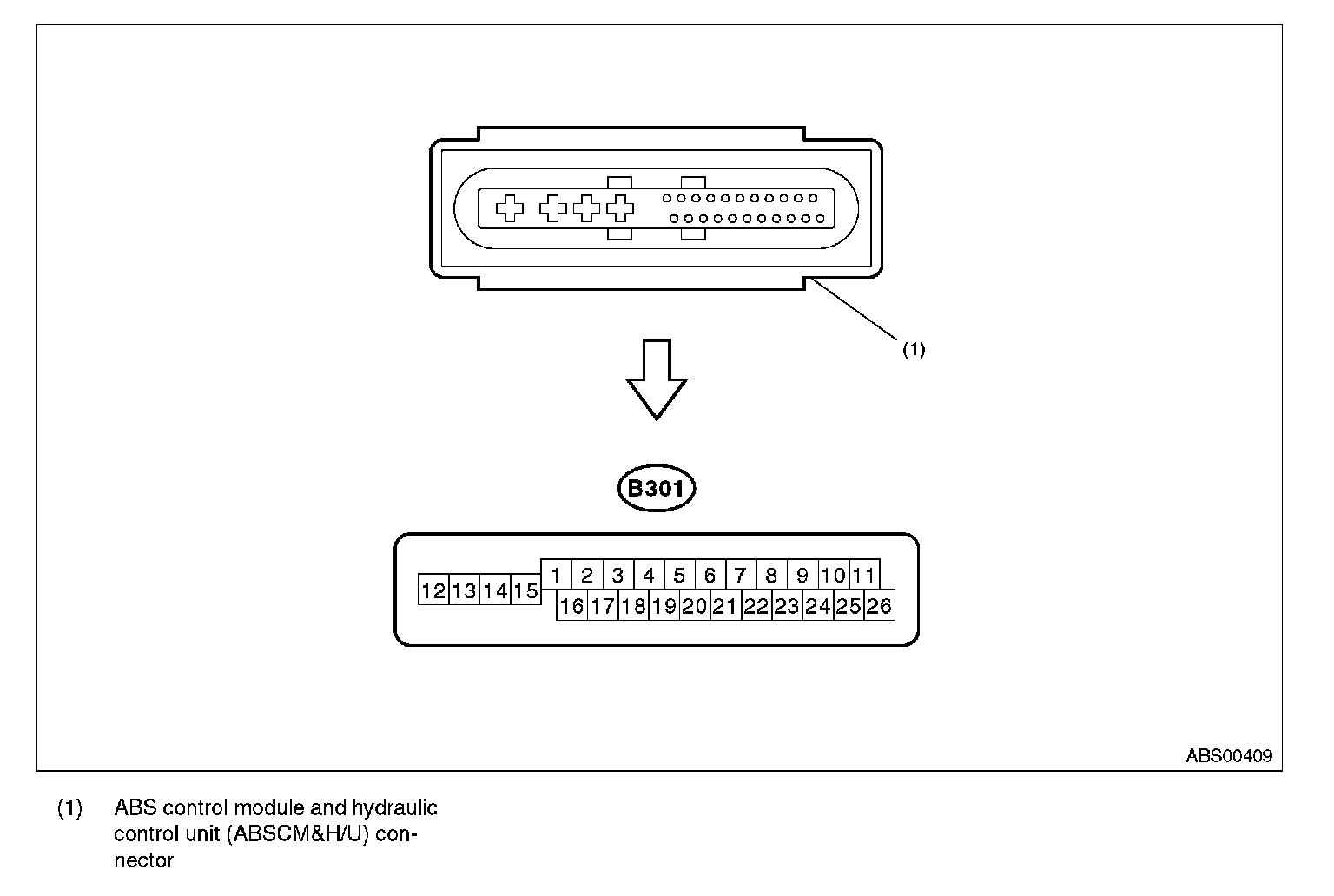

^ Terminal numbers in ABSCM & H/U connector are shown in the figure.
^ ABS warning light illuminates when the connector is removed from ABSCM & H/U.

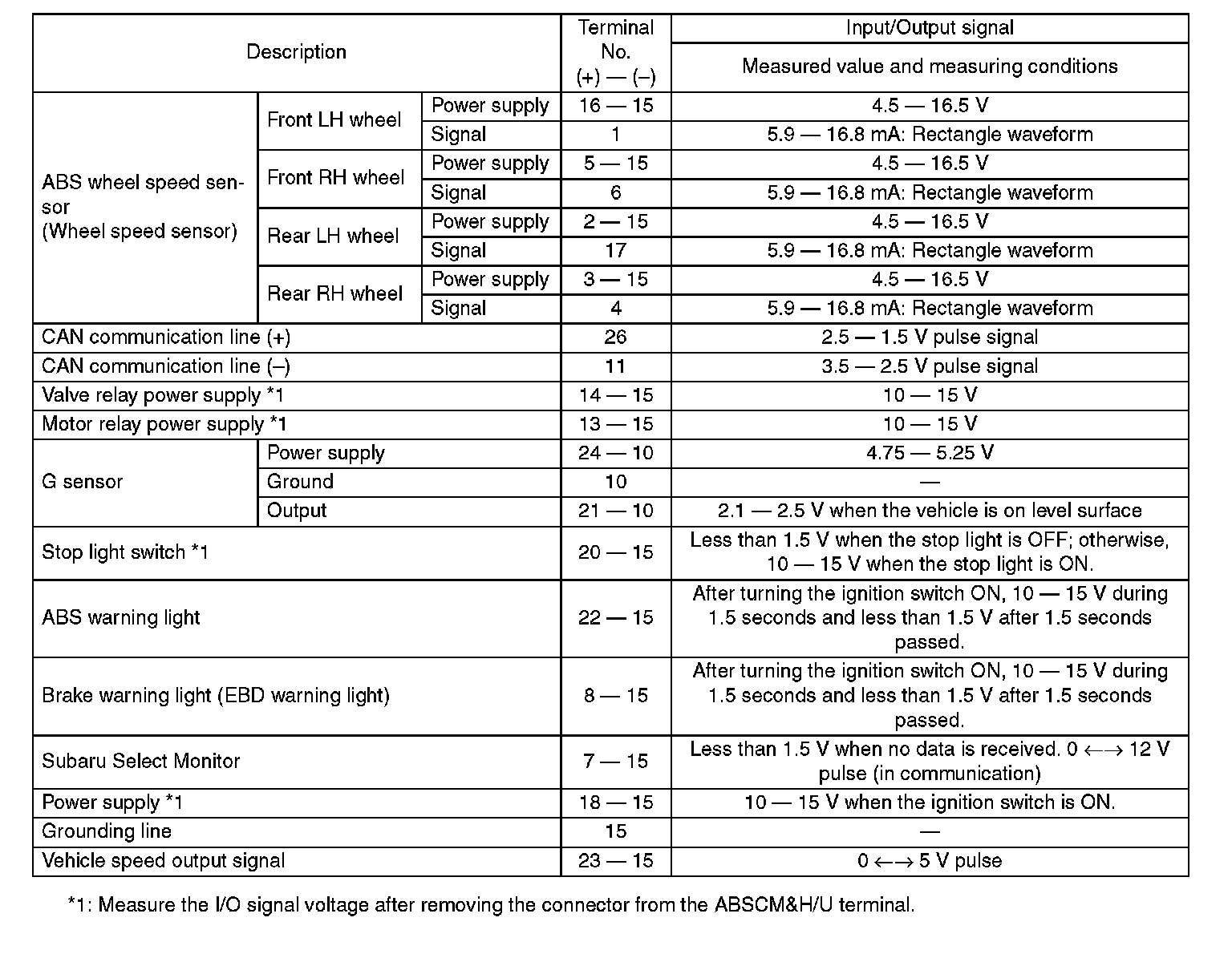

Control Module I/0 Signal:

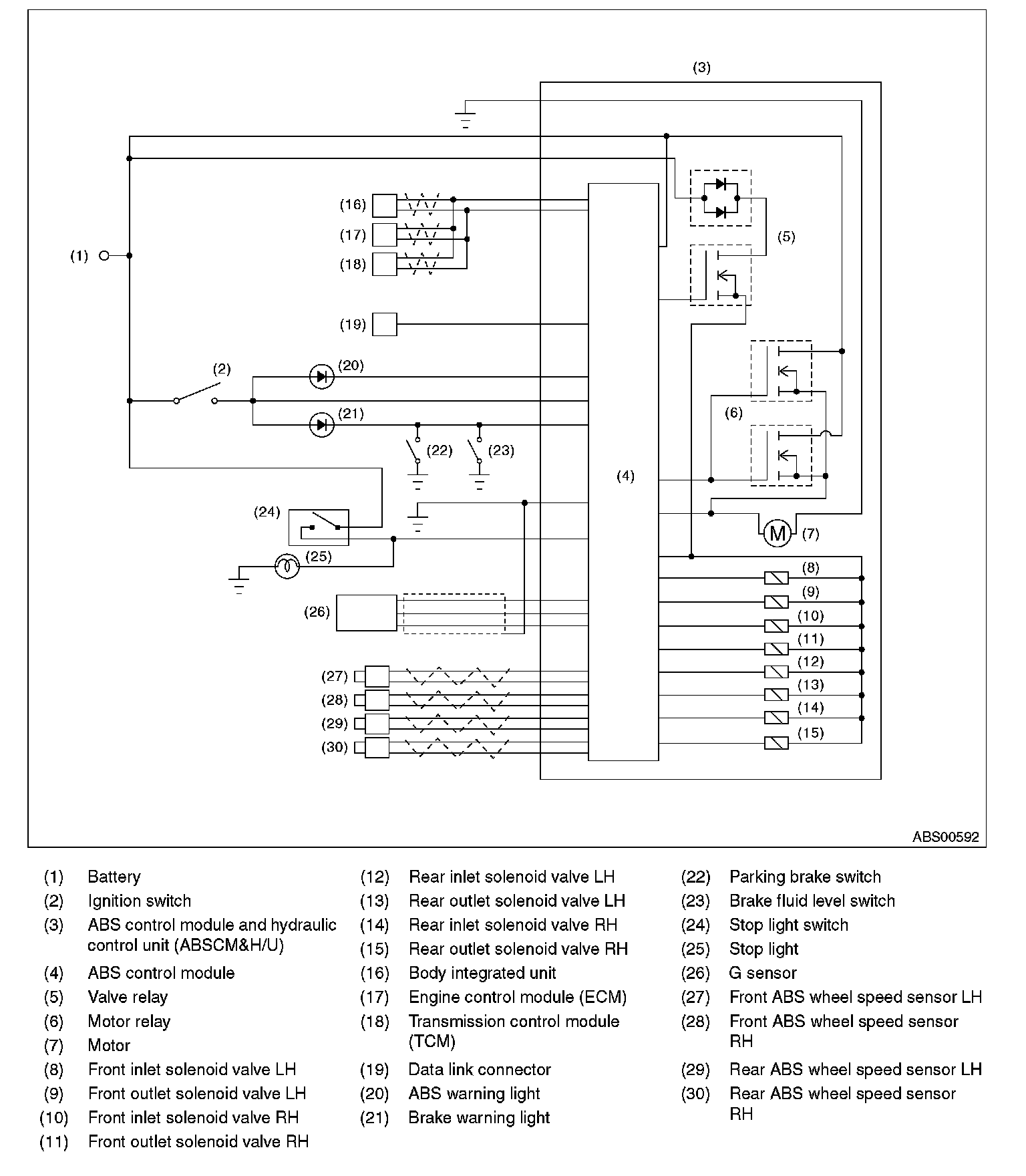

Wiring Diagram:
