Check List For Interview

Check List for Interview

CHECK
Check the following items regarding condition of the vehicle.

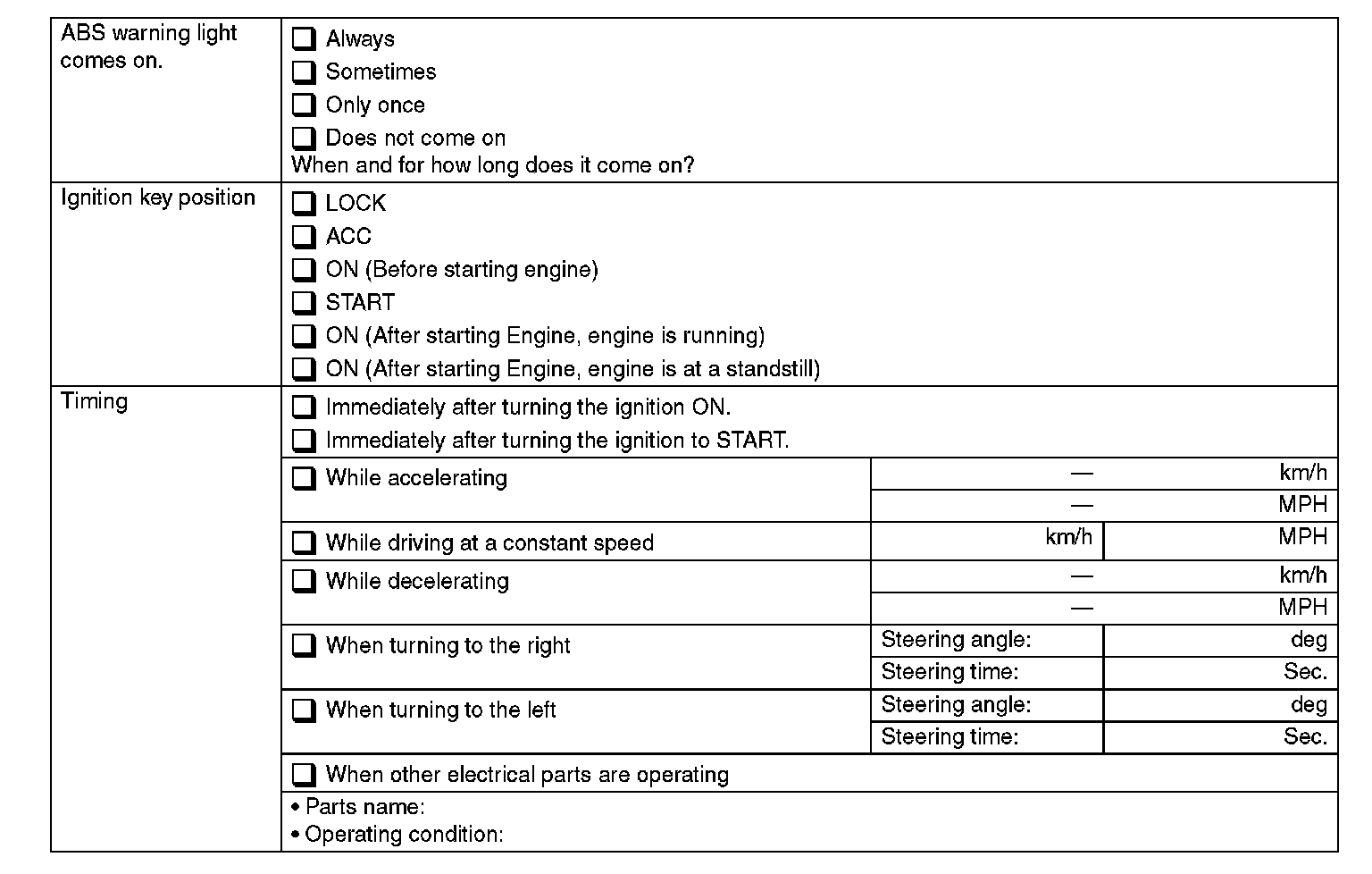

STATE OF ABS WARNING LIGHT

STATE OF ABS WARNING LIGHT:

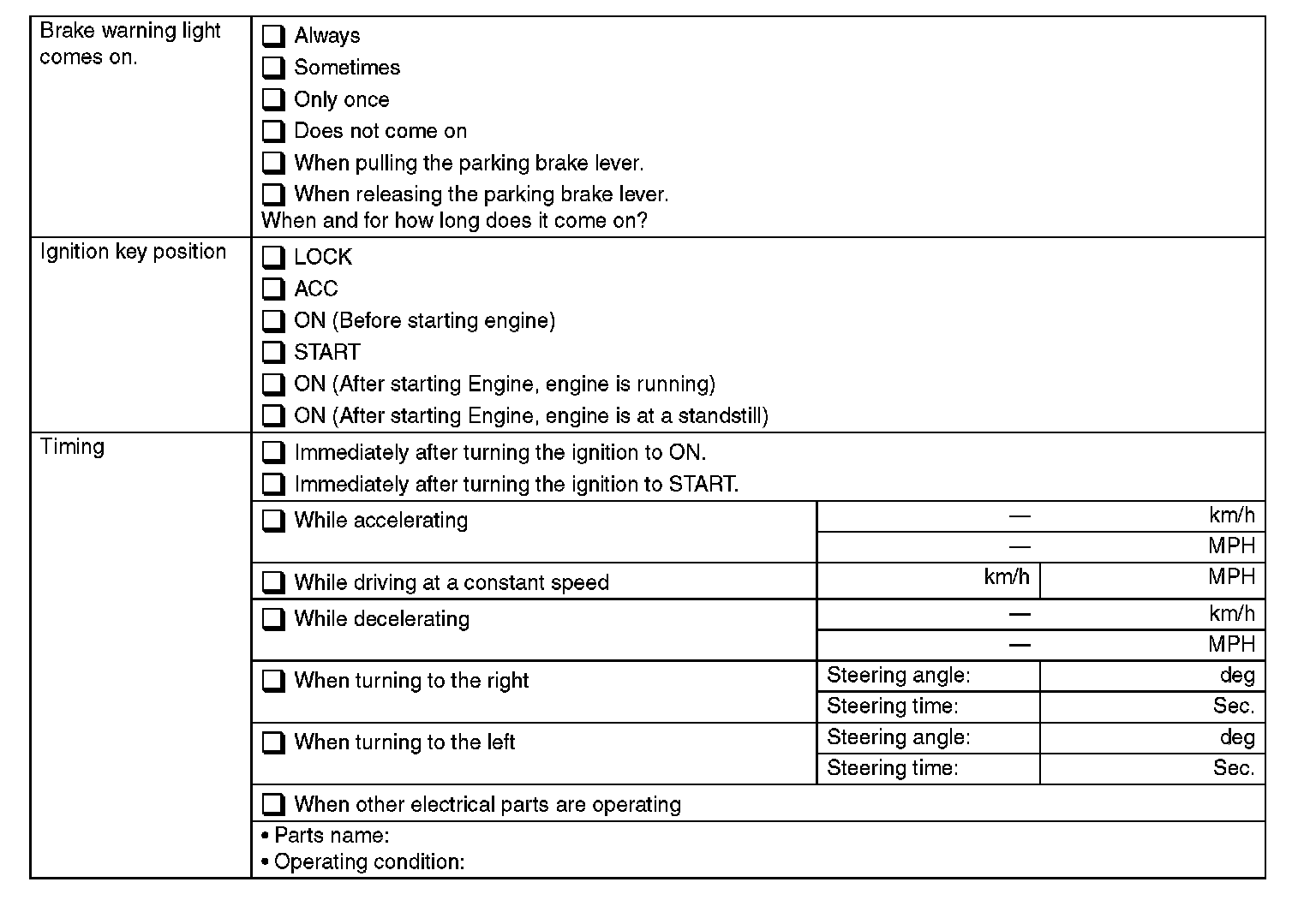

STATE OF BRAKE WARNING LIGHT

STATE OF BRAKE WARNING LIGHT:

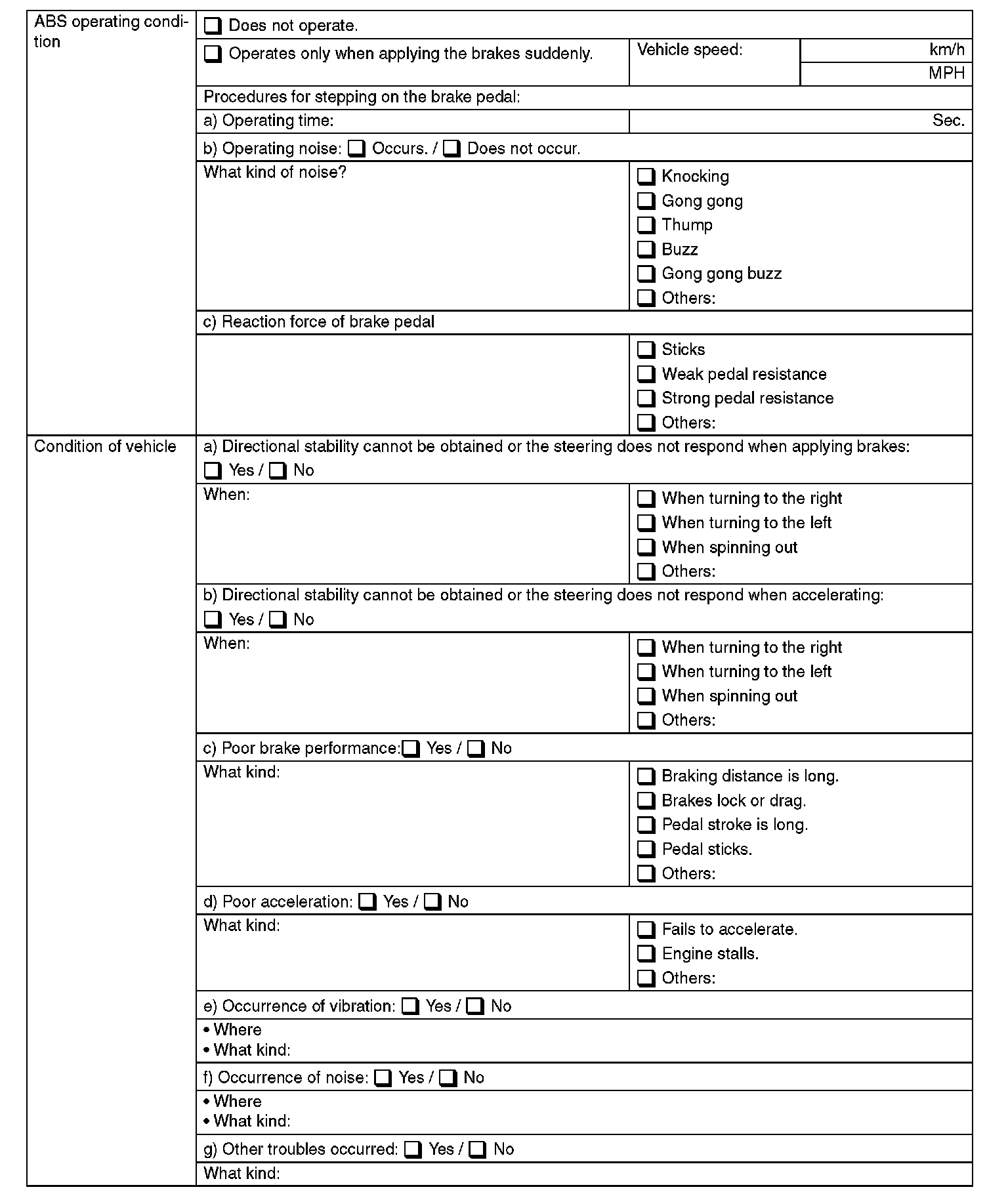

SYMPTOMS

SYMPTOMS:

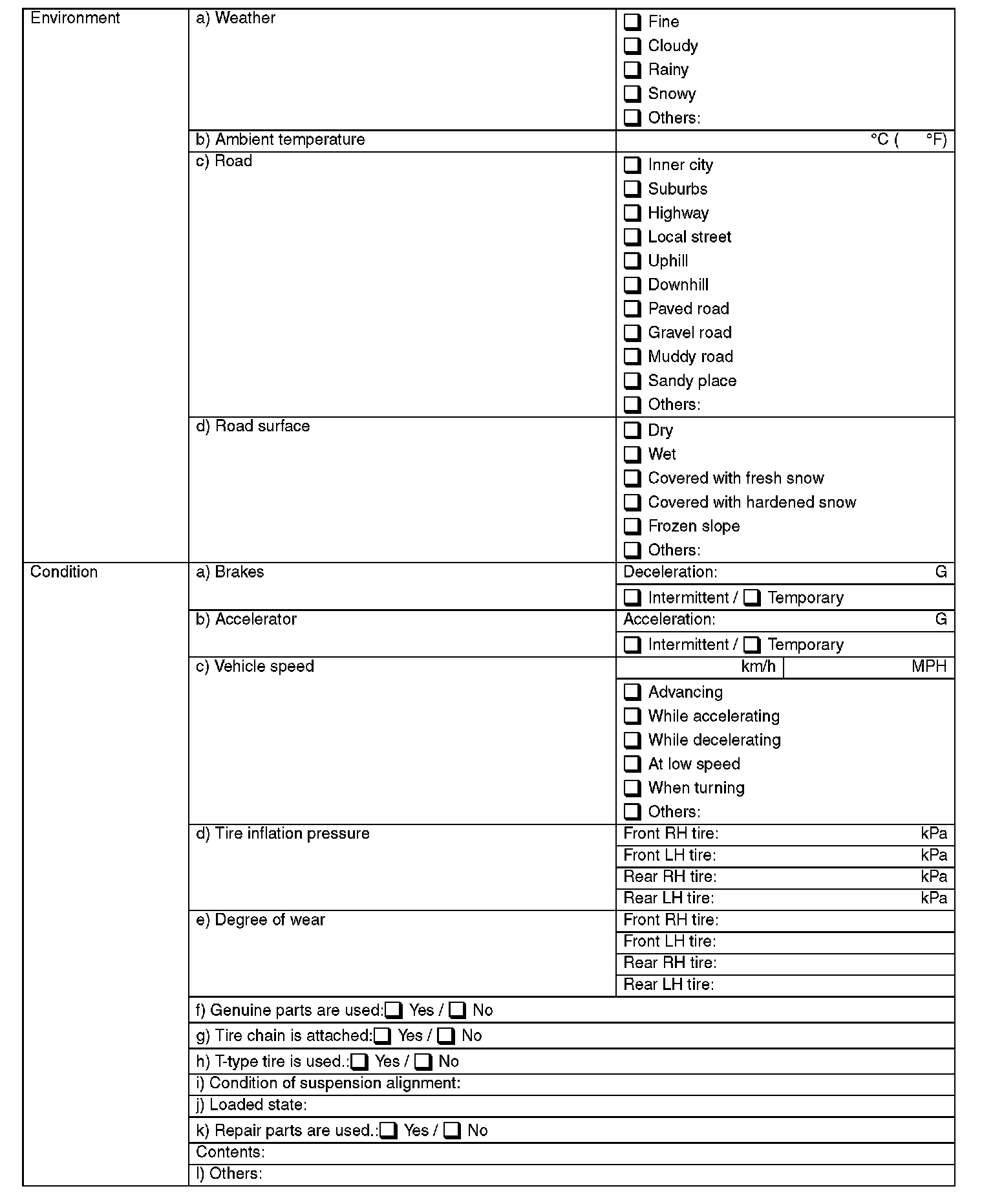

CONDITIONS UNDER TROUBLE OCCURRENCE

CONDITIONS UNDER TROUBLE OCCURRENCE:
