Communication For Initializing Impossible

COMMUNICATION FOR INITIALIZING IMPOSSIBLE

DETECTING CONDITION:
Defective harness connector

TROUBLE SYMPTOM:
Communication is impossible between ABS and Subaru Select Monitor.

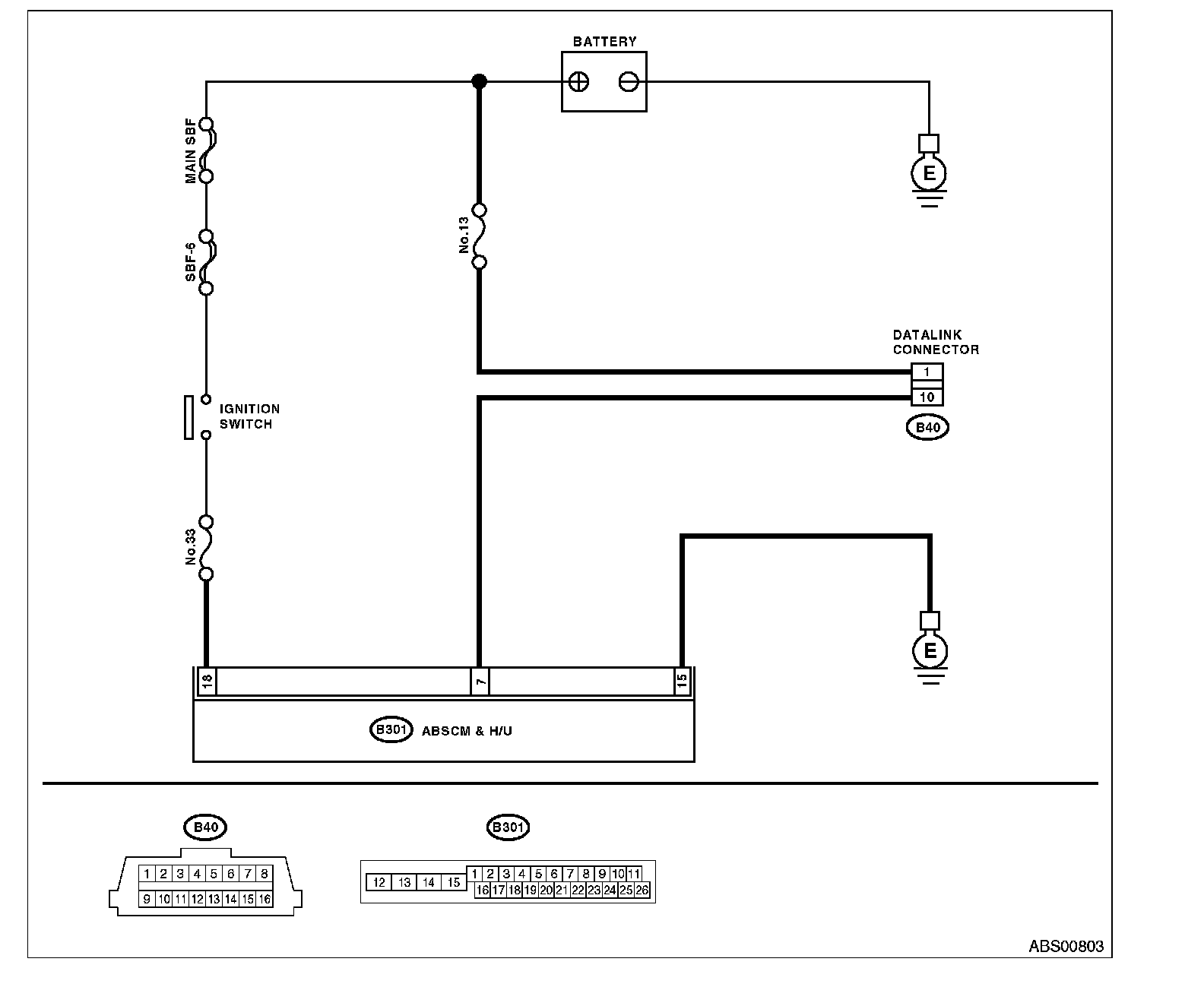

WIRING DIAGRAM:

Wiring Diagram:

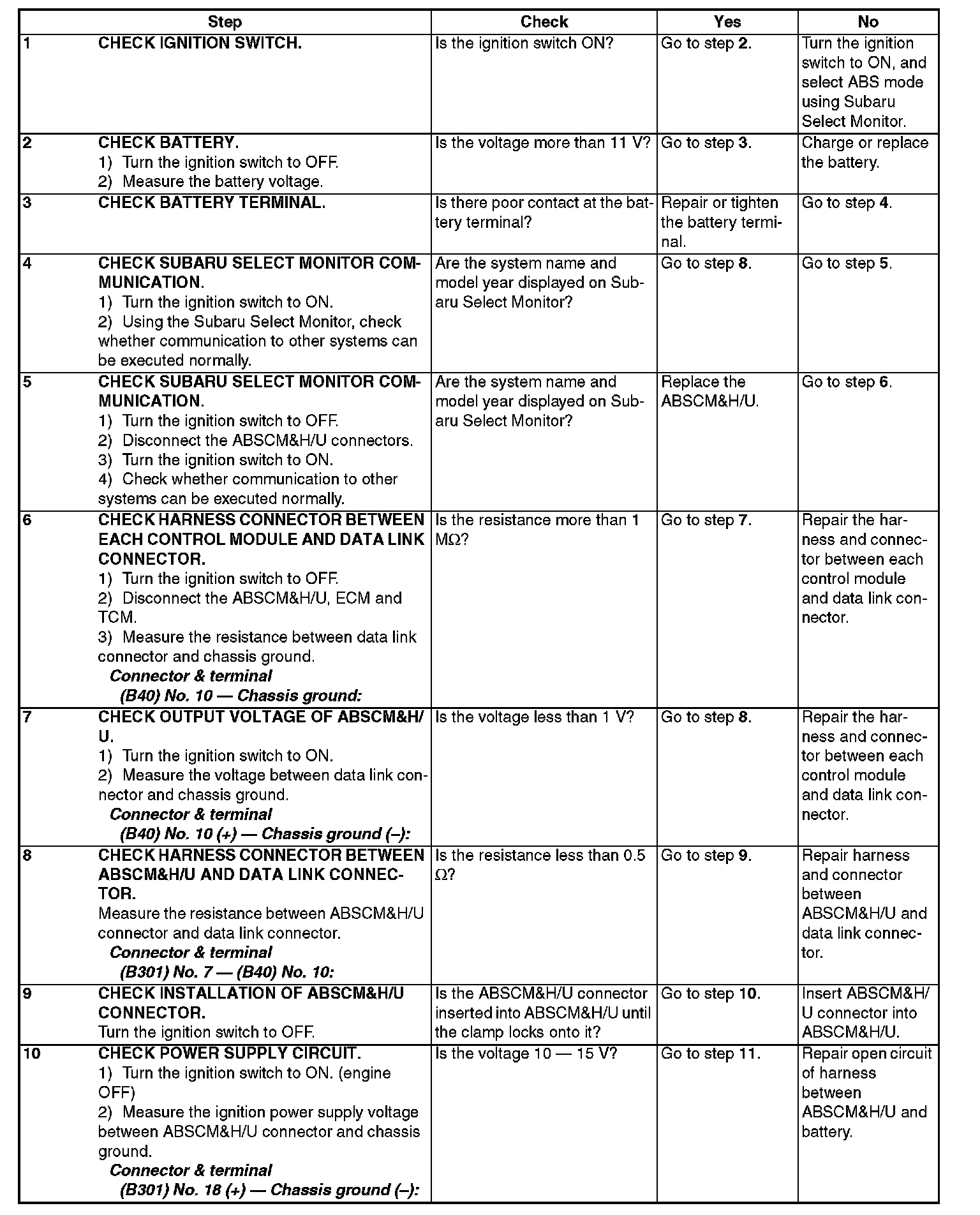

Step 1 - Step 10:

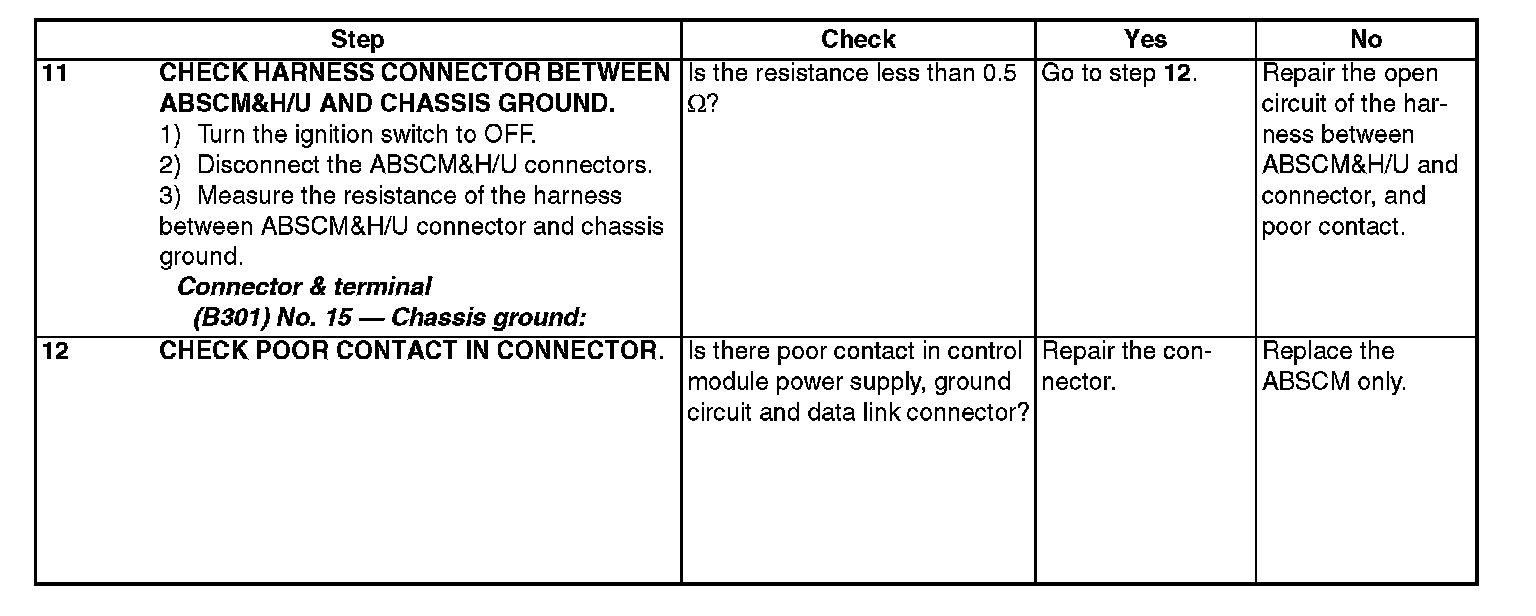

Step 11 - Step 12:
