ABS Warning Light Does Not GO Off

ABS WARNING LIGHT DOES NOT GO OFF

DETECTING CONDITION:
^ Defective combination meter
^ Open circuit of harness

TROUBLE SYMPTOM:
When starting the engine, the ABS warning light is kept on.

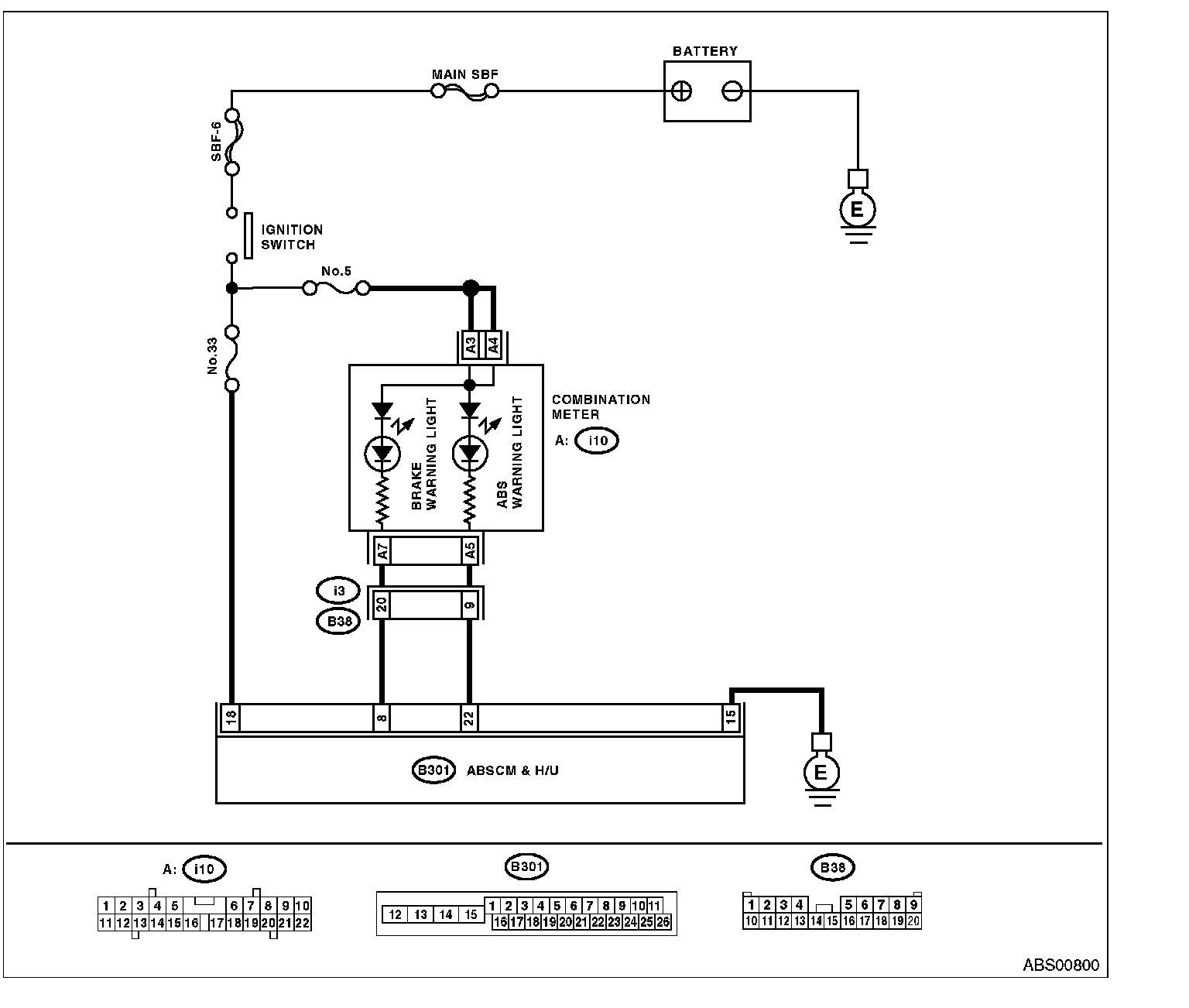

WIRING DIAGRAM:

Wiring Diagram:

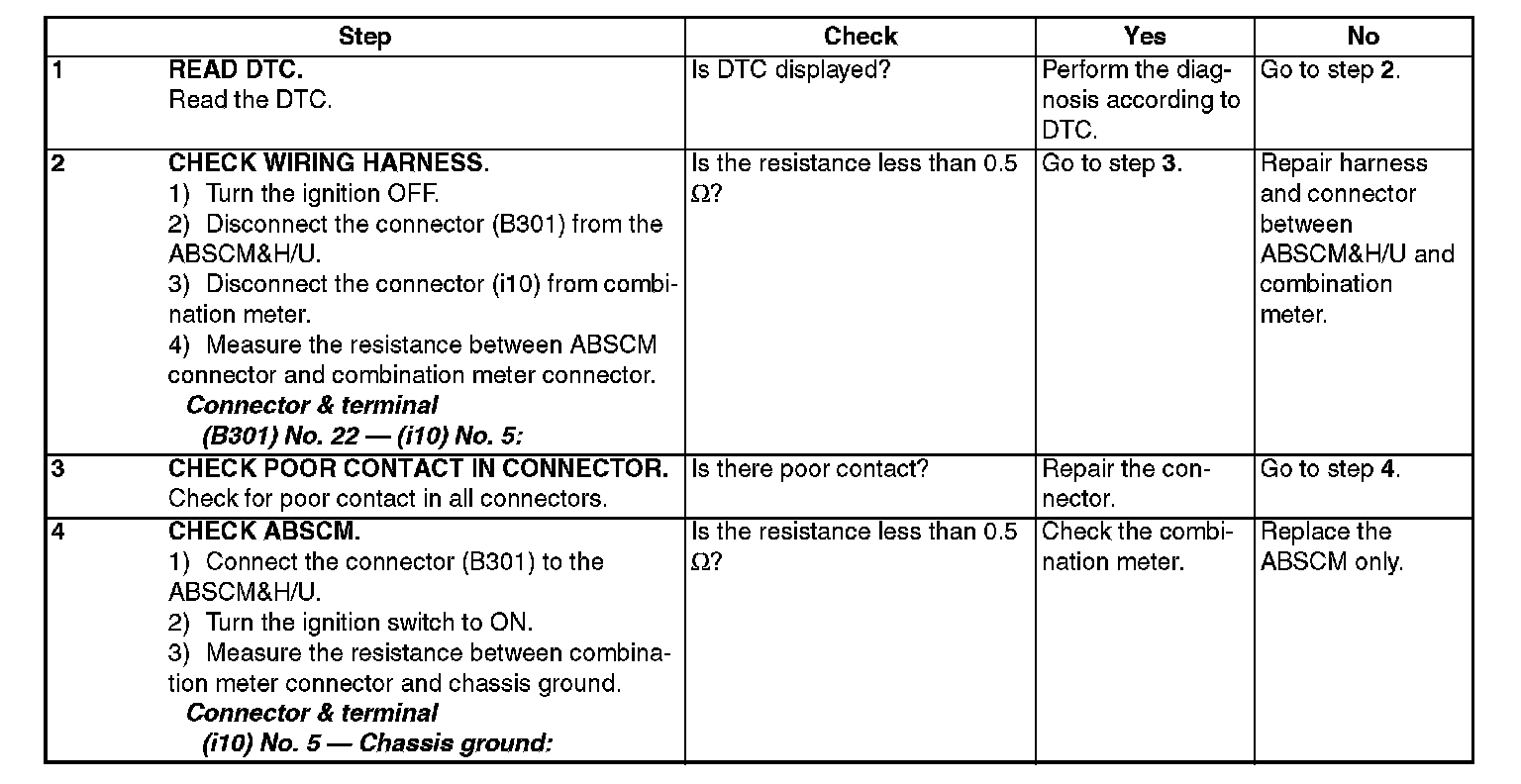

Step 1 - Step 4:
