Trunk / Liftgate Interior Trim Panel: Service and Repair

Rear Gate Trim

Removal

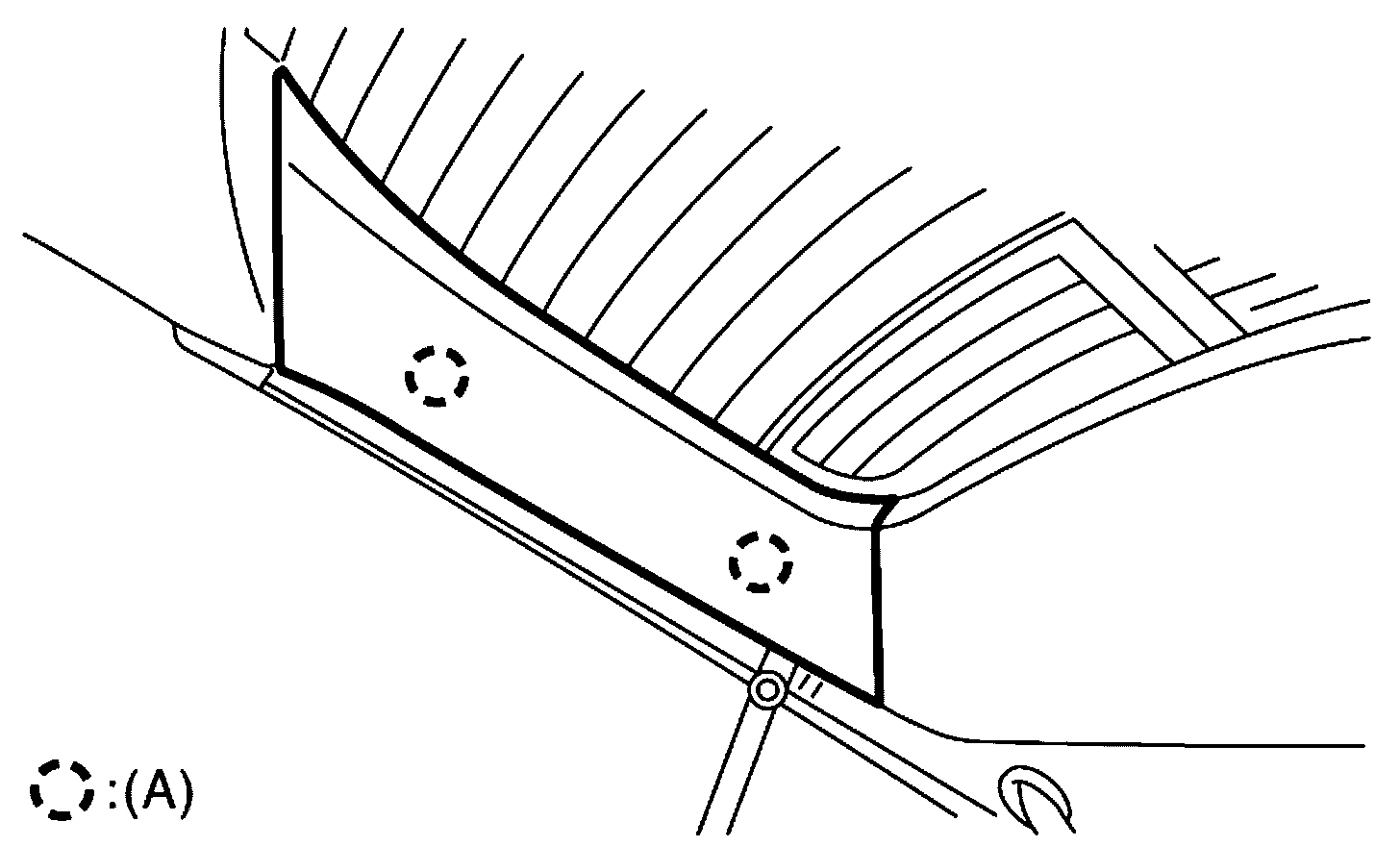

1. Remove clips (A), and remove the rear gate piller trim.

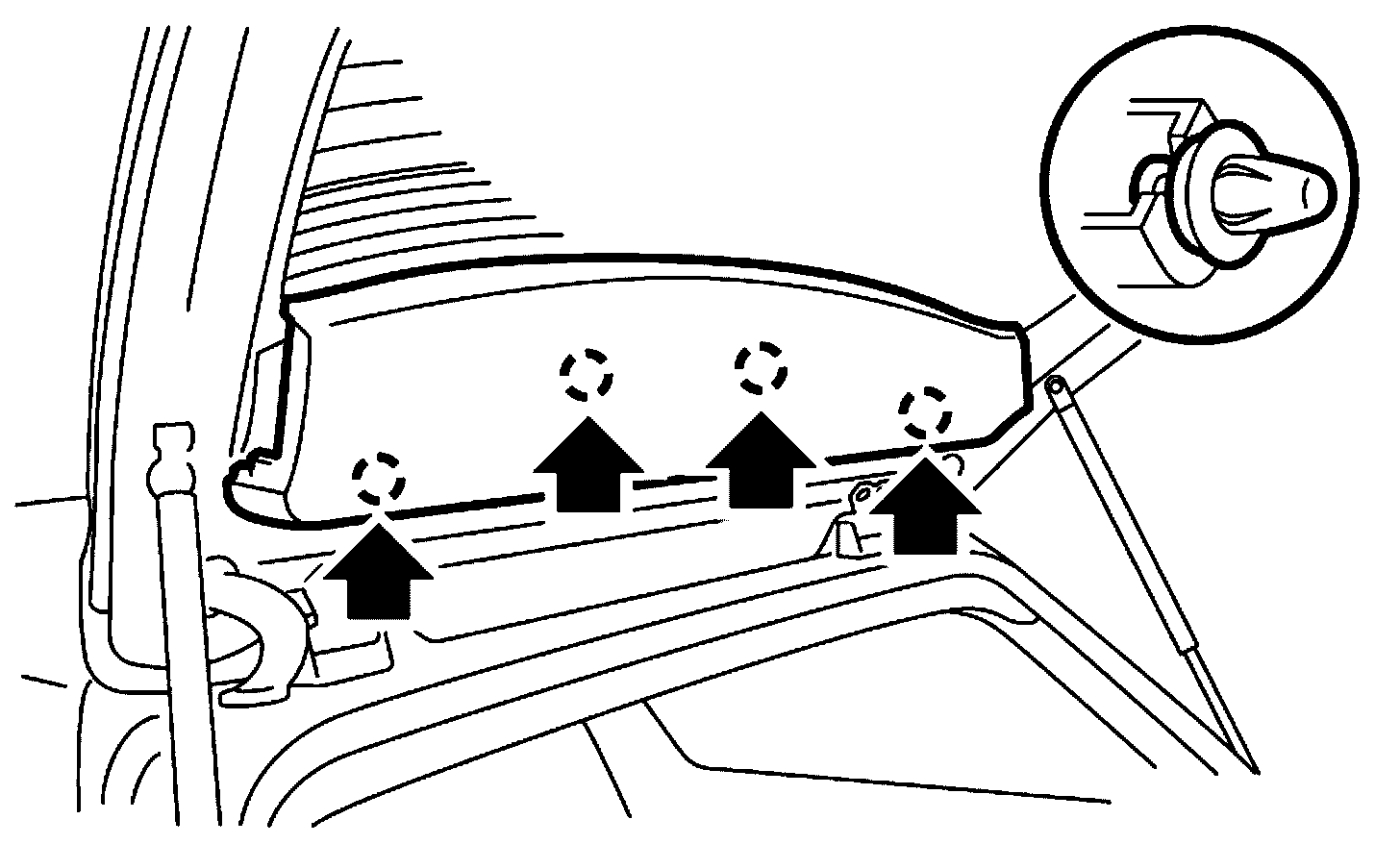

2. Remove the clips and remove the gate upper trim.
3. Remove the cover in the inner handle, and loosen the inside screw.

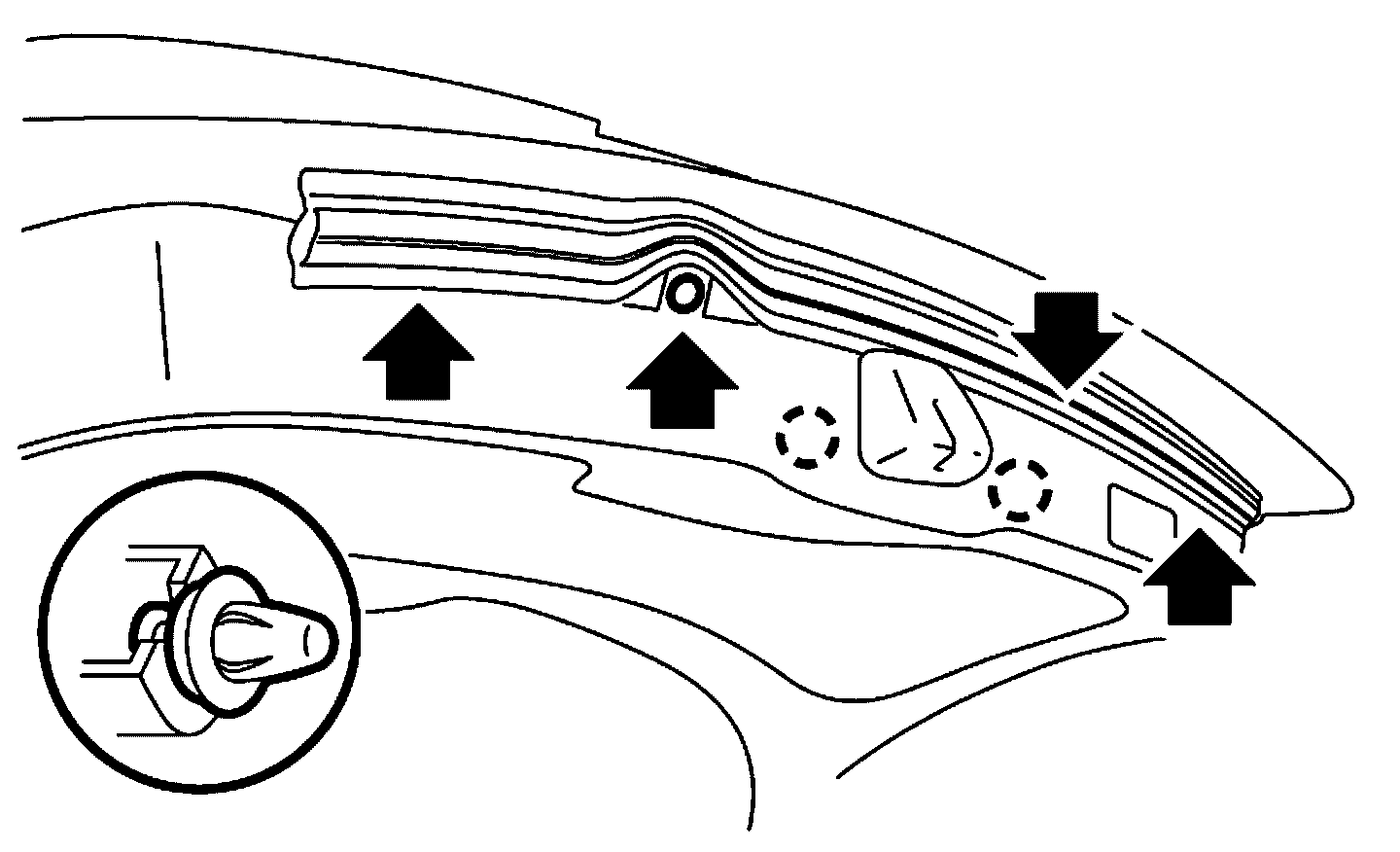

4. Turn over the weather strip, and remove the clips.

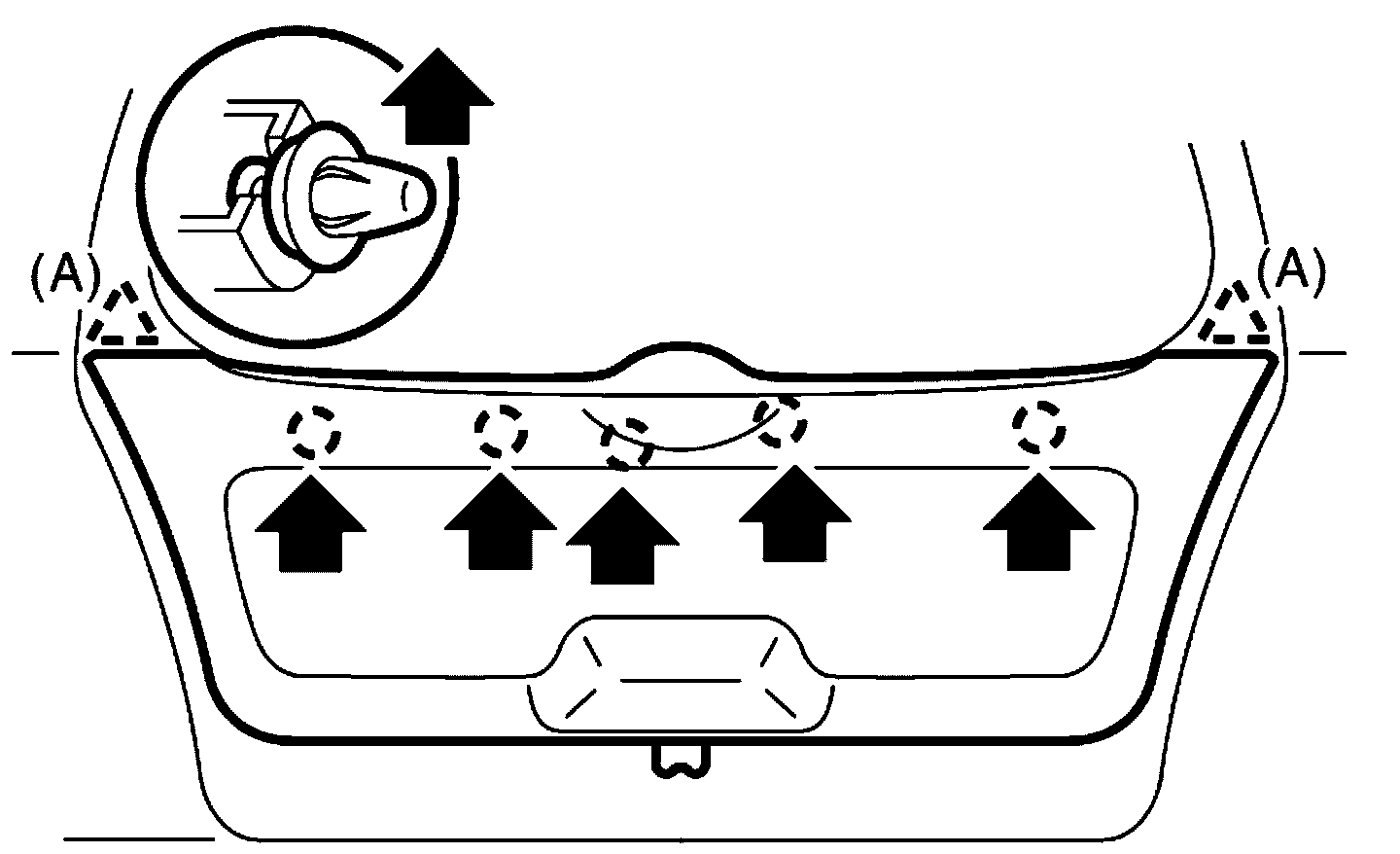

5. Remove the clips (A), and remove the rear gate lower trim.

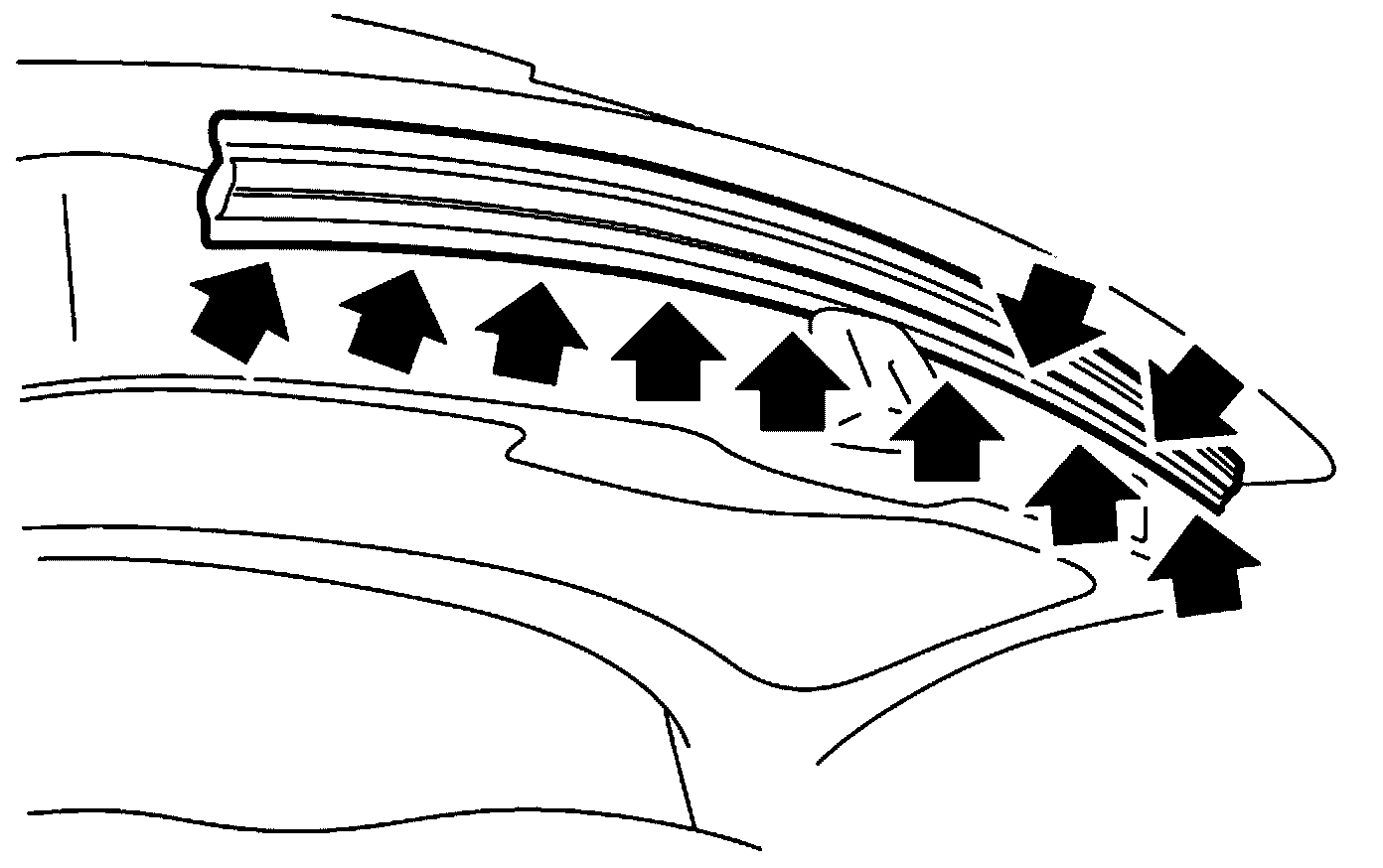

6. Remove the rear gate weather strip.

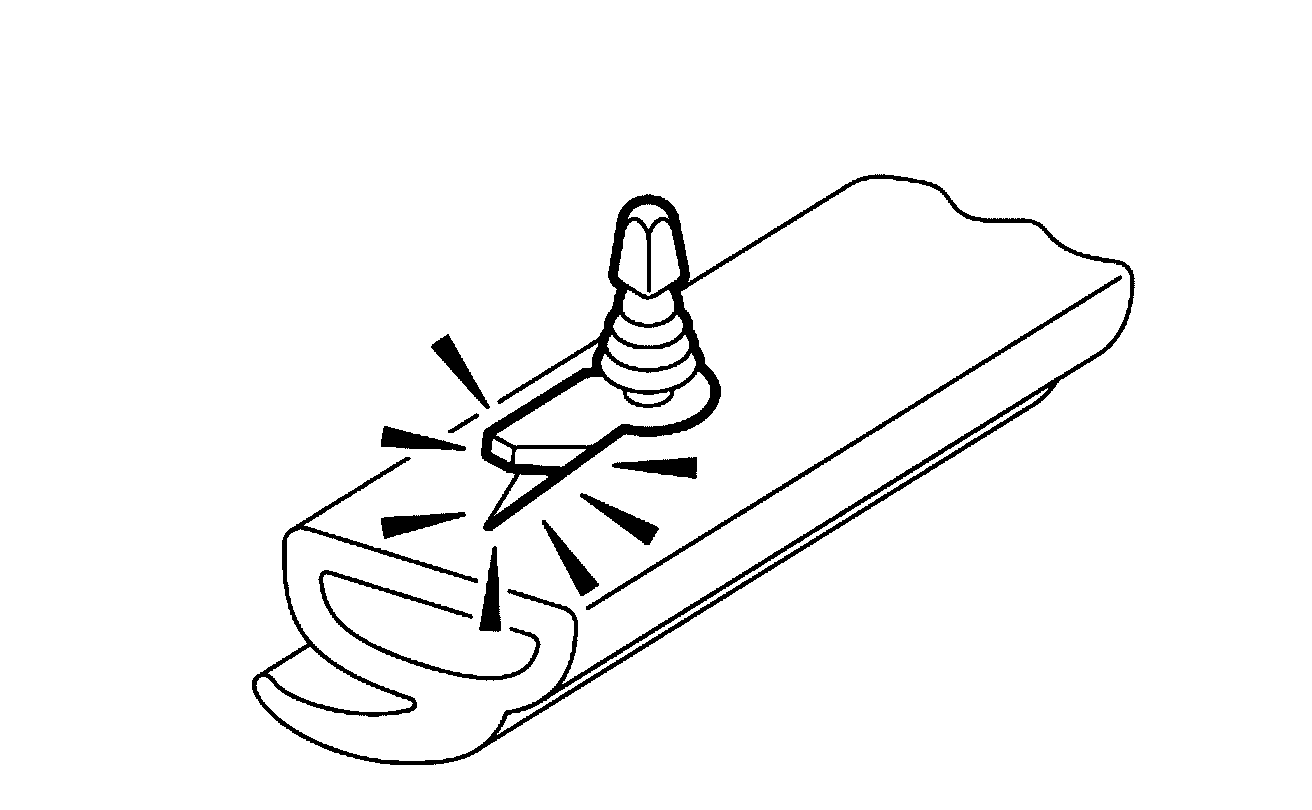

NOTE: If the weather strip clip is removed with excessive force, the weather strip may be dananged. Be sure to us a clip remover to remove.

Installation

Install in the reverse order of removal.
