Remote Control: Service and Repair

STEERING SATELLITE SWITCH

REMOVAL
1. Disconnect the ground cable from battery.
2. Set the tire to the straight-ahead position.
3. Remove the airbag module.

WARNING: If there are airbag modules mounted, always refer to Airbag System when performing airbag module service.

4. Remove the steering wheel.
5. Remove the cover from steering wheel.

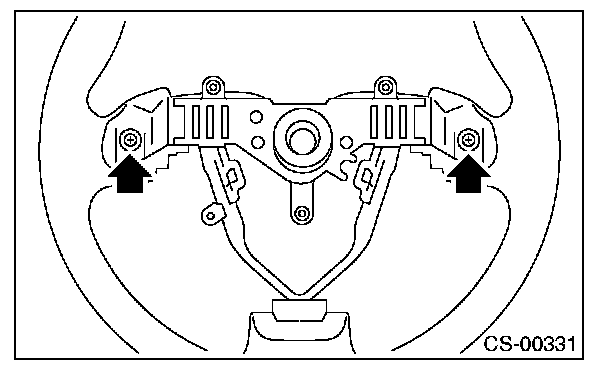

6. Remove 1 satellite switch mounting screws each from the left and right sides.
7. Remove the satellite switch.

INSTALLATION
Install in the reverse order of removal.
