Navigation Display: Service and Repair
NAVIGATION DISPLAYREMOVAL
1. Disconnect the ground cable from the battery.

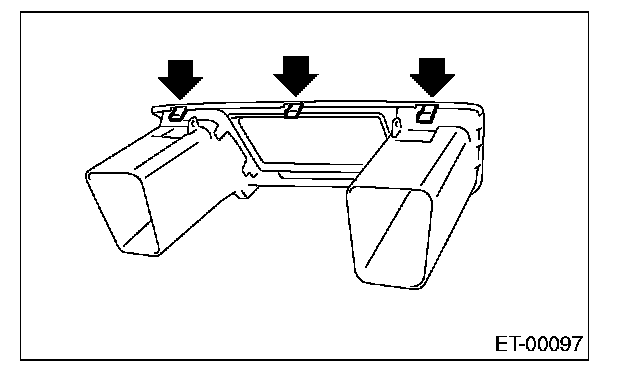

2. Remove the clip, and remove the center upper panel.

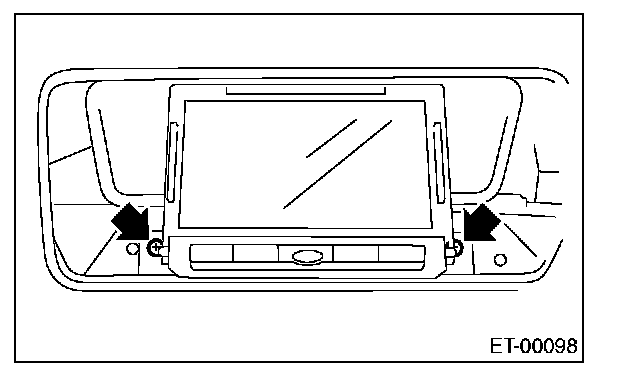

3. Remove the display mounting screws.
4. Disconnect the harness connector and remove the navigation display.
INSTALLATION
Install in the reverse order of removal.
