Global Positioning System Antenna: Service and Repair

GPS ANTENNA

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the combination meter.

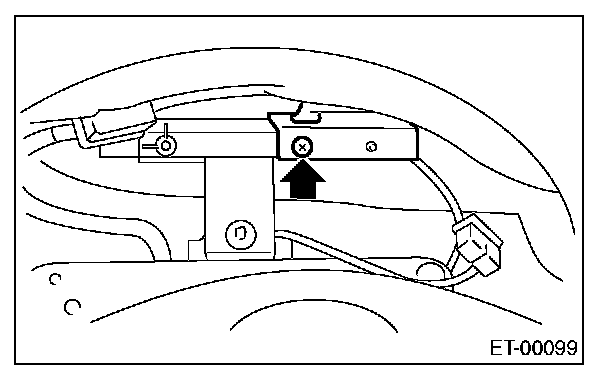

3. Remove the GPS antenna mounting screws to remove the GPS antenna.
4. Remove the audio.

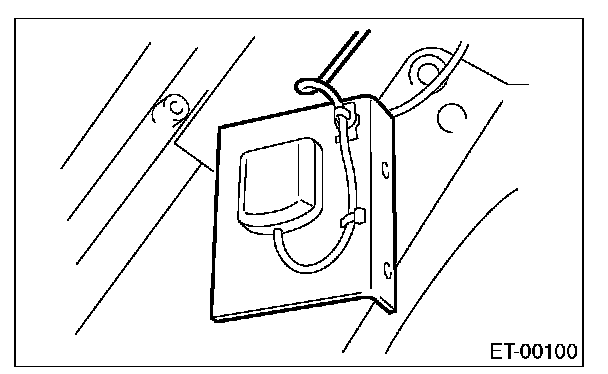

5. Remove the GPS antenna cord connector from the steering support beam stay (on the driver's side).

INSTALLATION
Install in the reverse order of removal.
