C0119

DTC C0119 G SENSOR OUTPUT VOLTAGE MALFUNCTION

DTC DETECTING CONDITION:
Defective G sensor

TROUBLE SYMPTOM:
ABS does not operate.

WIRING DIAGRAM:

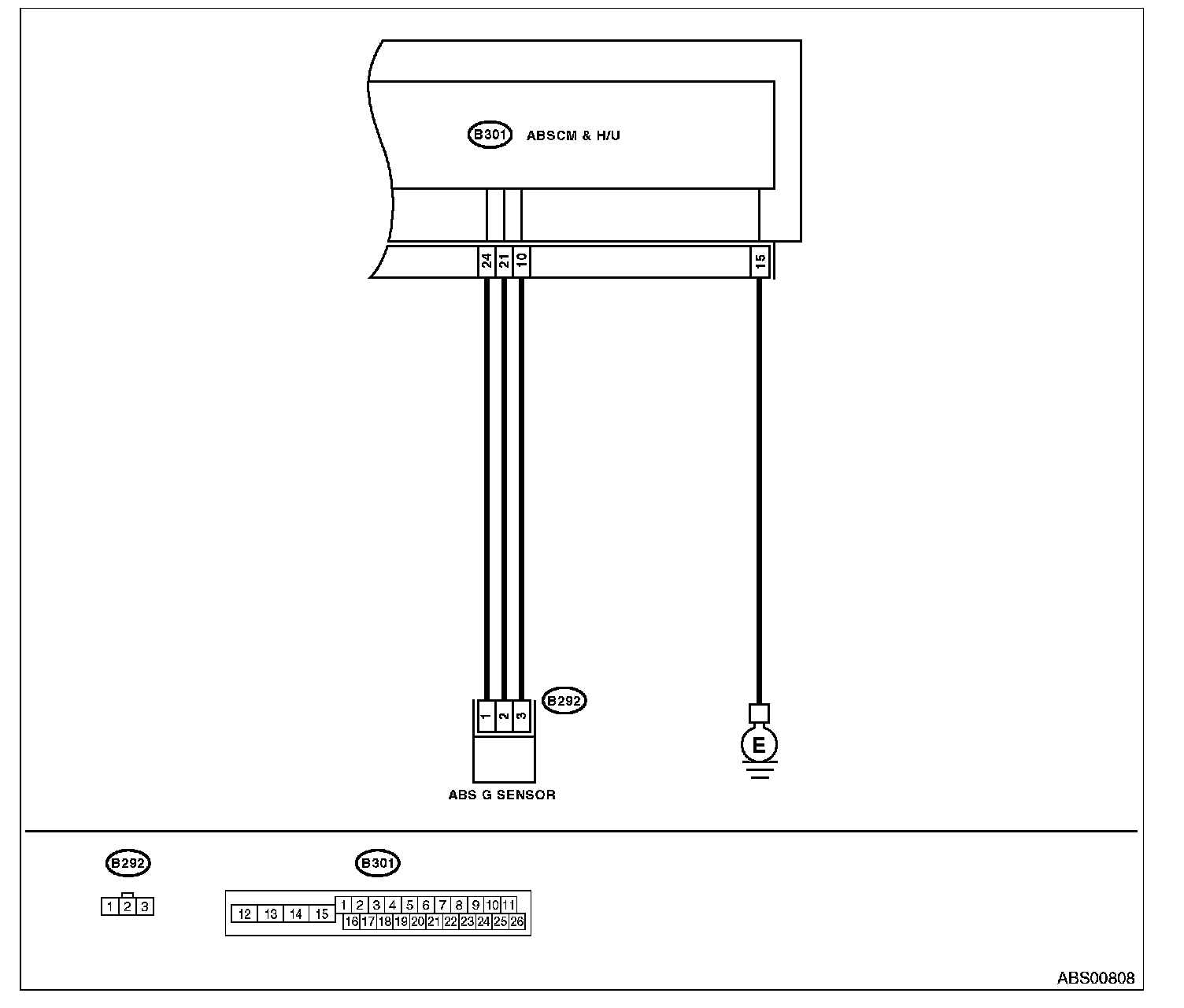

Wiring Diagram:

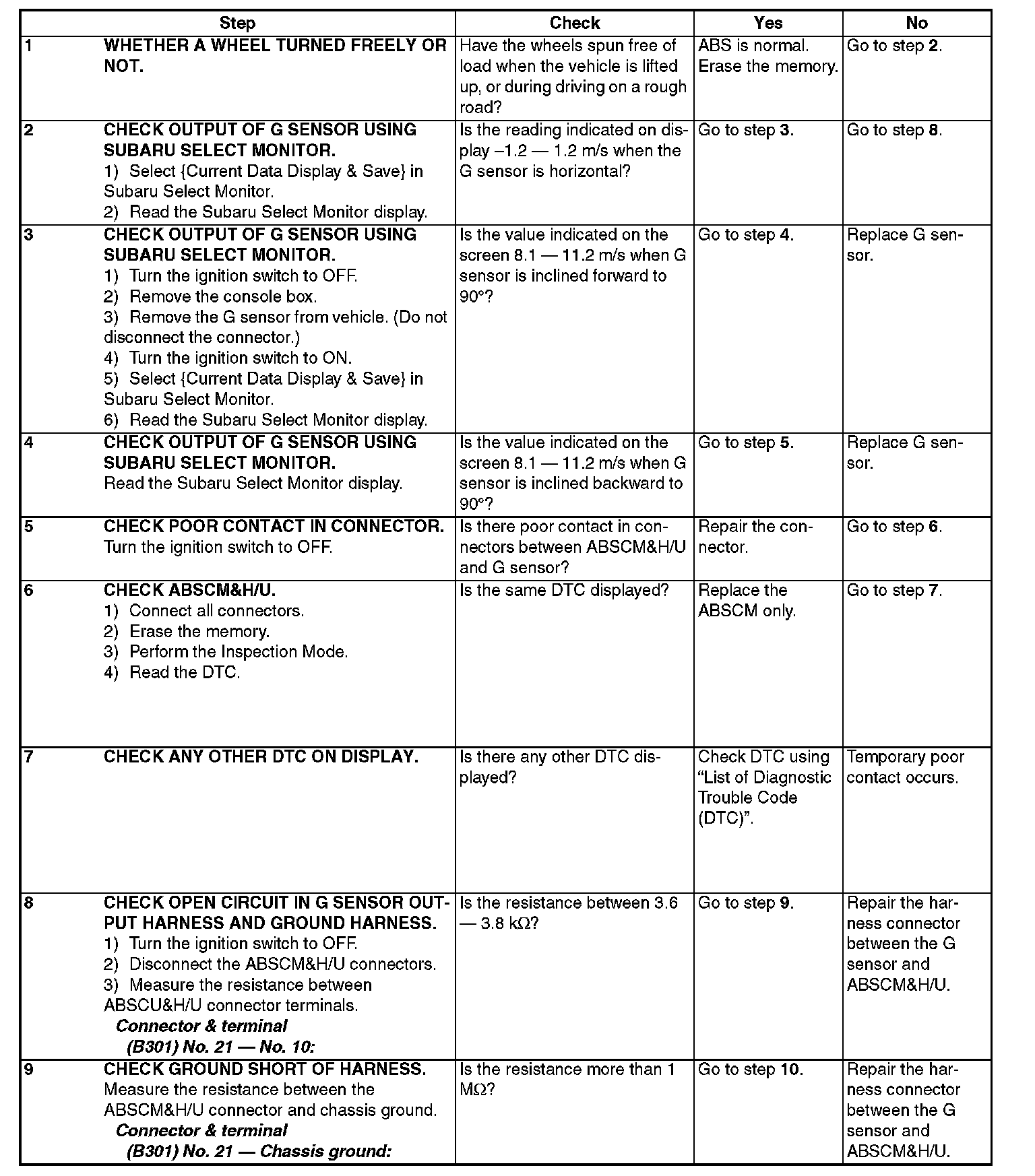

Step 1 - Step 9:

Step 10 - Step 14:
