C0118

DTC C0118 G SENSOR OUTPUT VOLTAGE MALFUNCTION

DTC DETECTING CONDITION:
Defective G sensor

TROUBLE SYMPTOM:
ABS does not operate.

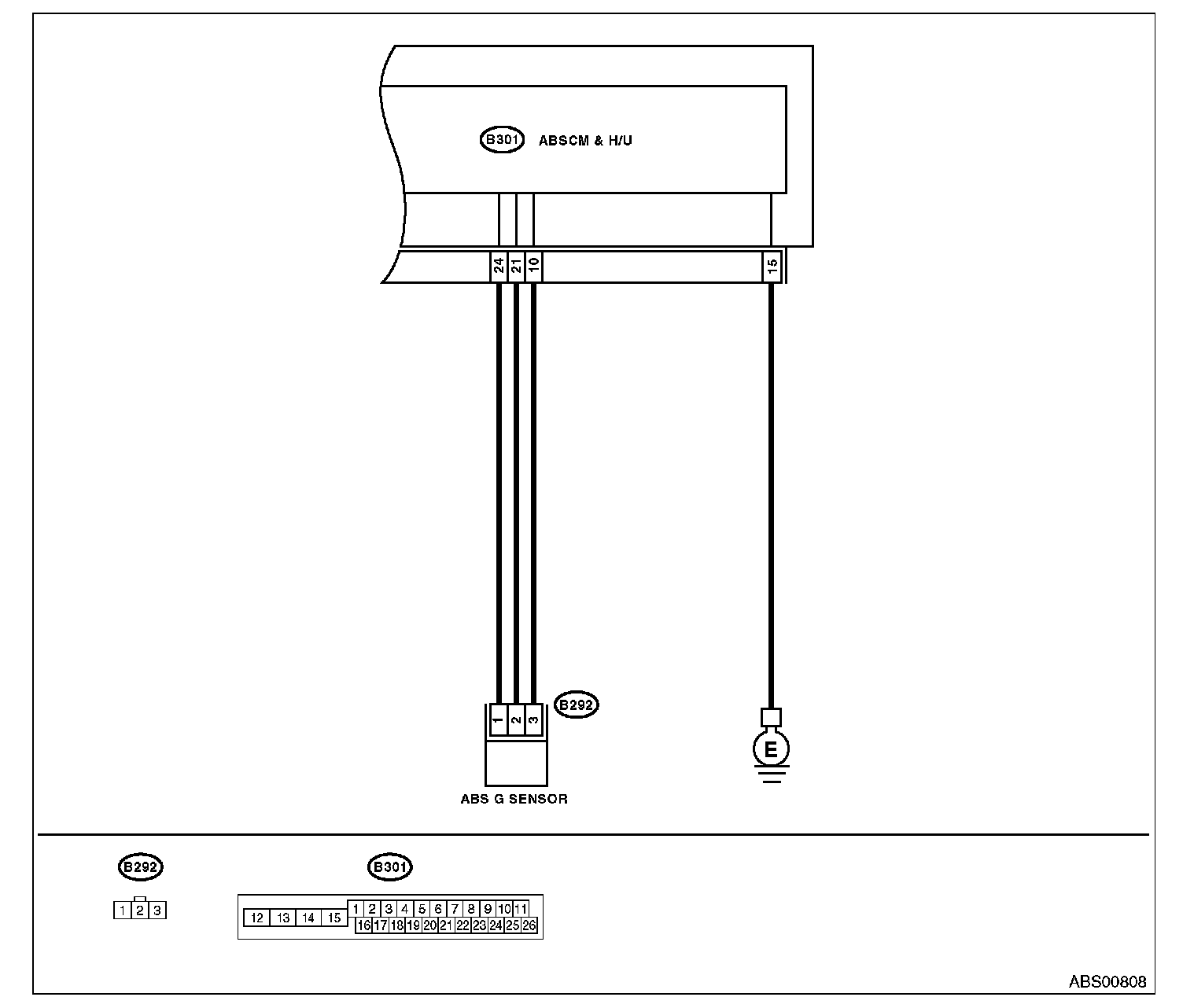

WIRING DIAGRAM:

Wiring Diagram:

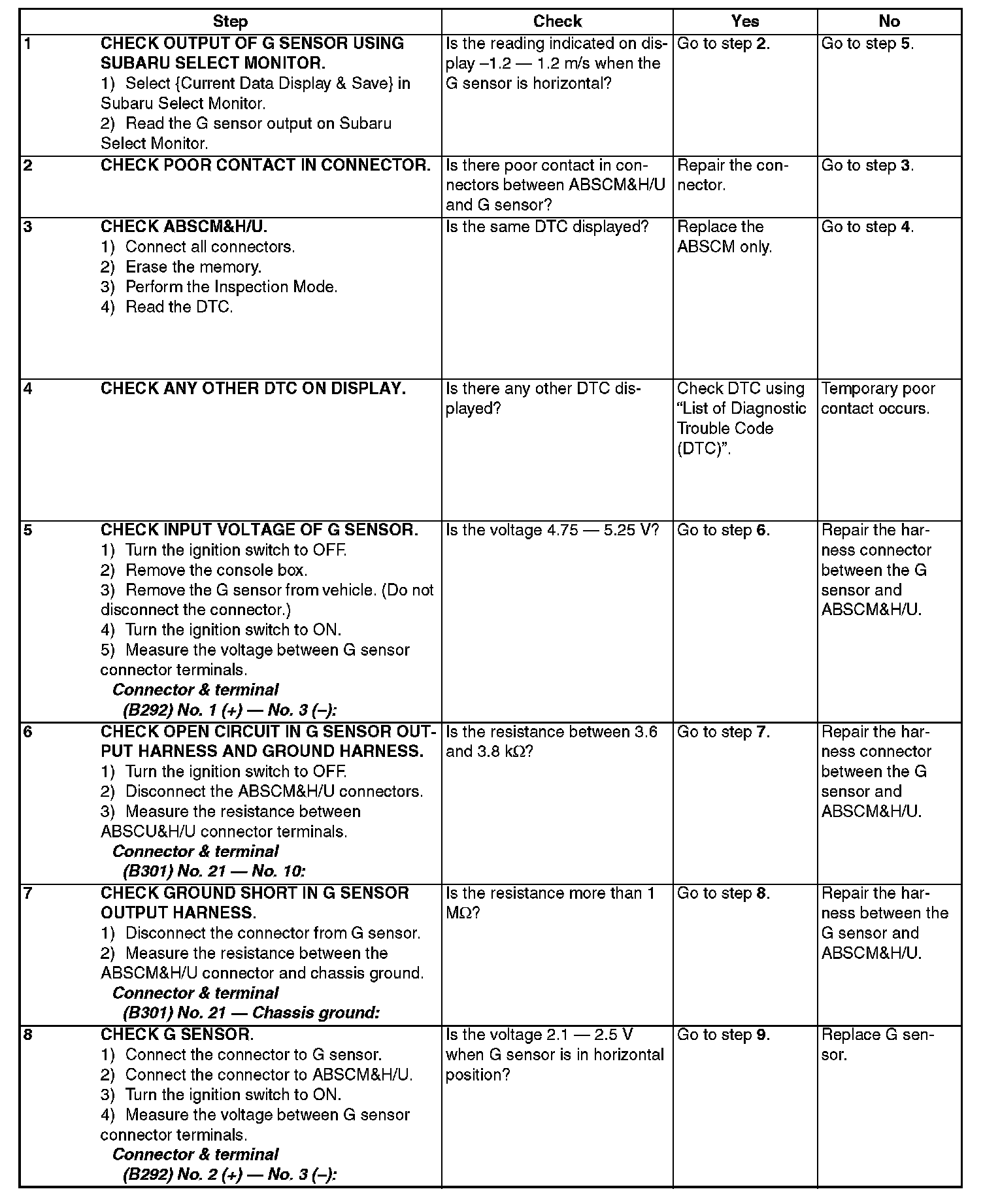

Step 1 - Step 8:

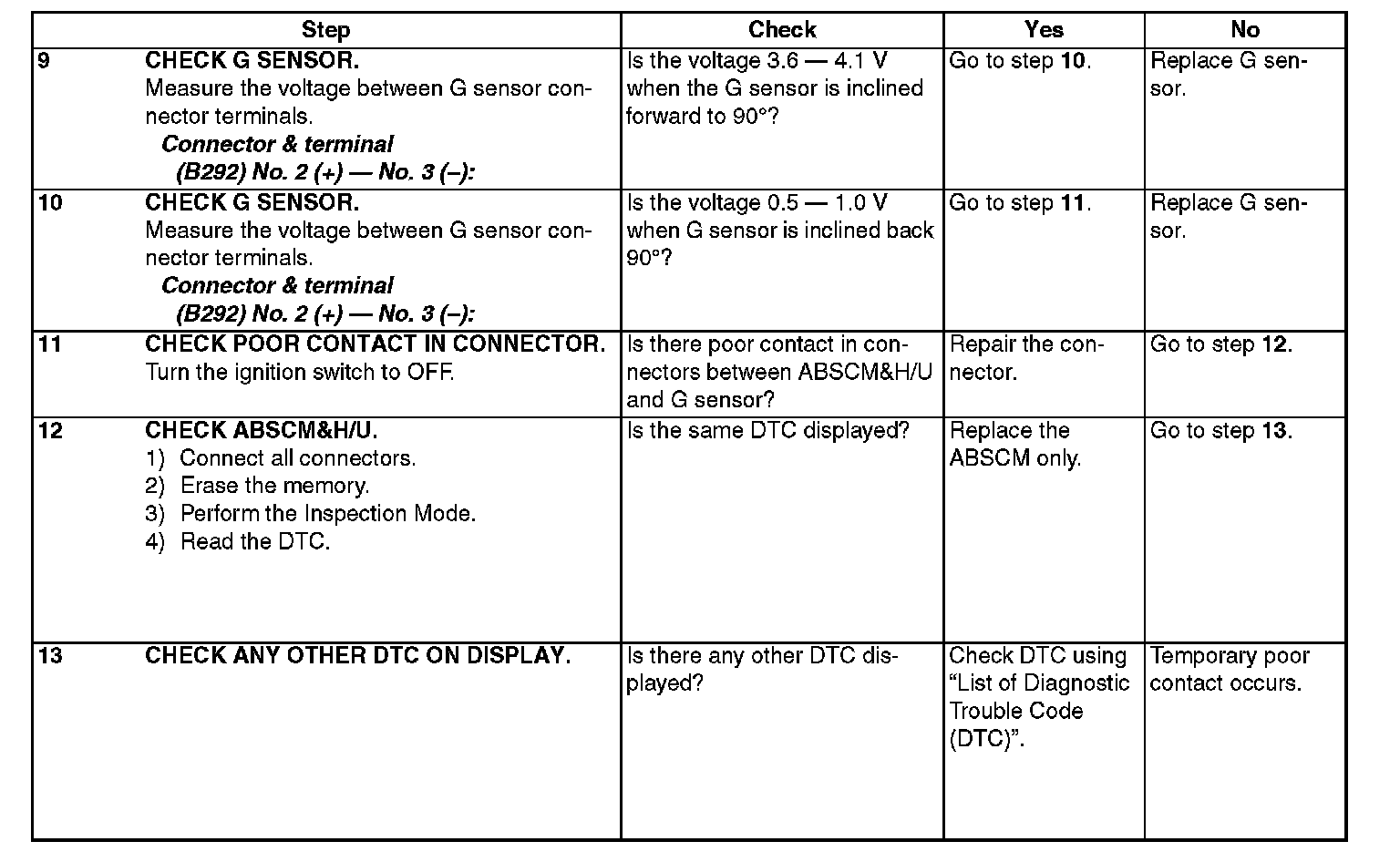

Step 9 - Step 13:
