DTC C0116 FAULTY STOPLIGHT SWITCH
DTC DETECTING CONDITION:
Defective stop light switch

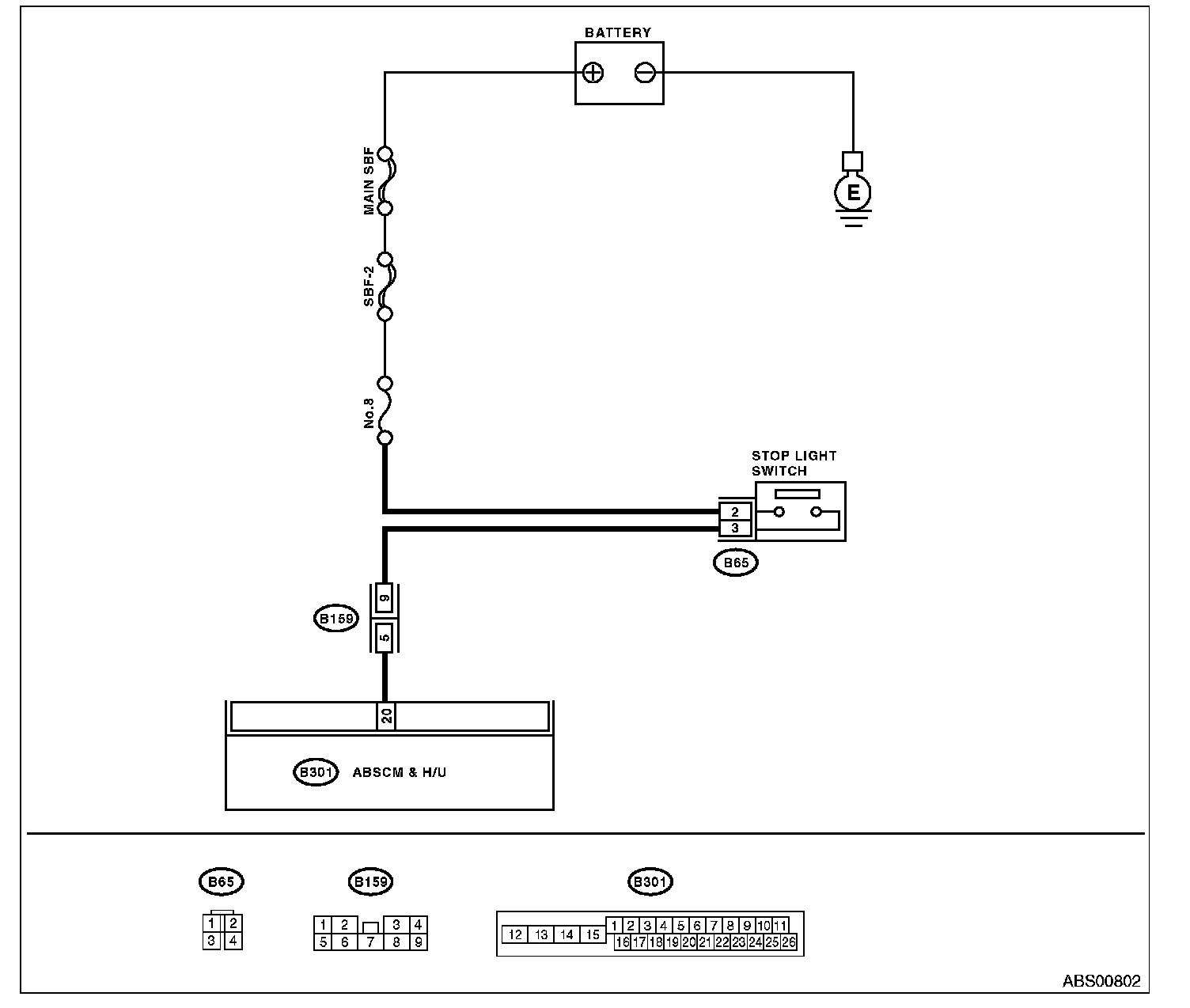

WIRING DIAGRAM:
Wiring Diagram:

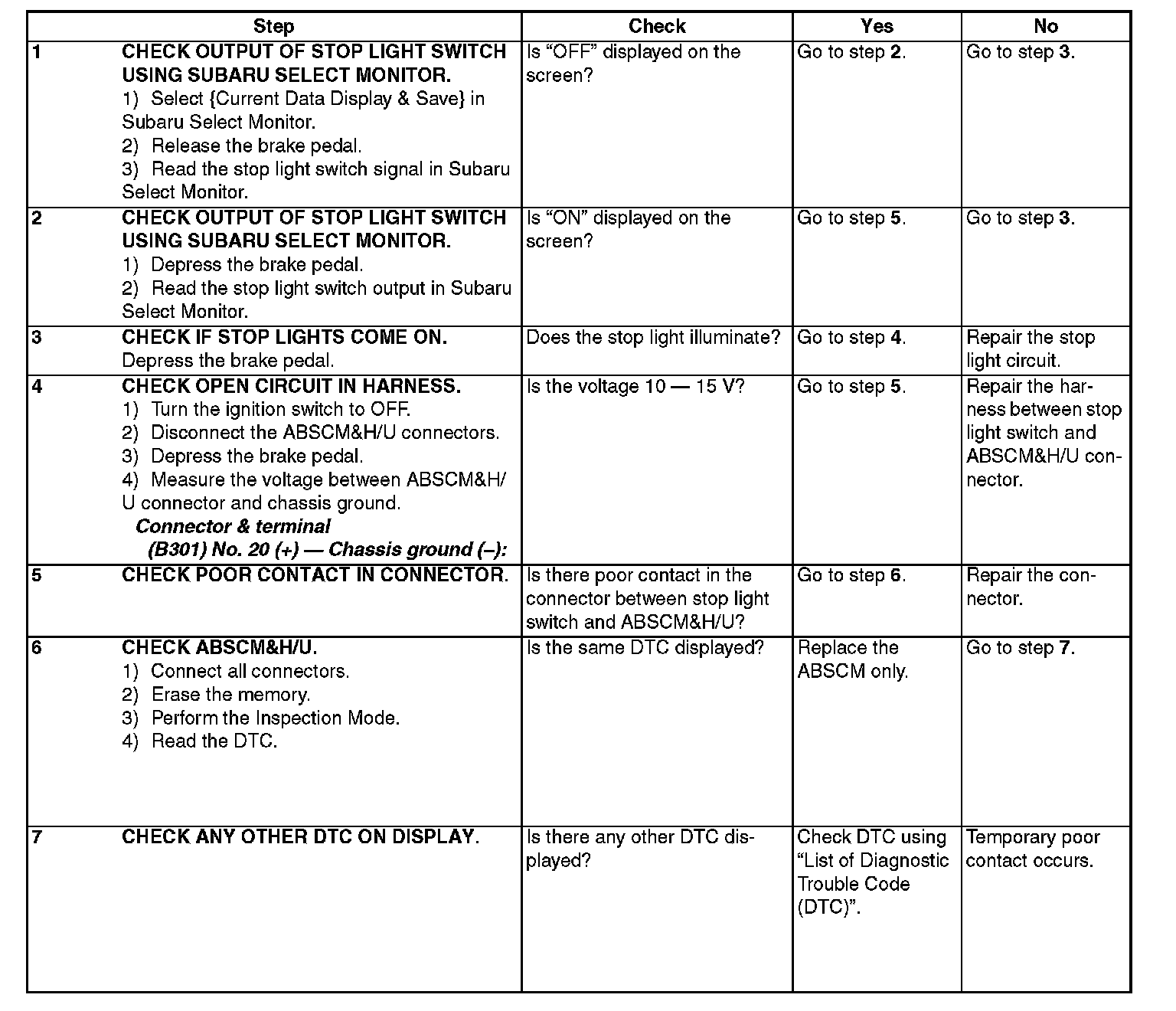

Step 1 - Step 7:
