Initial Inspection and Diagnostic Overview
>>
Basic Diagnostic Procedure
>>
2.5L SOHC
2.5L SOHC

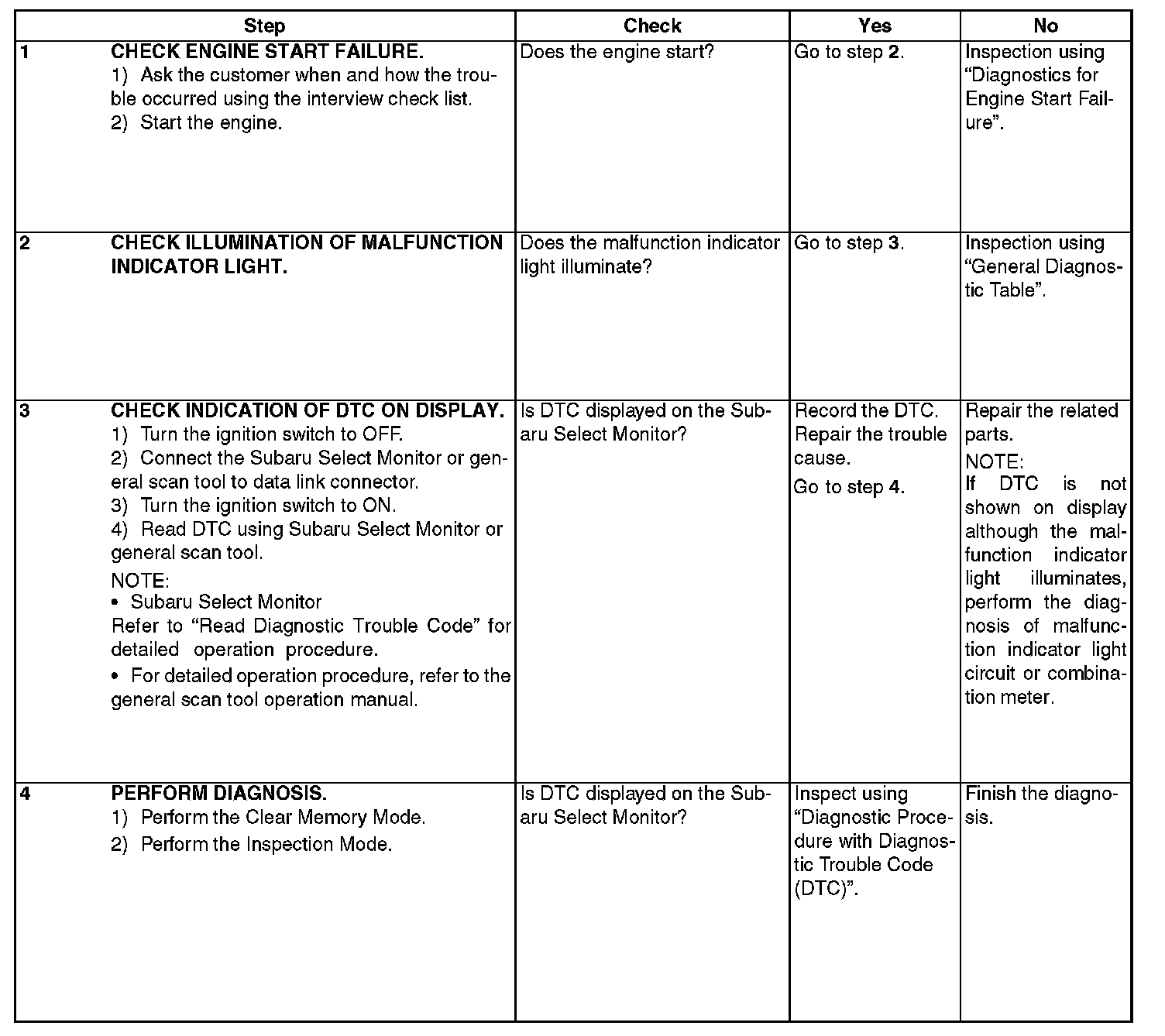

Basic Diagnostic Procedure
PROCEDURE
Step 1 - 4:
ENGINE
