Rear Oxygen Sensor

Rear Oxygen Sensor

REMOVAL

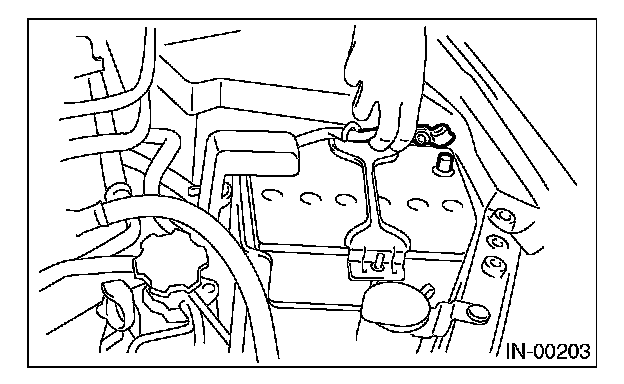

1. Disconnect the ground cable from battery.
2. Lift-up the vehicle.
3. Disconnect the connector from rear oxygen sensor.
4. Apply spray-type lubricant to the threaded portion of rear oxygen sensor, and leave it for one minute or more.

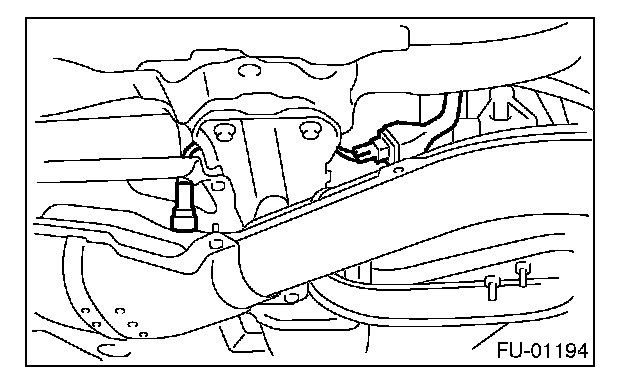

5. Remove the rear oxygen sensor.

CAUTION: When removing the rear oxygen sensor, wait until exhaust pipe cools, otherwise it will damage exhaust pipe.

INSTALLATION
1. Before installing rear oxygen (A/F) sensor, apply anti-seize compound only to the threaded portion of rear oxygen (A/F) sensor to make the next removal easier.

Anti-seize compound: SS-30 JET LUBE

CAUTION: Never apply anti-seize compound to protector of rear oxygen sensor.

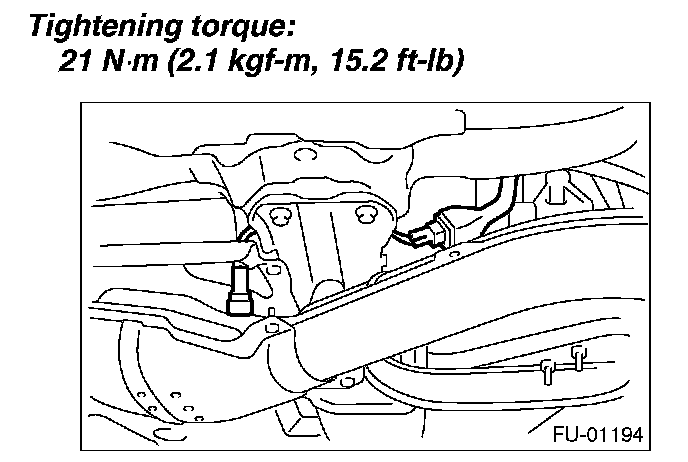

2. Install the rear oxygen sensor.
3. Connect the connector to rear oxygen sensor.
4. Lower the vehicle.

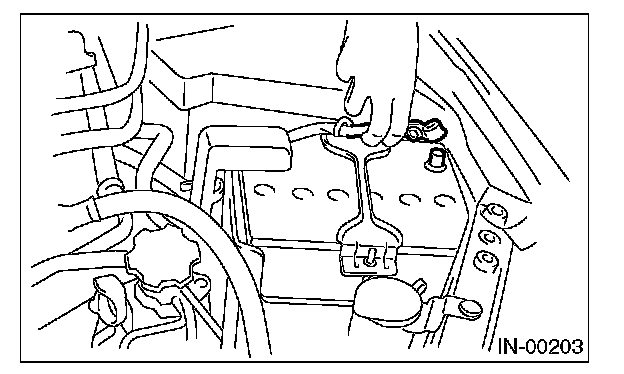

5. Connect the battery ground cable to battery.
