Throttle Body: Service and Repair

Throttle Body

REMOVAL
1. Remove the collector cover.




2. Disconnect the ground cable from battery.
3. Remove the intercooler.




4. Disconnect the connectors from throttle position sensor.

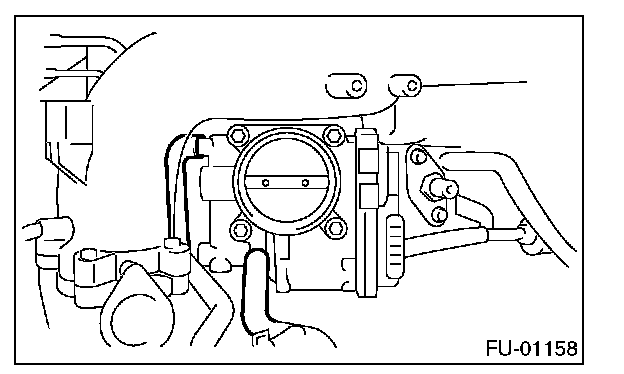

5. Disconnect the engine coolant hose from throttle body.

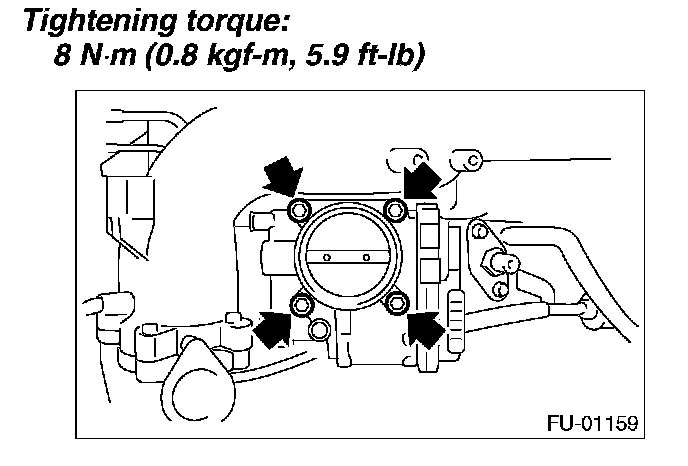

6. Remove the bolts which secure throttle body to intake manifold.

INSTALLATION




Install in the reverse order of removal.

NOTE: Always use new O-rings.
