Evaporative Emission Control Canister: Service and Repair

Canister

REMOVAL




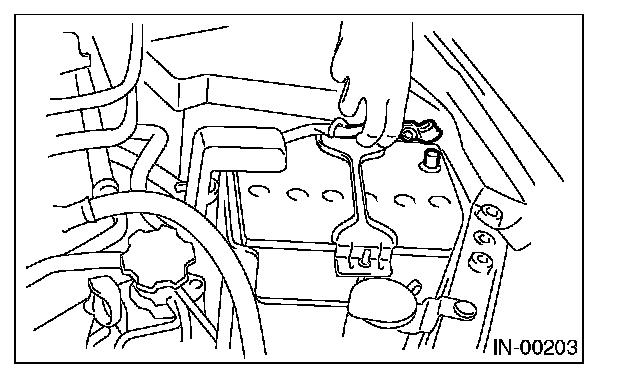

1. Disconnect the ground cable from battery.
2. Lift-up the vehicle.
3. Remove the rear wheel LH.
4. Remove the rear mud guard LH.

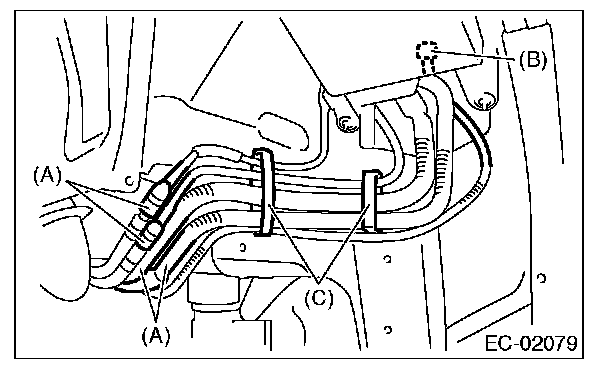

5. Disconnect quick connector (A).
6. Disconnect the drain valve connector (B).




7. Remove clip (C).

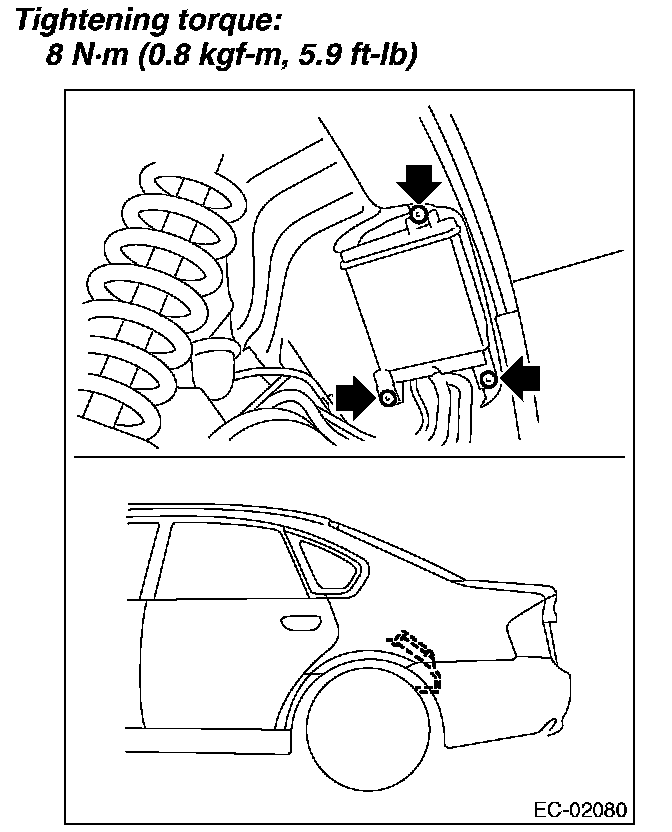

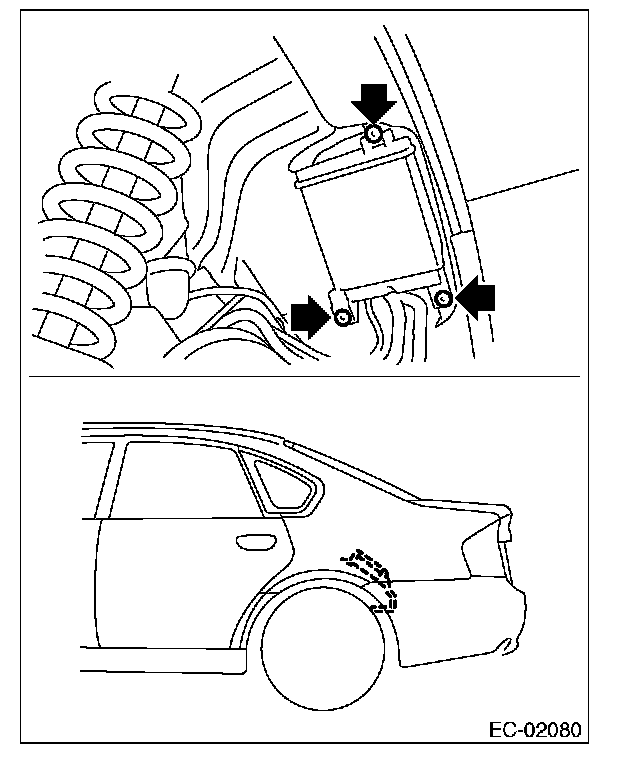

8. Remove the canister from body.

INSTALLATION




Install in the reverse order of removal.

NOTE: Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
