Canister Purge Solenoid: Service and Repair

Purge Control Solenoid Valve

REMOVAL
1. Remove the collector cover.

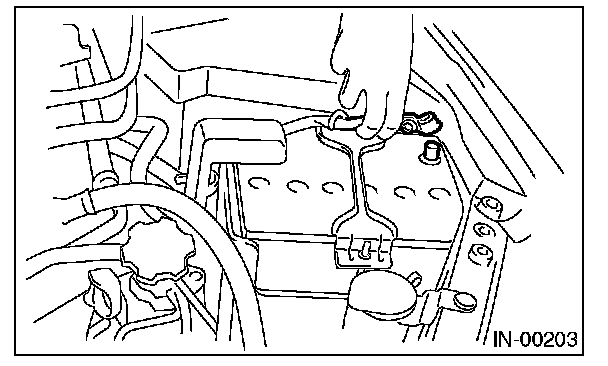

2. Disconnect the ground cable from battery.




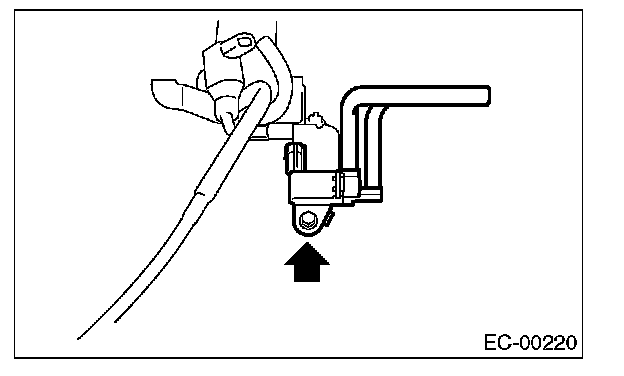

3. Remove the solenoid valve bracket assembly from intake manifold.
4. Disconnect the connector from purge control solenoid valve.
5. Disconnect the evaporation hose from the intake manifold and fuel pipe assembly.




6. Remove the purge control solenoid valve from the solenoid valve bracket assembly.

INSTALLATION




Install in the reverse order of removal.

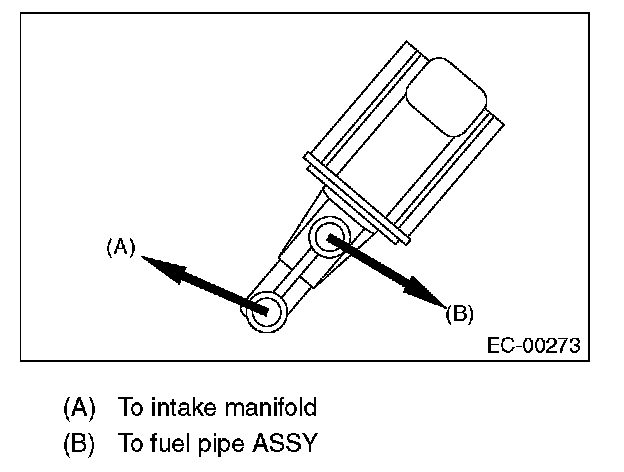

NOTE: Connect the evaporation hose as shown in the figure.
