Reservoir Tank

REMOVAL

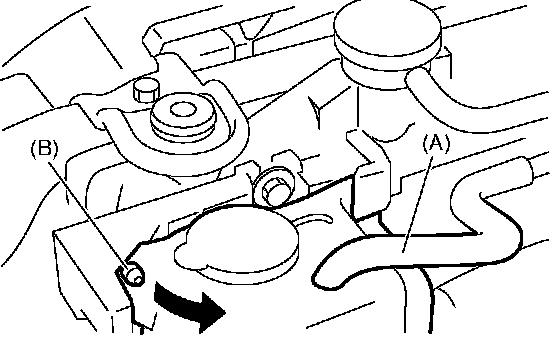

1. Remove the collector cover.
2. Disconnect the over flow hose (A).





3. Pull out the reservoir tank to the arrow direction while pushing the claw (B).

INSTALLATION
Install in the reverse order of removal.

INSPECTION
Make sure the engine coolant level is between "FULL" and "LOW".
