Air Cleaner Housing: Service and Repair

Air Cleaner Case

REMOVAL
1. Remove the air intake duct.
2. Remove the air cleaner element.

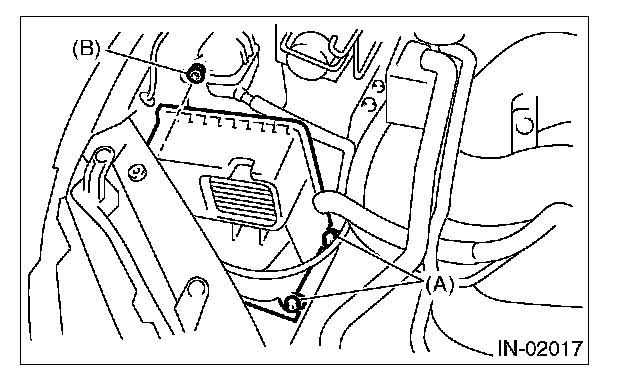

3. Remove the bolts (A) and nut (B) which install air cleaner case (front) on the body.
4. Remove the air cleaner case (front).

INSTALLATION
Install in the reverse order of removal.

Tightening torque:
Bolt: 6.0 N.m (0.61 kgf-m, 4.4 ft-lb)
Nut: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)
