V-Belt

REMOVAL

NOTE: Perform the following procedures with the engine installed to the body.

FRONT SIDE BELT
1. Remove the collector cover.





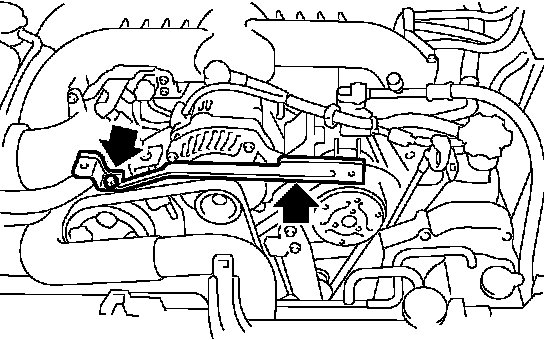

2. Remove the V-belt covers.

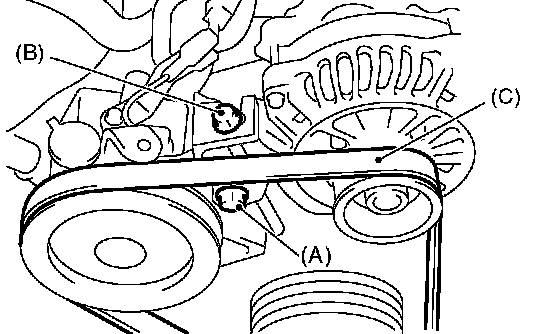

3. Loosen the lock bolt (A).
4. Loosen the slider bolt (B).





5. Remove the front side belt (C).

REAR SIDE BELT

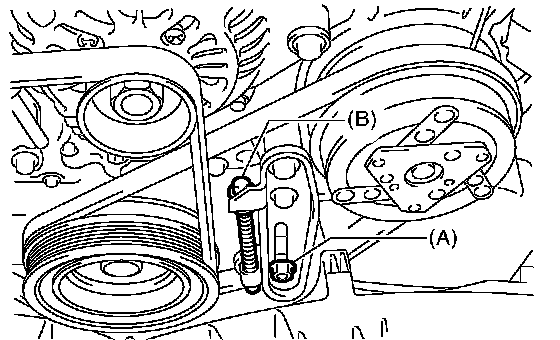

1. Loosen the lock nut (A).





2. Loosen the slider bolt (B).
3. Remove the A/C belt.

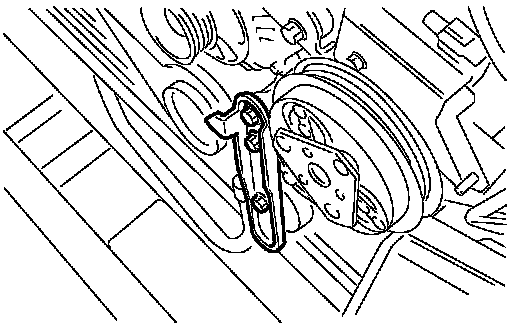

4. Remove the A/C belt tensioner.

INSTALLATION

NOTE: Wipe off any oil or water on the belt and pulley.

FRONT SIDE BELT
1. Install a V-belt (C), and tighten the slider bolt so as to obtain the specified belt tension.
2. Tighten the lock bolt (A).





3. Tighten the slider bolt (B).

REAR SIDE BELT
1. Remove the A/C belt tensioner.
2. Install a V-belt, and tighten the slider bolt (B) so as to obtain the specified belt tension.

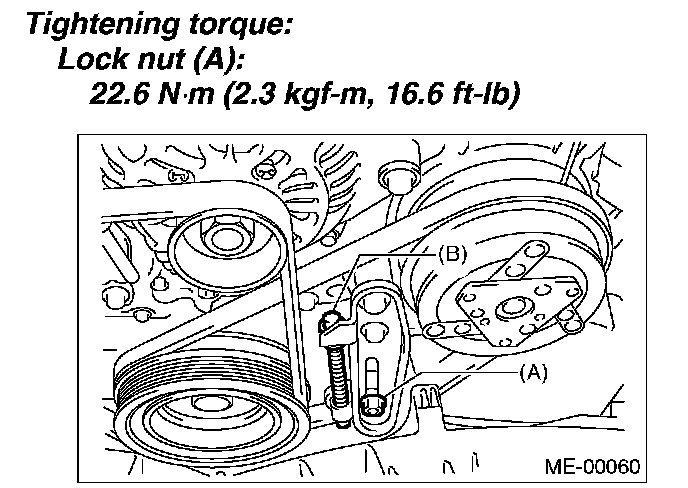

3. Tighten the lock nut (A).

INSPECTION
1. Replace the belts, if crack, fraying or wear is found.

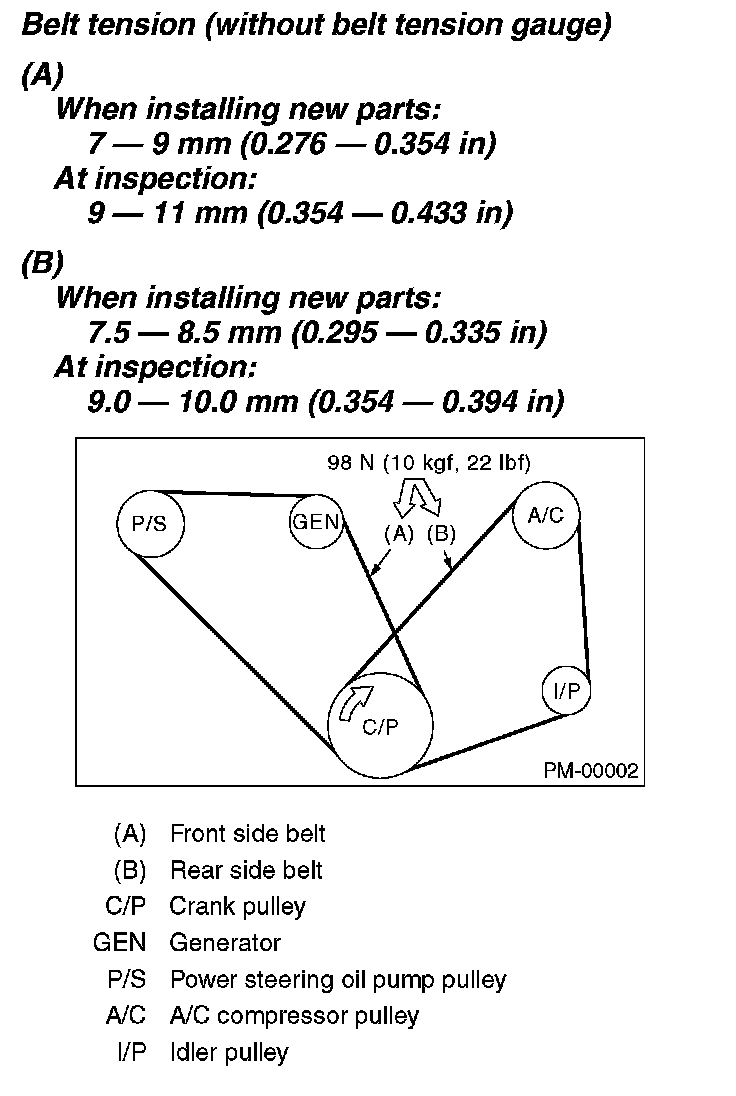

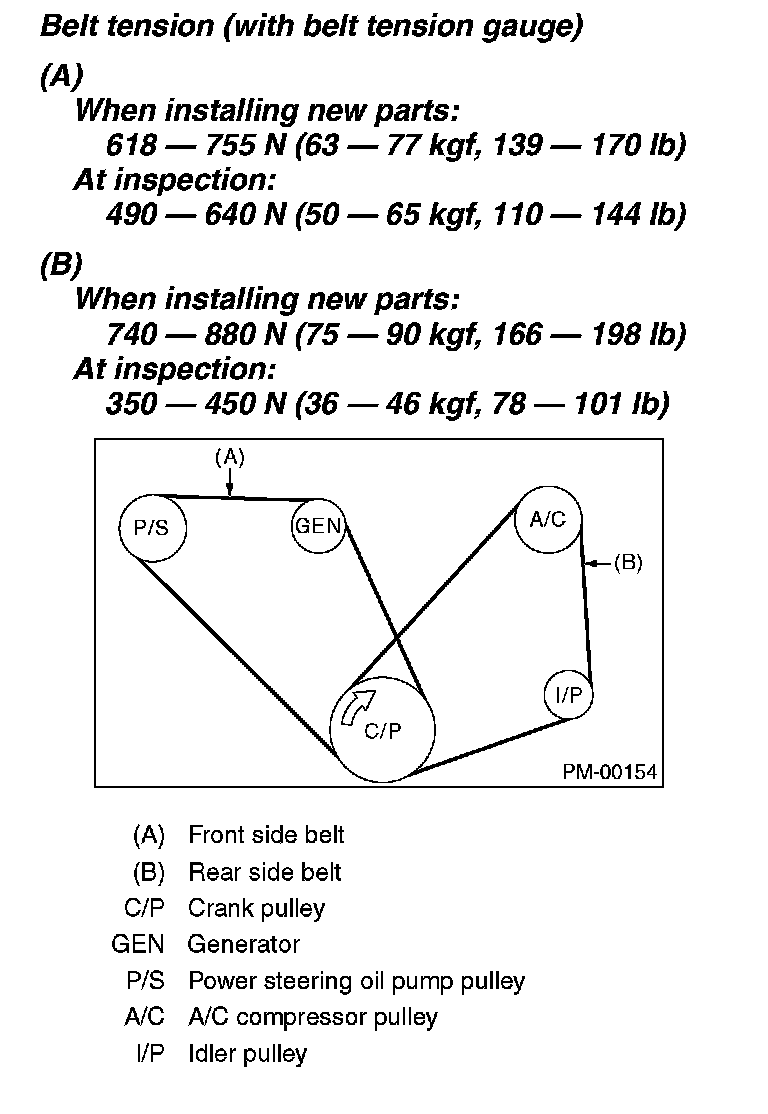

2. Check the V-belt tension and adjust it if necessary by changing the generator installing position and idler pulley installing position.
