Rear

INSPECTION

The content of this article reflects manual update 18-117-07 dated
03/16/07

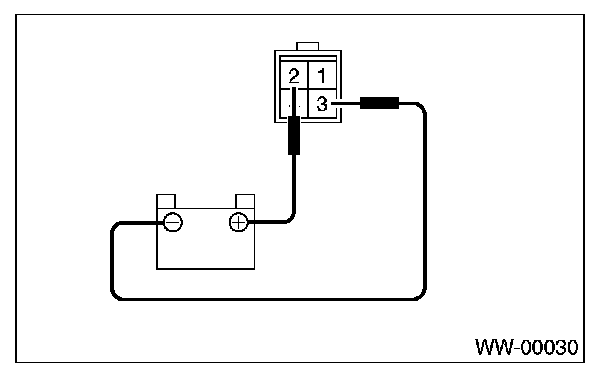

1. Connect the battery to wiper motor connector and confirm that the wiper motor operates.

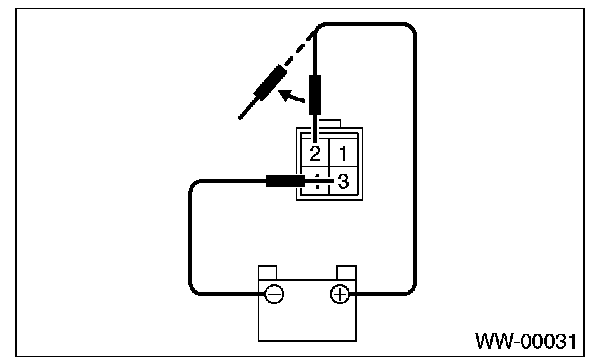

2. Connect the battery to terminal of connector, and then remove the terminal connections with motor rotated, and stop the wiper motor through operation.




3. Connect the battery and confirm that the motor stops at automatic stop position after the motor operates at low speed again.
