Removal and Installation

Wiper Blade

REMOVAL

CAUTION: When replacing wiper blades or etc., be sure to stand up the driver side wiper arm first, then passenger side wiper arm next. Also, when putting the wiper arms back, be sure to start with passenger side first, then driver side next. Doing this in the reverse order may result in damage of passenger side wiper arm by hitting with driver side wiper blade.

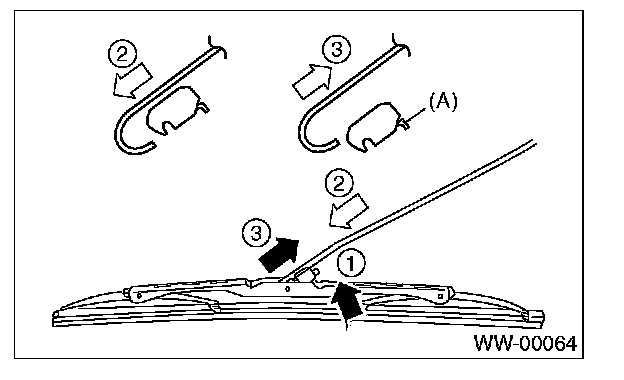

1. FRONT




While pushing the locking clip (A) up, pull out the blade from arm to the arrow direction.

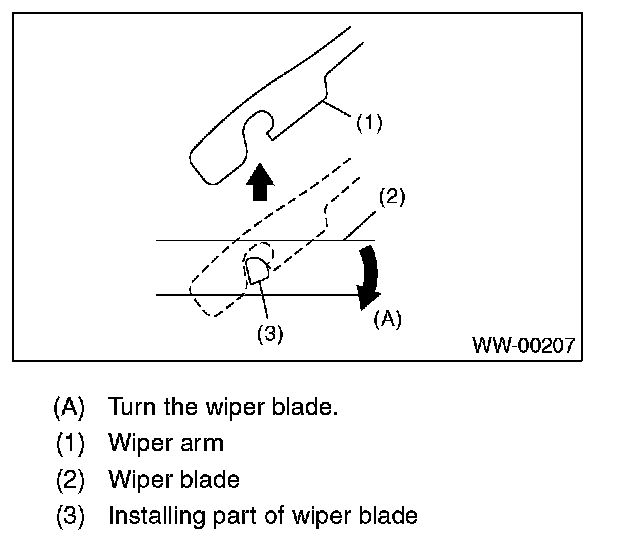

2. REAR




Turn the blade in the direction of arrow (A) and remove it from arm.

INSTALLATION
1. Install in the reverse order of removal.
2. Confirm that the clip is locked securely.
