Windshield Washer Spray Nozzle: Service and Repair

Front Washer Nozzle

REMOVAL
1. Remove the front hood insulator.

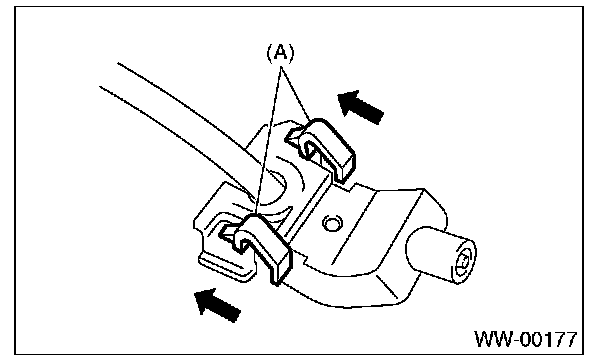

2. Hold the pawl of washer nozzle (A) toward the arrow direction, and remove the washer nozzle.
3. Remove the washer hose from washer nozzle.

INSTALLATION
1. Install in the reverse order of removal.
2. Adjust the washer nozzle position.
