Windshield Washer Motor: Testing and Inspection

Washer Tank and Motor

INSPECTION

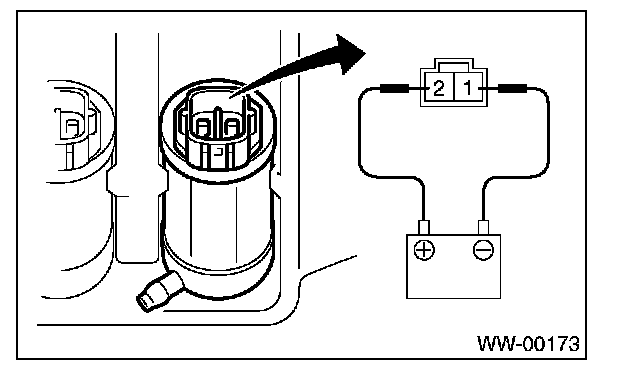

Apply battery voltage to the connector terminal of the washer motor and make sure the motor operates.
