Component Tests and General Diagnostics

Rear Washer

INSPECTION




- Make sure the nozzle and hose are not clogged.
- Make sure the hose is not bent.

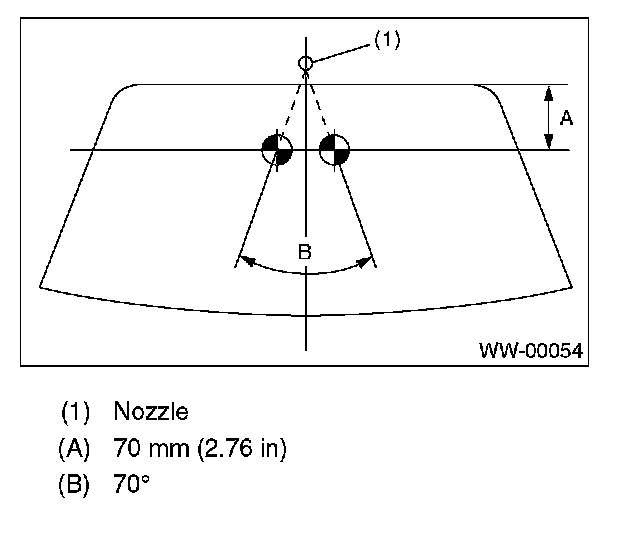

- While the vehicle is at standstill, make sure the washer injection position as shown in the figure.

NOTE: Washer injection position can not be adjusted.
