Rear Door Window Glass: Service and Repair

Rear Door Glass

REMOVAL
1. Remove the rear door trim.
2. Remove the sealing cover.




3. Remove the stabilizer.

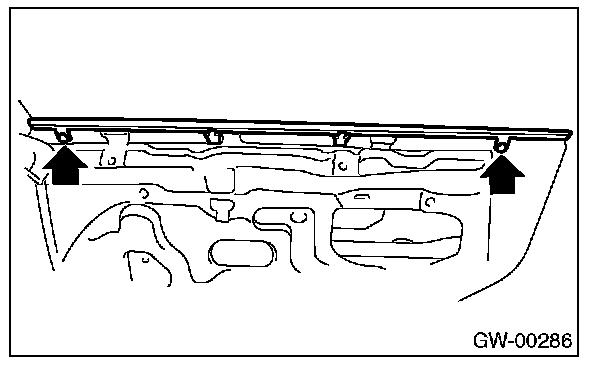

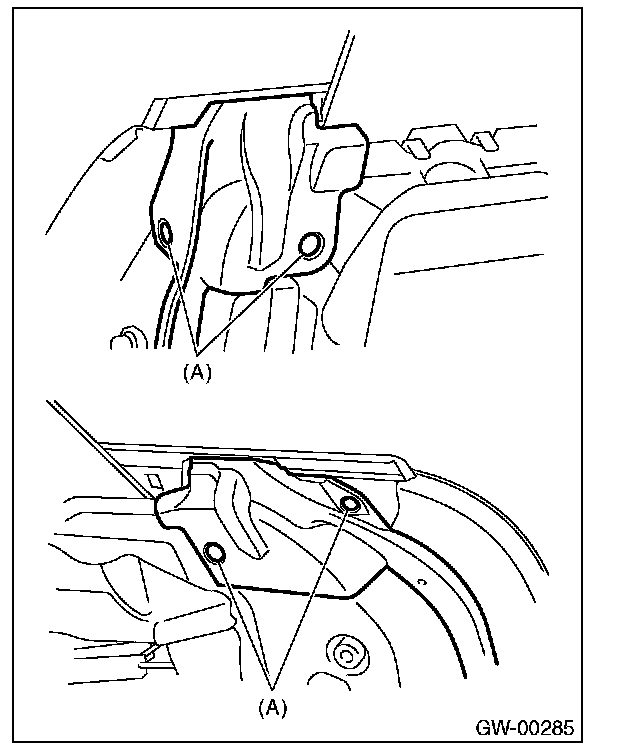

4. Remove the clips (A), and remove the front end and rear end of weather strip.

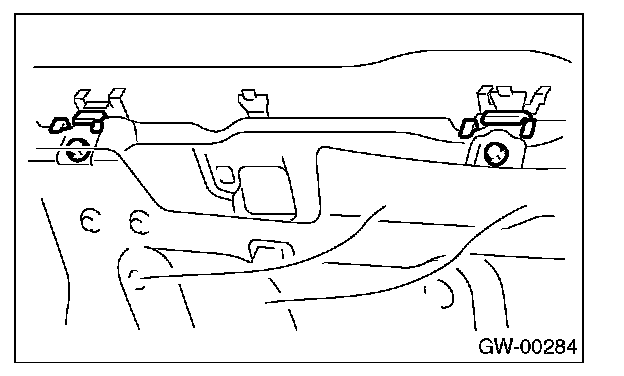

5. Loosen the two screws to remove weather strip outer.

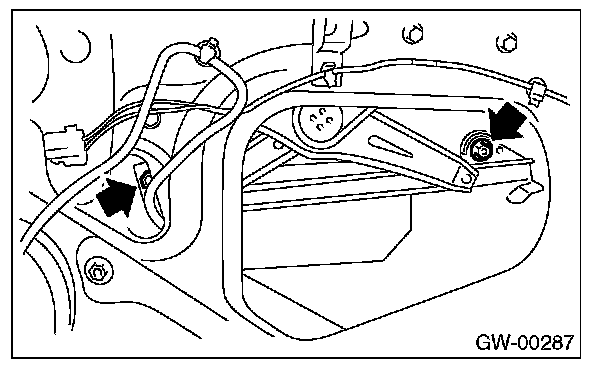

6. Operate the power window switch to move the glass to position shown in the figure, and then remove the two nuts through service holes.

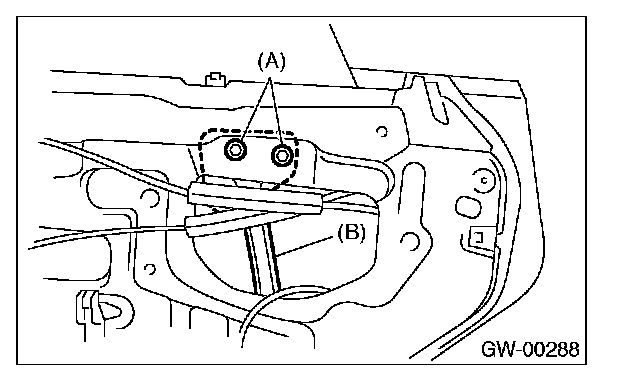

7. Remove the rear sash retaining nuts (A) and move rear sash (B) backward.
8. Remove the door glass.

CAUTION:
- Since the gear may be disengaged, do not turn regulator in the closing direction after removal of the glass.
- Avoid impact and damage to the glass.

INSTALLATION
1. Install in the reverse order of removal.

CAUTION: Make sure that glass stay is placed securely in sash.

2. Adjust the rear door glass.

Tightening torque:
T1: 7.4 N.m (0.75 kgf-m, 5.5 ft-lb)
T2: 13.7 N.m (1.4 kgf-m, 10.1 ft-lb)
