Back Window Glass: Service and Repair

Rear Window Glass

REMOVAL
1. Disconnect the electrical connectors from rear defogger terminal.
2. Remove the glass in the same procedure as for windshield glass.

INSTALLATION

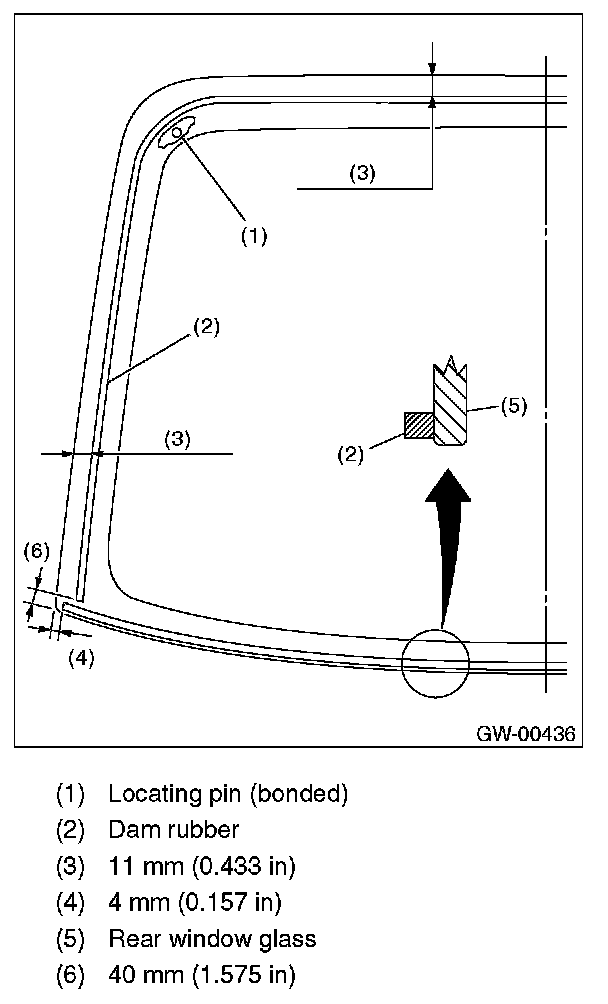

1. Bond the dam rubber.
2. Install the glass in the same procedure as for windshield glass.
3. Connect the connector to the rear defogger and antenna terminals.
4. After completion of all work, allow the vehicle to stand for about 24 hours.

NOTE:
- When door is opened/closed after glass is bonded, always lower the door glass and then open/close it carefully.
- Move the vehicle slowly.
- For minimum drying time and vehicle standing time before driving after bonding, follow instructions or instruction manual from the adhesive manufacturer.

5. After curing of adhesive, pour the water on external surface of vehicle to check that there are no water leaks.

NOTE: When a vehicle is returned to the user, tell him or her that the vehicle should not be subjected to heavy impact for at least three days.
