Rear Door Window Motor: Service and Repair

Rear Regulator and Motor Assembly

REMOVAL
1. Remove the rear door glass.

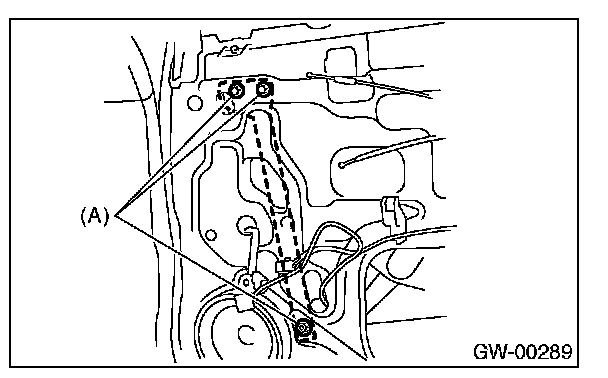

2. Remove the nut (A) to remove front sash.
3. Disconnect the motor connector.

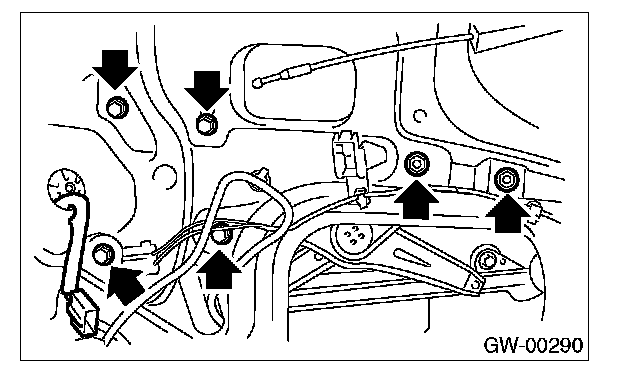

4. Remove the four bolts and two nuts to remove regulator assembly.




5. Remove the screws to remove motor assembly.

INSTALLATION
1. Install in the reverse order of removal.
2. Adjust the rear door glass.

Tightening torque:
T1: 7.4 N.m (0.75 kgf-m, 5.5 ft-lb)
T2: 13.7 N.m (1.4 kgf-m, 10.1 ft-lb)
