Shifter M/T: Description and Operation

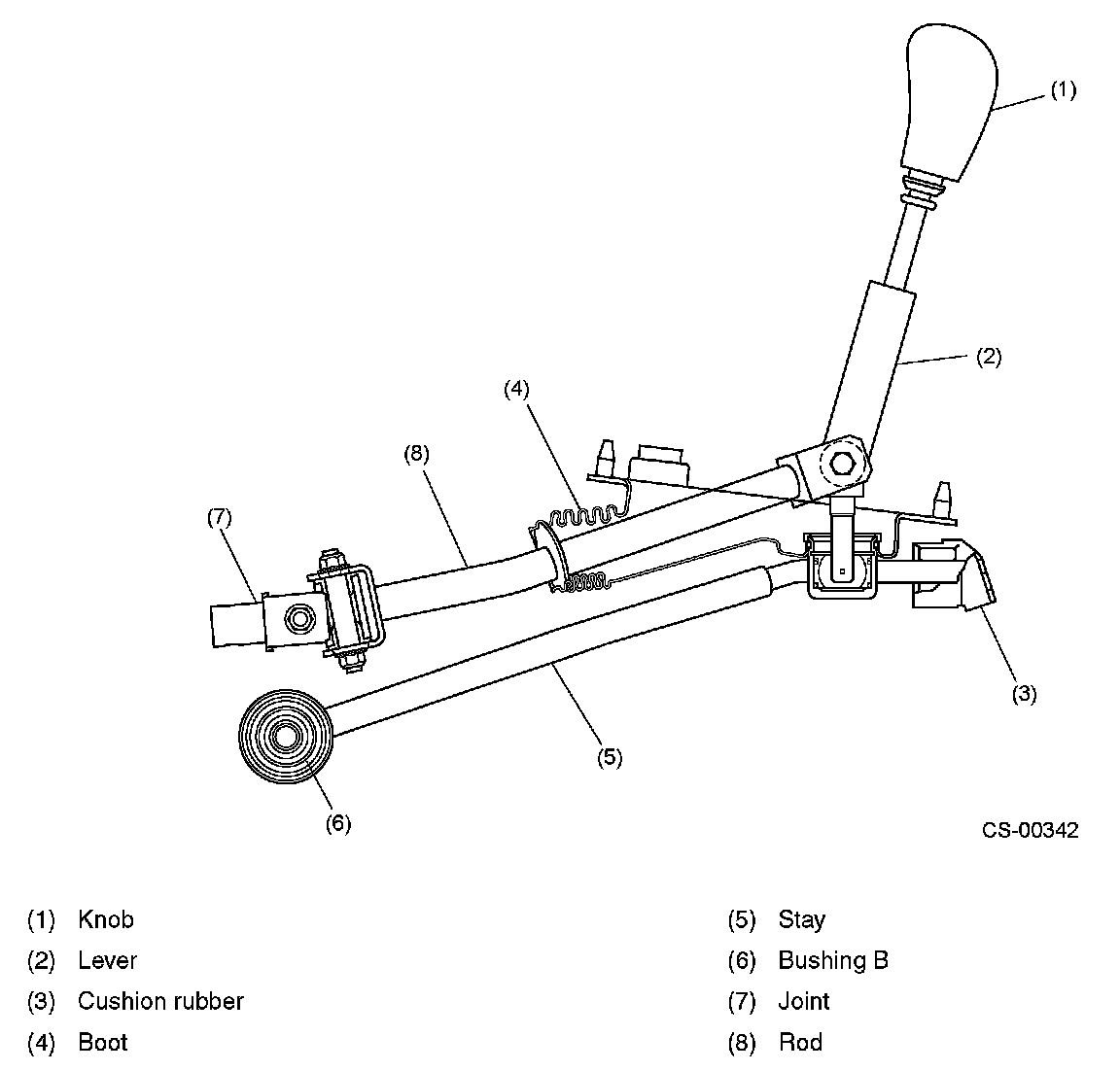

5MT Gear Shift Lever




The manual transmission's gear shift lever system is a parallel link type whose stay is mounted through a cushion rubber.
