Front Axle Installation

The content of this article/image reflects the changes Identified in
TSB # 18-97-06
as of 01/04/06
and applies to 2005 Legacy and Baja models

Front Drive Shaft

INSTALLATION

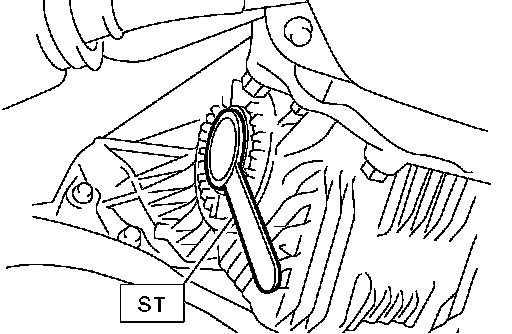

1. Using the ST, replace the differential side retainer oil seal with a new one.
ST 18675AA000 DIFFERENTIAL SIDE OIL SEAL INSTALLER

NOTE: After pulling out the drive shaft, be sure to replace with a new oil seal.

2. Insert the EBJ into hub splines.
3. Draw the drive shaft into specified position.

CAUTION: Do not hammer drive shaft when installing it.

4. Tighten the axle nut temporarily.





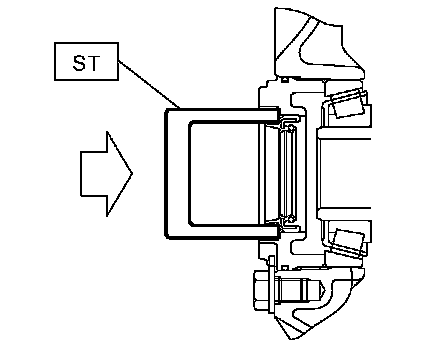

5. Using the ST, install the front drive shaft to transmission.
ST 28399SA010 OIL SEAL PROTECTOR
6. Connect the front arm ball joint to housing.
Tightening torque: 50 Nm (5.1 kgf-cm, 36.9 ft. lbs.)
7. Install the stabilizer link.
Tightening torque: 45 Nm (4.6 kgf-cm, 33.2 ft. lbs.)

CAUTION: Be sure to use a new self-locking nut.

8. While depressing the brake pedal, tighten a new axle nut (olive color) to the specified torque and lock it securely.
Tightening torque: 220 Nm (22.4 kgf-cm, 162 ft. lbs.)

CAUTION:
^ Install the wheel after installation of the axle nut. Failure to follow this rule may damage the wheel bearing.
^ Be sure to tighten axle nut to specified torque. Do not overtighten it as this may damage wheel bearing.

9. After tightening axle nut, lock it securely.
