Lockup Duty Solenoid

LOCKUP DUTY SOLENOID

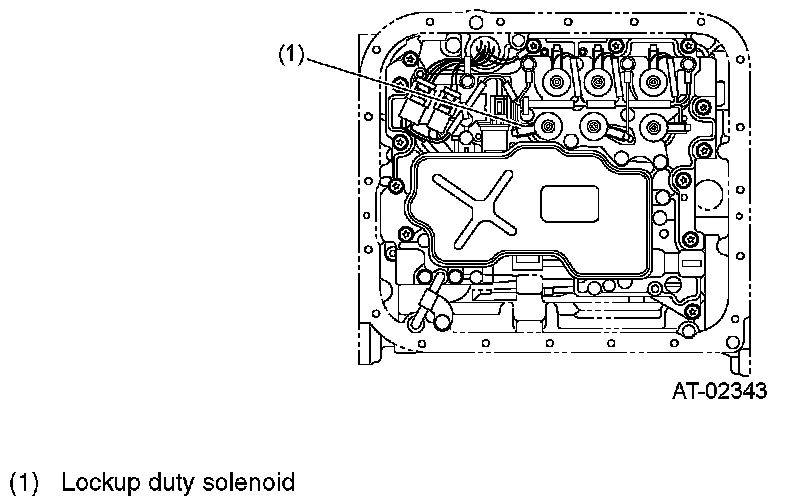

This solenoid is mounted on the transmission control valve. Its duty ratio is controlled by signals from the TCM. The solenoid provides smooth engagement and disengagement of the lockup clutch.
