Shift Cable: Service and Repair

Select Cable

REMOVAL
1. Set the vehicle on a lift.
2. Shift the select lever to N range.
3. Disconnect the ground cable from battery.
4. Lift-up the vehicle.
5. Remove the front, center and rear exhaust pipes and muffler. (SOHC and DOHC non-turbo model)
6. Remove the center and rear exhaust pipe and muffler. (DOHC turbo model)

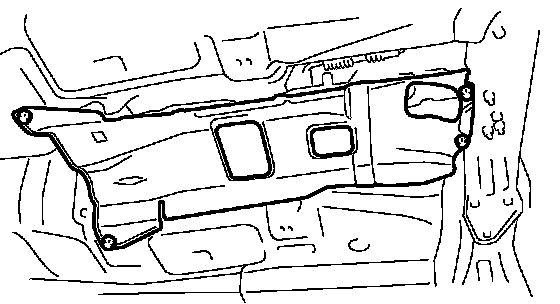

7. Remove the heat shield cover.

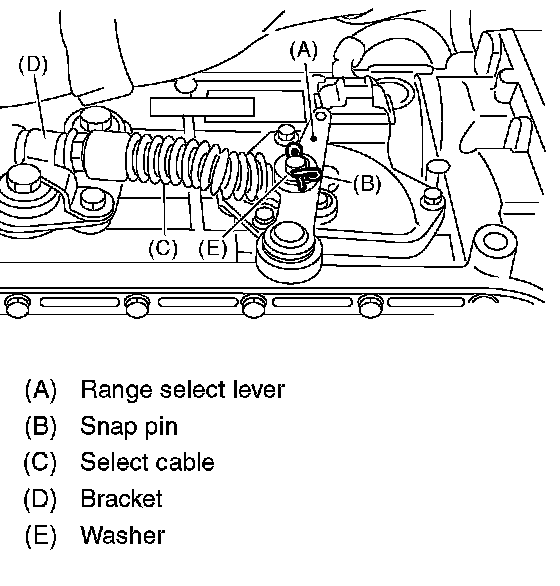

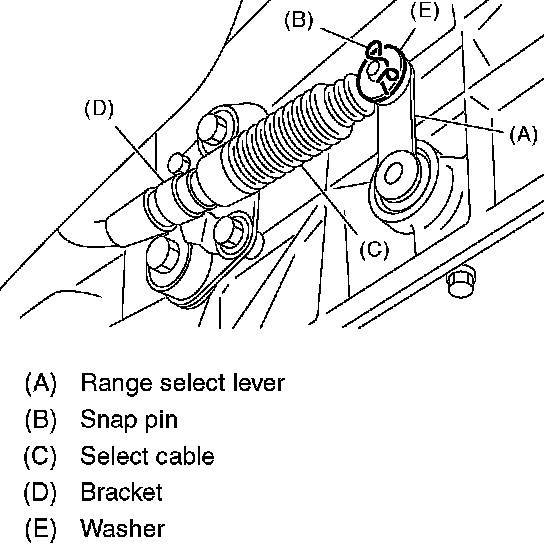

8. Remove the snap pin and washer from range select lever.





^ 4AT





^ 5AT

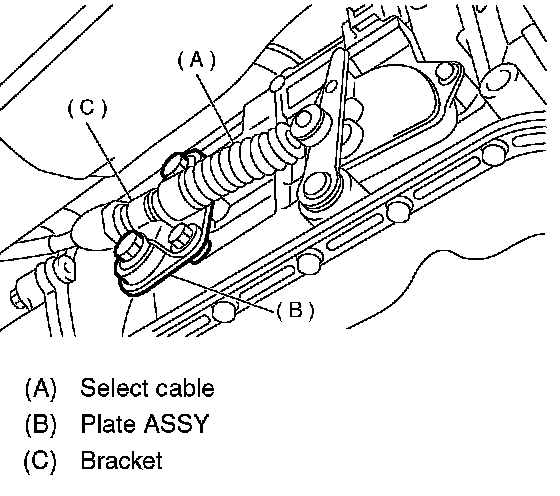

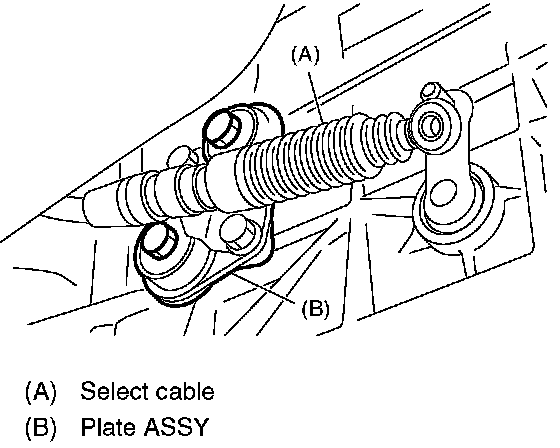

9. Remove the plate assembly from transmission case.





^ 4AT





^ 5AT

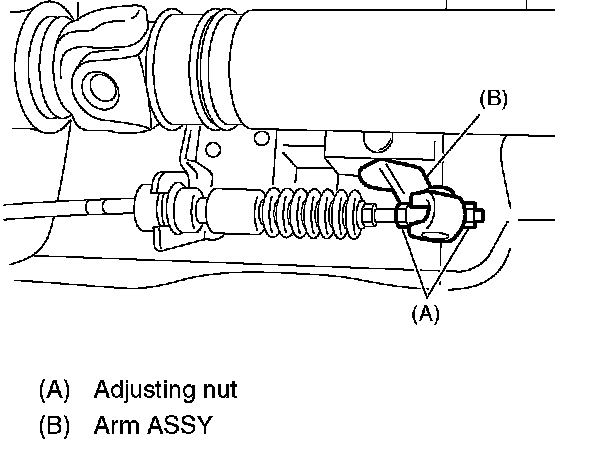

10. Disconnect the cable from arm assembly.

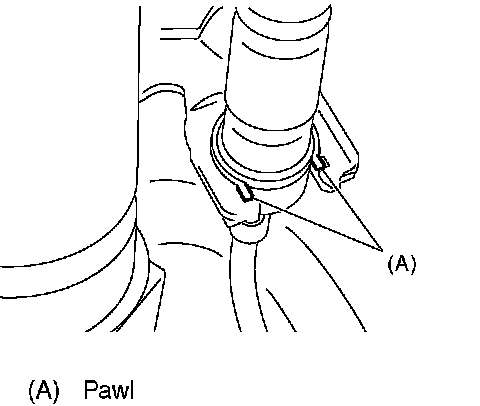

11. Raise the pawl of clamp to remove the cable from bracket.
12. Remove the select cable from plate assembly.

INSTALLATION
1. Install the select cable to plate assembly.
Tightening torque: 18 Nm (1.8 kgf-cm, 13.3 ft. lbs.)
2. Install the select cable to range select lever.
3. Install the plate assembly to transmission.
Tightening torque:
T: 24.5 Nm (2.5 kgf-cm, 18.1 ft. lbs.)





^ 4AT





^ 5AT

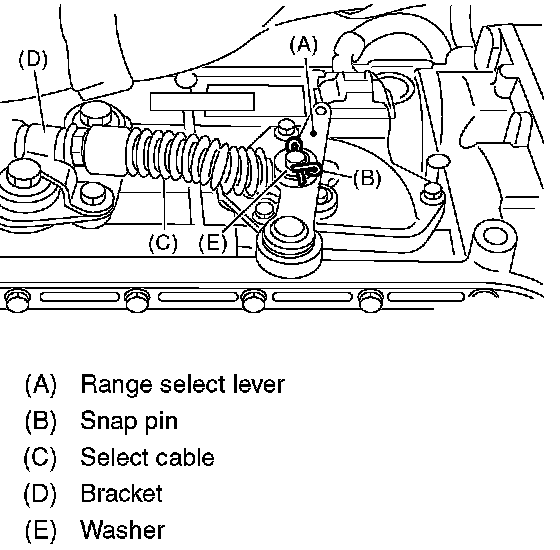

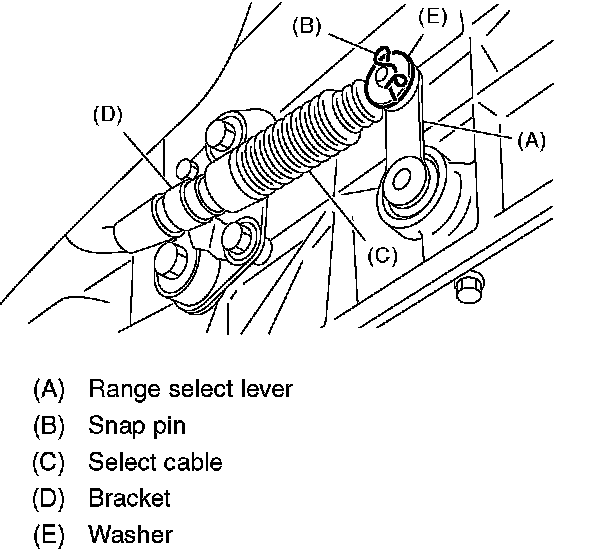

4. Install the washer and snap pin to range select lever.





^ 4AT





^ 5AT

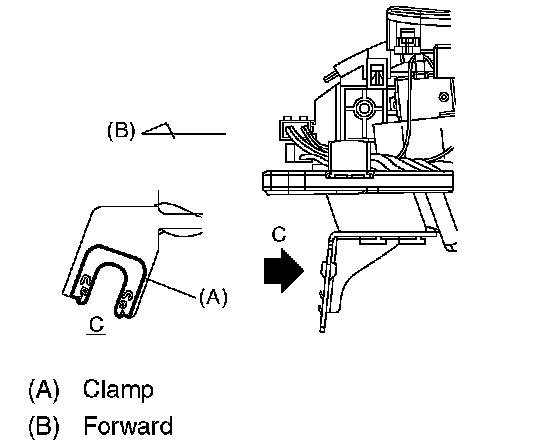

5. Install a new clump paying attention to the installing direction.

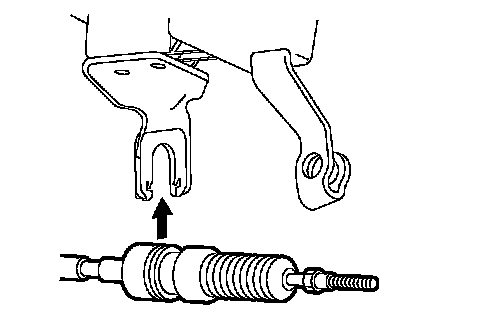

6. Insert the tip of inner cable into connector hole of the select lever, and fix the cable to bracket.
7. Shift the select lever to N range, and then adjust the select cable position.

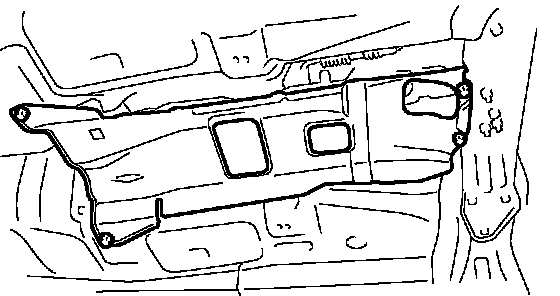

8. Install the heat shield cover.
9. Install the front, center and rear exhaust pipes and muffler. (SOHC and DOHC non-turbo model)
10. Install the center and rear exhaust pipe and muffler. (DOHC turbo model)

INSPECTION
Check the removed cable and replace or adjust if damaged, rusty or malfunctioning.
1. Check for smooth operation of the cable.
2. Check the inner cable for damage and rust.
3. Check the outer cable for damage, bends and cracks.
4. Check the boot for damage, cracks and deterioration.
5. Move the select lever from P to D range. Check the existence of feel to contact the detents in each range. If the detents cannot be felt or the position pointer is improperly aligned, adjust the cable.
6. Check if the starter motor rotates when the select lever is set to P range.
7. Check the back-up light illumination when the select lever is in R range.
8. Check the parking lock operation when the select lever is in P range.

ADJUSTMENT
1. Shift the select lever to N range.
2. Remove the rear exhaust pipe and muffler.





3. Remove the heat shield cover.

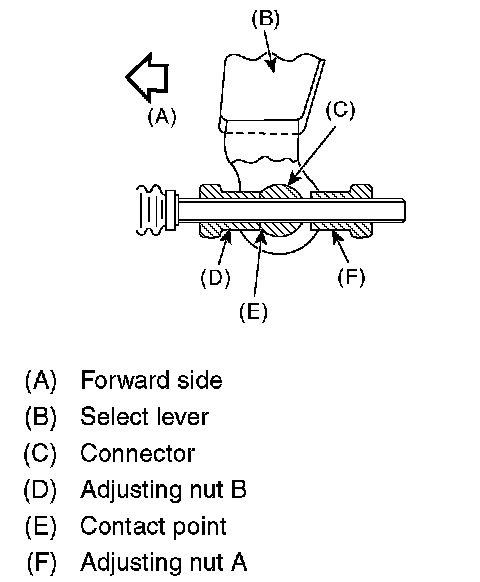

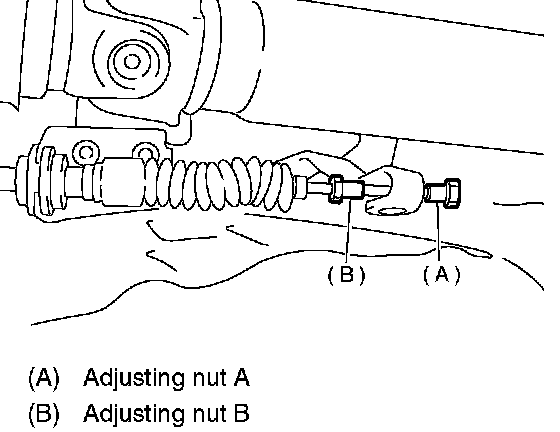

4. Loosen the adjusting nuts on both sides.





5. Turn the adjusting nut B until it lightly touches the connector.

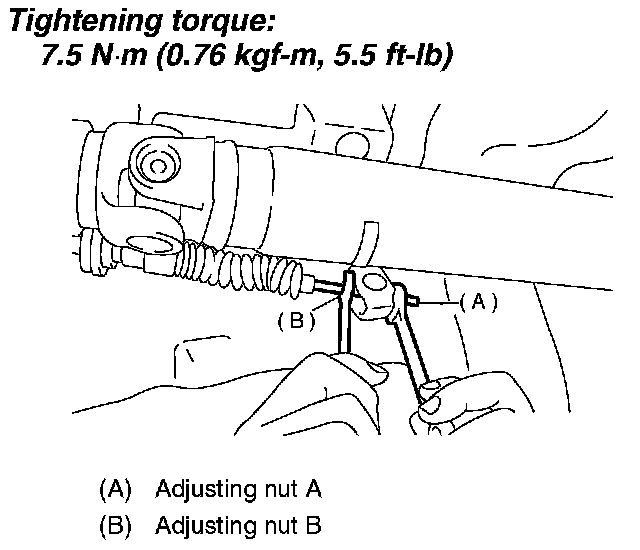

6. Set a spanner wrench to adjusting nut B so that it does not rotate, and then tighten the adjusting nut A.
Tightening torque: 7.5 Nm (0.76 kgf-cm, 5.5 ft. lbs.)
7. After the completion of adjustment, confirm that the select lever operates normally at all ranges.
8. Install in the reverse order of removal.
