Parking Pawl

Parking Pawl

REMOVAL
1. Remove the transmission assembly from vehicle.
2. Remove the extension case and intermediate case.
3. Remove the center differential carrier.





4. Remove the parking support actuator.

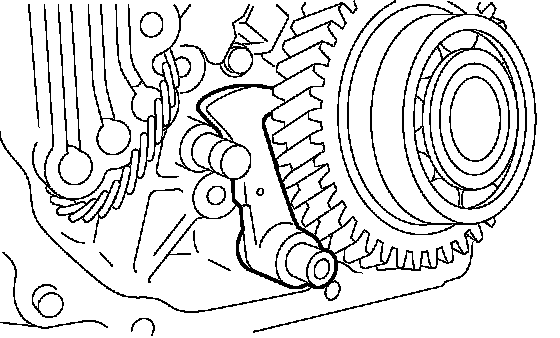

5. Remove the parking pawl, parking pawl shaft and return spring.

INSTALLATION
1. Set the transmission to N range.

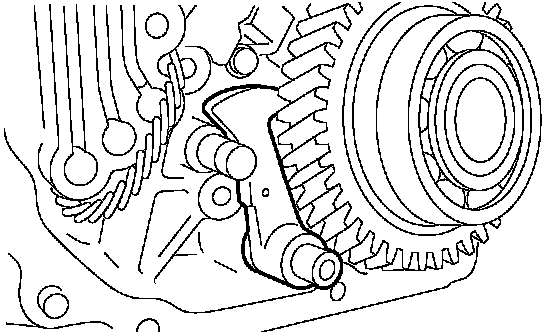

2. Install the parking pawl, parking pawl shaft and return spring.
3. Temporarily secure the parking support actuator.

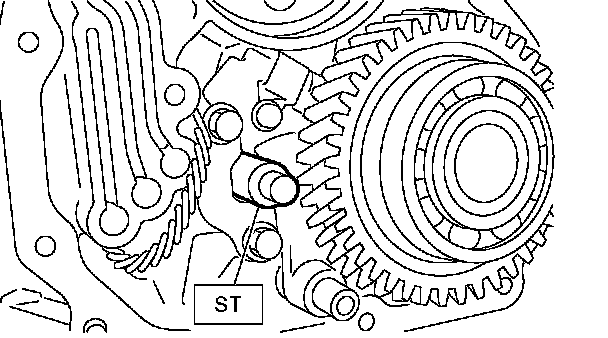

4. Set the ST between parking pawl and parking support actuator.
ST 18679AA000 ADJUSTER

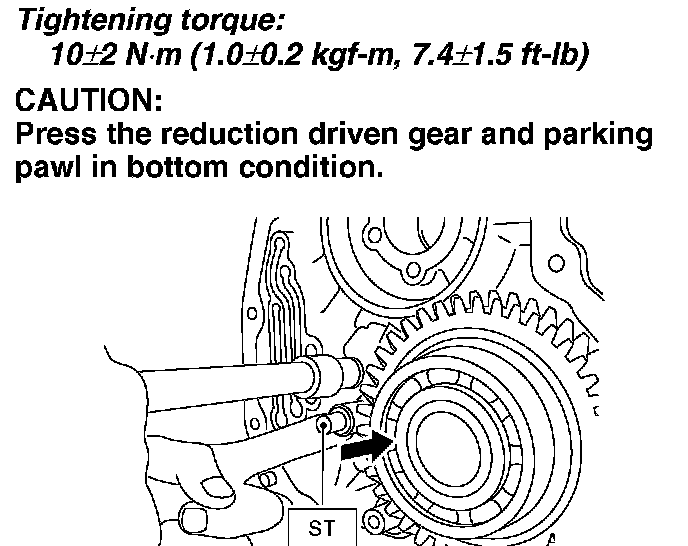

5. Tighten the securing bolts while pressing parking support actuator with finger.
Tightening torque: 10 ± 2 Nm (1.0 ± 0.2 kgf-cm, 7.4 ± 1.5 ft. lbs.)

CAUTION: Press the reduction driven gear and parking pawl in bottom condition.

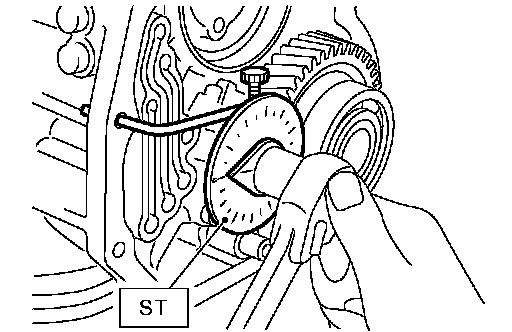

6. Using the ST, tighten the bolts which tightened in step 4) with specified angle.
Tightening angle: 18° ± 2°

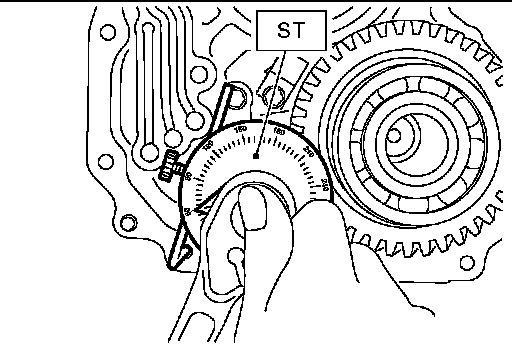

ST 18679AA000 ADJUSTER
ST 18854AA000 ANGLE GAUGE

NOTE: Do not use extension as much as possible.

7. Install the center differential carrier.
8. Install the extension case and intermediate case.
9. Install the transmission assembly into vehicle.

INSPECTION
Make sure that the tab of parking pawl on reduction driven gear is not worn or otherwise damaged.
