Center Differential Carrier

Center Differential Carrier

REMOVAL
1. Remove the transmission assembly from vehicle.
2. Remove the rear wheel speed sensor, and separate the extension case and intermediate case from transmission case.
3. Pull out the rear drive shaft.

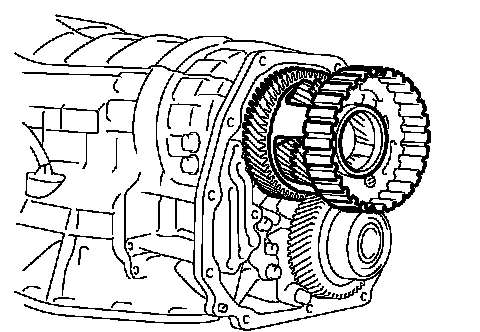

4. Pull out the center differential carrier assembly.
5. Pull out the shim(s) from transmission case.

INSTALLATION

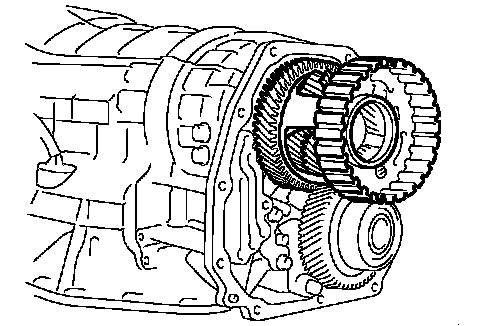

1. Install the center differential assembly with the shim(s).

NOTE: Press-fit it to the bottom of bearing shoulder completely.

2. Insert the rear drive shaft.
3. Connect the transmission case, extension case and intermediate case, and install the rear wheel speed sensor.
4. Install the transmission assembly into vehicle.

DISASSEMBLY





1. Remove the seal ring.

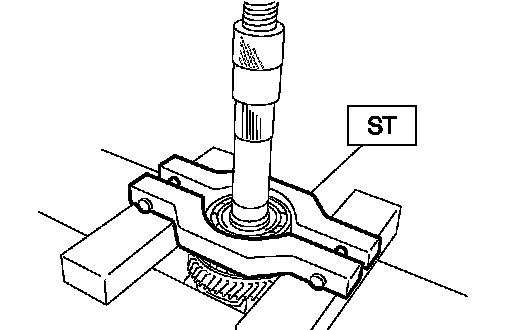

2. Using a press and ST, remove the ball bearing.
ST 498077600 REMOVER





3. Remove the snap ring, and pull out the shaft from center differential assembly.





4. Remove the thrust washers, pinion gears and washers from center differential assembly.
5. Pull out the intermediate shaft and thrust bearing.

ASSEMBLY
1. Install the thrust washer onto intermediate shaft.
2. Install the thrust bearing onto intermediate shaft.

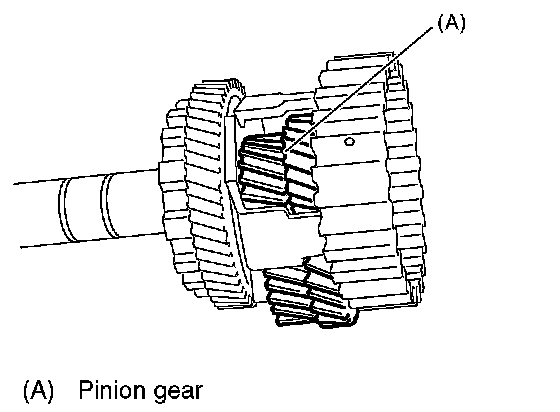

3. Install the pinion gears and washers.
4. Insert the shaft into the center differential assembly.
5. Install the snap ring.

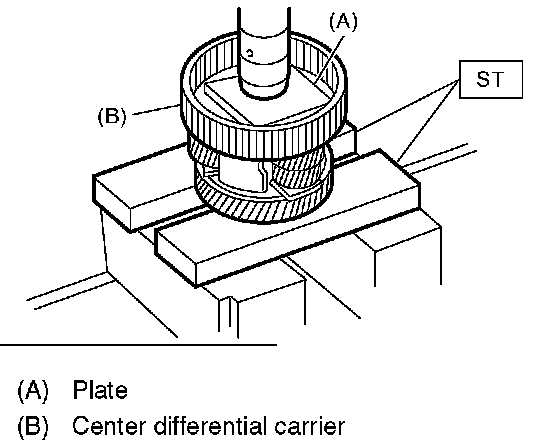

6. Using a press, install a new ball bearing into the center differential assembly.
ST 498077000 REMOVER
7. Apply Vaseline onto the seal ring outer surface and shaft grooves.

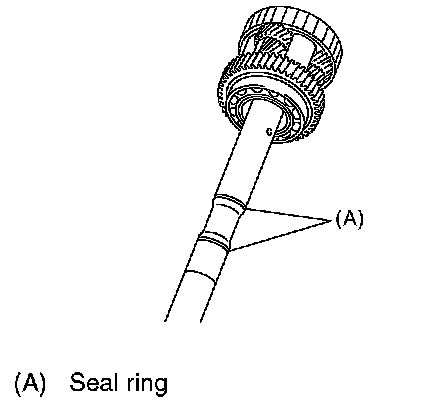

8. Install a new seal rings.

INSPECTION
^ Check each parts for holes, damages or other foreign matters.
^ Inspect the extension end play and adjust it to within specifications.
