Transmission Control Module (TCM)
>>
Control System
Control System

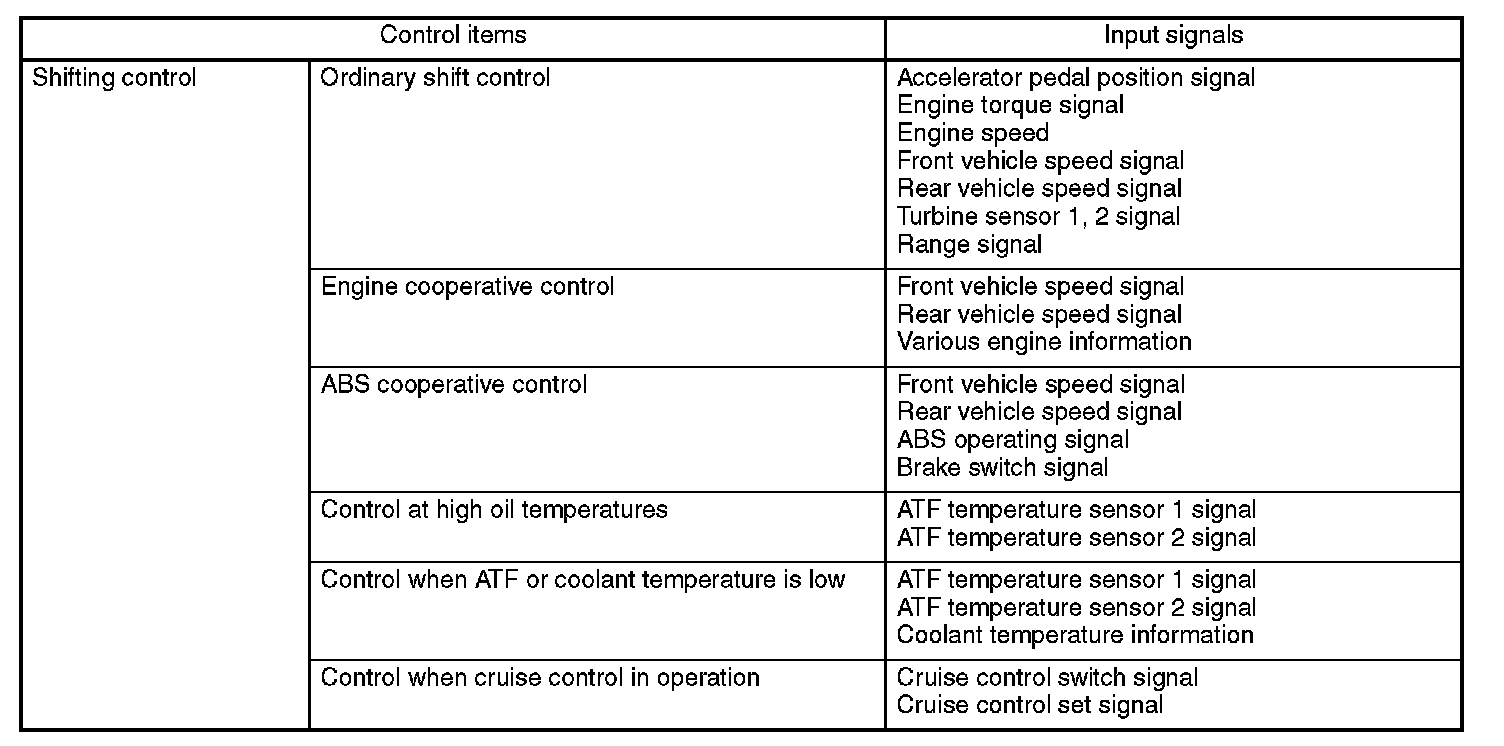

Control System Part 1:

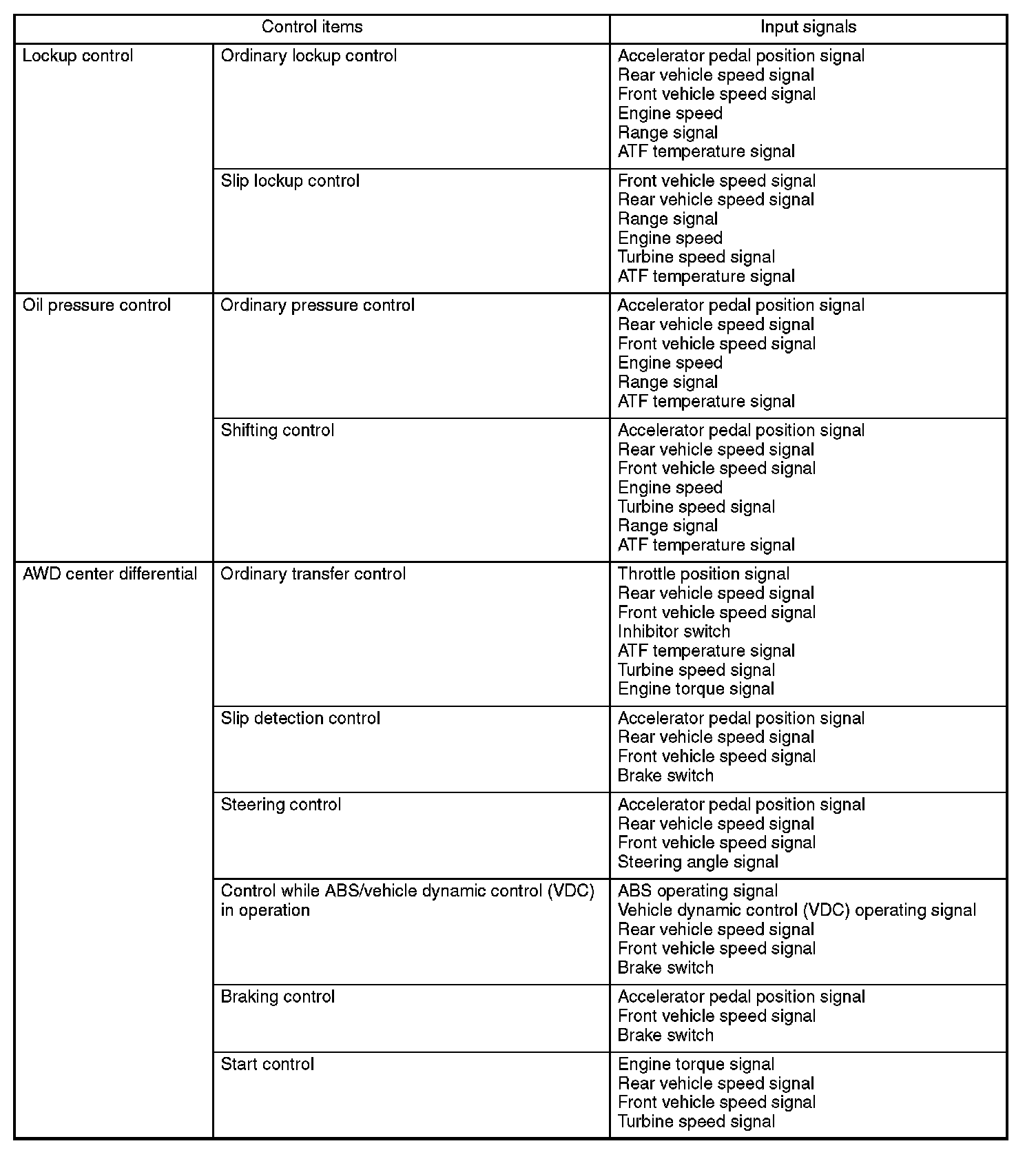

Control System Part 2:

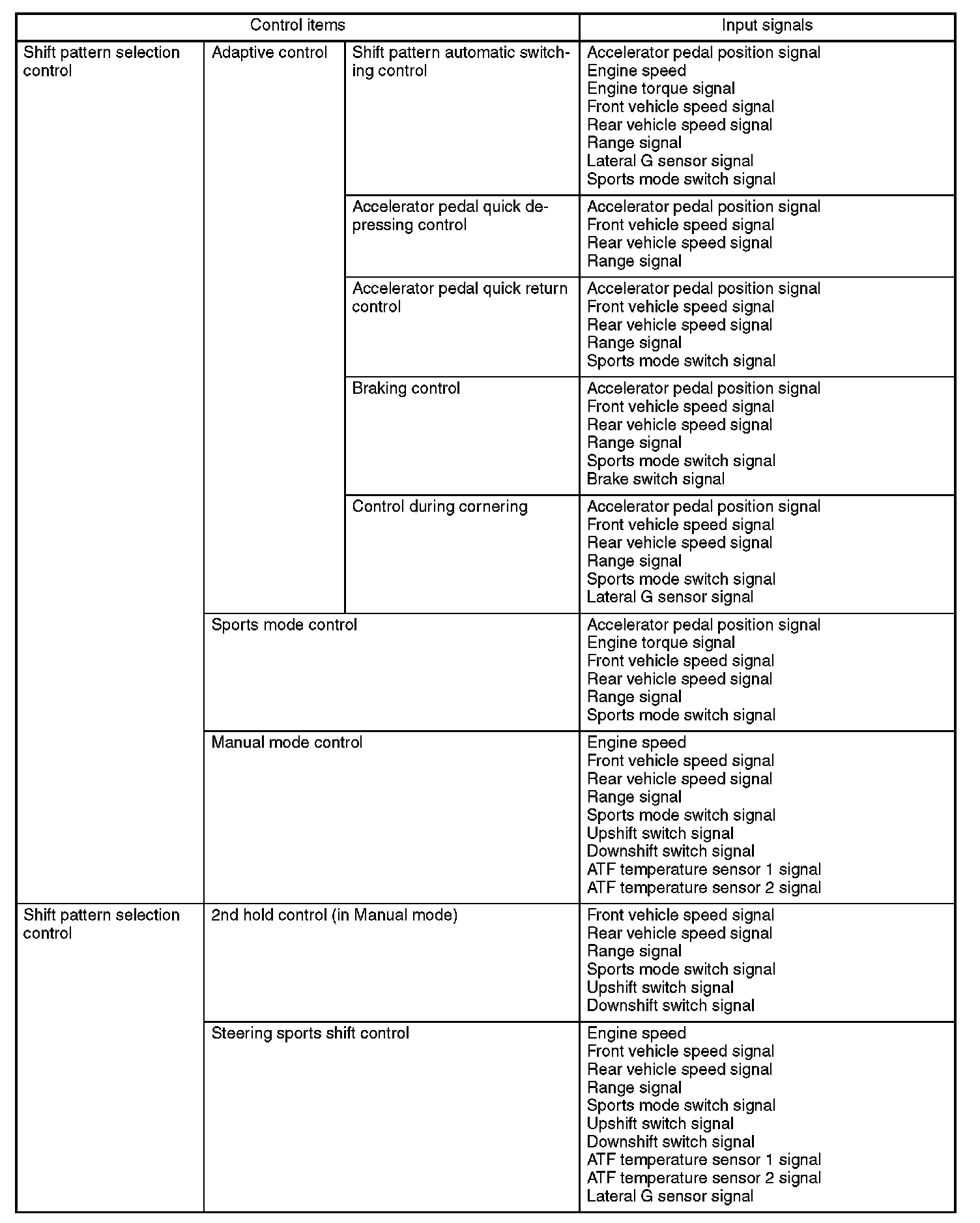

Control System Part 3:
