Operation of Sports Indicator Light

OPERATION OF SPORTS INDICATOR LIGHT

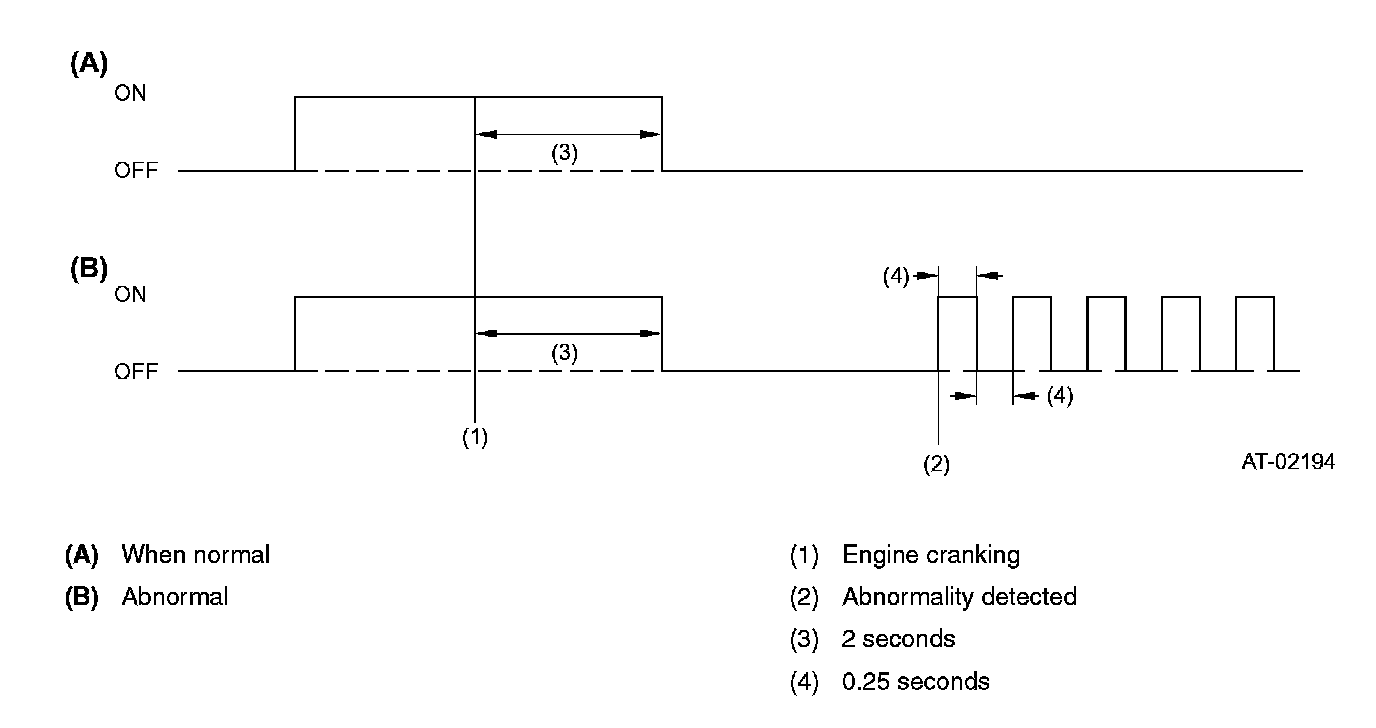

On starting the engine, the SPORTS indicator light illuminates for bulb check and then goes out as shown in the Normal diagram. If any problem exists, the light continues flashing as shown in the Abnormal diagram.
