Front Suspension
Front StrutREMOVAL
1. Lift-up the vehicle, and then remove the front wheels.
2. Scribe an alignment mark on the camber adjusting bolt and strut.

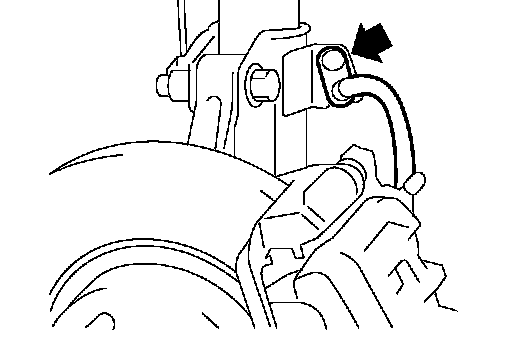

3. Remove the bolt securing brake hose from strut.

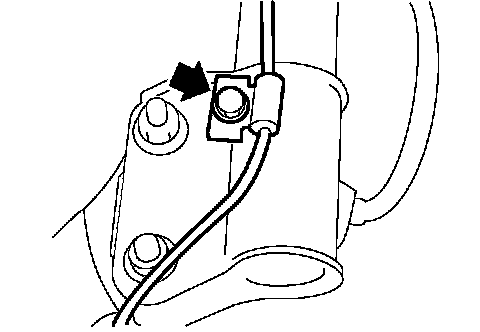

4. Remove the bolt securing ABS wheel speed sensor harness.
5. Remove the two bolts securing housing to strut.
NOTE: While holding the head of adjusting bolt, loosen the self-locking nut.

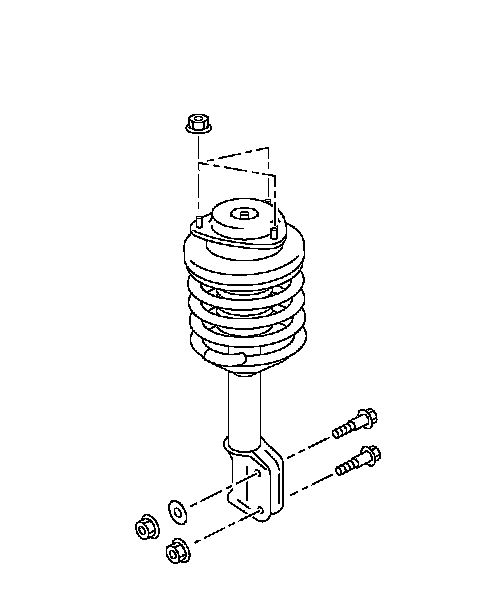

6. Remove the three nuts securing strut mount to body.
INSTALLATION
1. Install the strut mount at the upper side of strut to body, and tighten it with new self-locking nuts.
Tightening torque: 20 Nm (2.0 kgf-cm, 14.5 ft. lbs.)
2. Align alignment marks on the camber adjusting bolt and strut. Using new self-locking nuts, install the strut to housing.
NOTE: While holding the head of adjusting bolt, tighten the self-locking nut.
Tightening torque: 152 Nm (15.5 kgf-cm, 112.1 ft. lbs.)
3. Secure the ABS wheel speed sensor harness to strut.
Tightening torque: 33 Nm (3.4 kgf-cm, 24.3 ft. lbs.)
4. Install the bolts which secure the brake hose to strut.
Tightening torque: 33 Nm (3.4 kgf-cm, 24.3 ft. lbs.)
5. Install the front wheels.
NOTE: Inspect the wheel alignment and adjust if necessary.
DISASSEMBLY

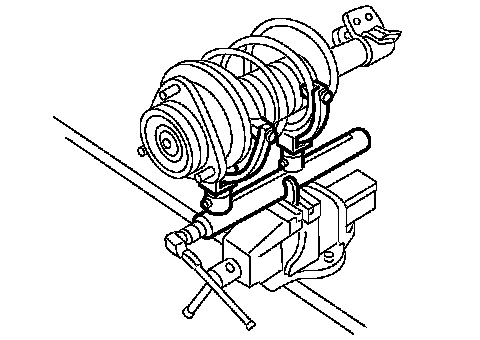

1. Using a coil spring compressor, compress the coil spring.

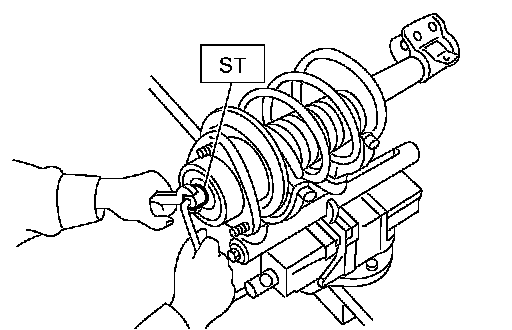

2. Using the ST, remove the self-locking nut.
ST 20399AG000 STRUT MOUNT SOCKET
3. Remove the strut mount, spacer and upper spring seat from strut.
4. Gradually decrease the compression force of compressor, and remove the coil spring.
5. Remove the dust cover and helper spring.
ASSEMBLY
1. Before installing the coil spring, strut mount, etc. on strut, check for the presence of air in the dampening force generating mechanism of the strut since air prevents proper dampening force production.
2. Check for presence of air
1. Place the strut vertically with the piston rod facing up.
2. Move the piston rod to the center of its entire stroke.
3. While holding the piston rod end with fingertips, move the rod up and down.
4. If the piston rod moves at least 10 mm (0.39 inch) in the former step, purge air from the strut.
3. Air purging procedure
1. Place the strut vertically with the piston rod facing up.
2. Fully extend the piston rod.
3. With the piston rod fully extended, place the piston rod side down. The strut must stand vertically.
4. Fully contract the piston rod.
5. Repeat 3 to 4 times from the step (1).
NOTE: After completely purging air from the strut, be sure to place the strut with the piston rod facing up. If the strut is laid down and set, check for the entry of air in accordance with Check for presence of air.
4. Using a coil spring compressor, compress the coil spring.

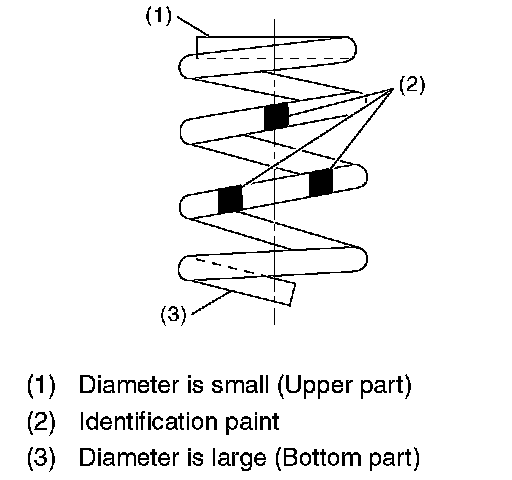

NOTE: Make sure that the vertical installing direction of coil spring is as shown in the figure.
5. Set the coil spring correctly so that its end face fits well into the spring seat as shown in the figure.
6. Install the helper and dust cover to piston rod.
7. Pull the piston rod fully upward, and install the spring seat.

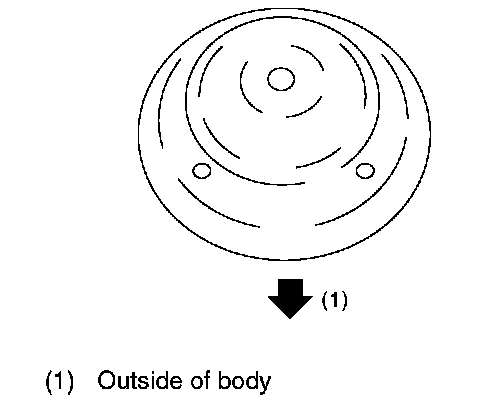

NOTE: Ensure the upper spring seat is positioned as shown in the figure.
8. Install spacer and the strut mount to piston rod, and tighten a new self-locking nut temporarily.

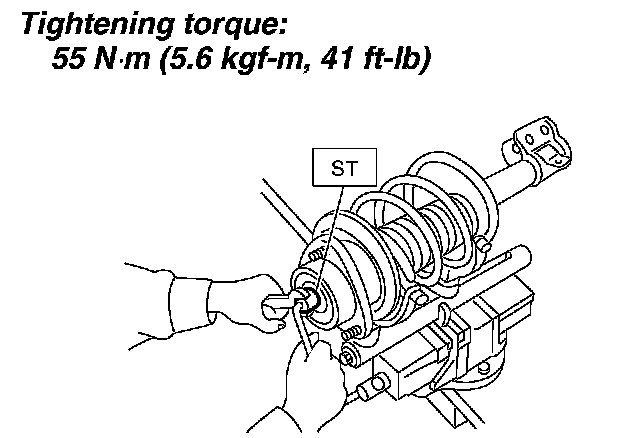

9. Using a hexagon wrench to prevent strut rod from turning, tighten the new self-locking nut with ST.
ST 20399AG000 STRUT MOUNT SOCKET
Tightening torque: 55 Nm (5.6 kgf-cm, 41 ft. lbs.)
10. Loosen the coil spring carefully.
INSPECTION
Check the removed part for wear, damage or cracks, and then repair or replace it if defective.
DAMPER STRUT
1. Check for oil leaks.
2. Move the piston rod up and down to check that it operates smoothly without any hitch.

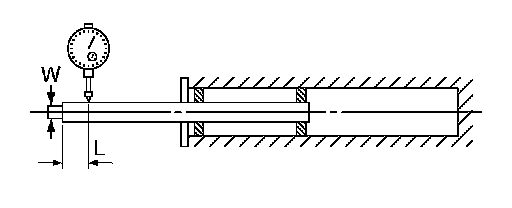

3. Piston rod play
^ Measure the play as follows:
Fix the outer shell and fully extend the rod. Set a dial gauge at the end of rod L [10 mm (0.39 inch)], and then read the dial gauge indication P. while applying a force of W [20 N (2 kgs, 4 lbs.)] to threaded portion. Apply a force of 20 N (2 kgs, 4 lbs.) in the opposite direction of W, and then read the dial gauge indication P2
Play limit (P1 + P2): 0.8 mm (0.031 inch)
If the play exceeds limit, replace the strut.
STRUT MOUNT
Check the rubber part for deformation, cracks or deterioration, and then replace it with a new one if defective.
DUST COVER
If any cracks or damage are found, replace it with a new one.
COIL SPRING
If a permanent strain is found, replaced it with a new one.
HELPER
Replace it with a new one if cracked or damaged.
DISPOSAL
CAUTION:
^ Before handling struts, be sure to wear goggles to protect eyes from gas, oil and cutting powder.
^ Do not disassemble the strut damper or place into a fire.
^ Drill a hole into struts in case of discarding struts filled with gas.
1. Place the strut on a level surface with the piston rod fully expanded.

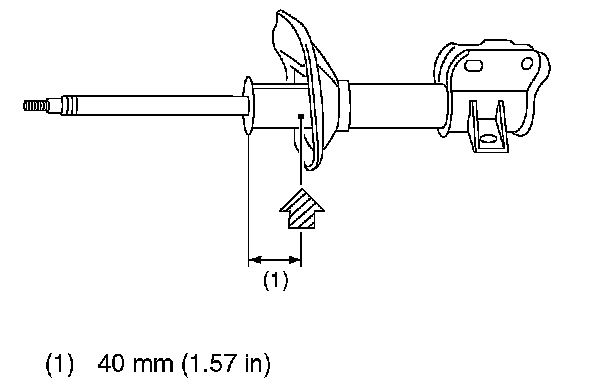

2. Using a 2 to 3 mm (0.08 to 0.12 inch) dia. drill, make holes in areas shown in the figure.
