Electronic Noise Suppressor: Service and Repair
Noise SuppressorREMOVAL

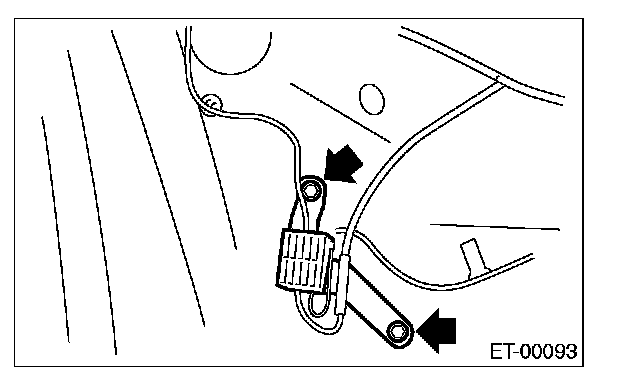

1. SEDAN MODEL
1. Disconnect the ground cable from battery.
2. Remove the rear quarter trim.
3. Remove the curtain airbag module.
4. Disconnect the harness connector from noise suppressor.
5. Remove the harness clip.
6. Remove the screw and detach noise suppressor.

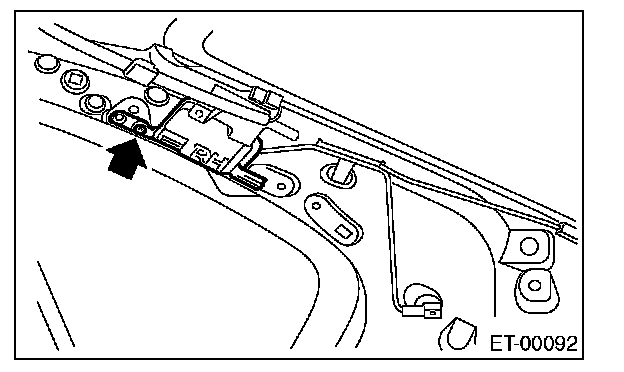

2. WAGON MODEL
1. Disconnect the ground cable from battery.
2. Remove the rear gate trim.
3. Disconnect the harness connector from noise suppressor.
4. Remove the screws and detach noise suppressor.
INSTALLATION
Install in the reverse order of removal.
