A/C System
A/C System

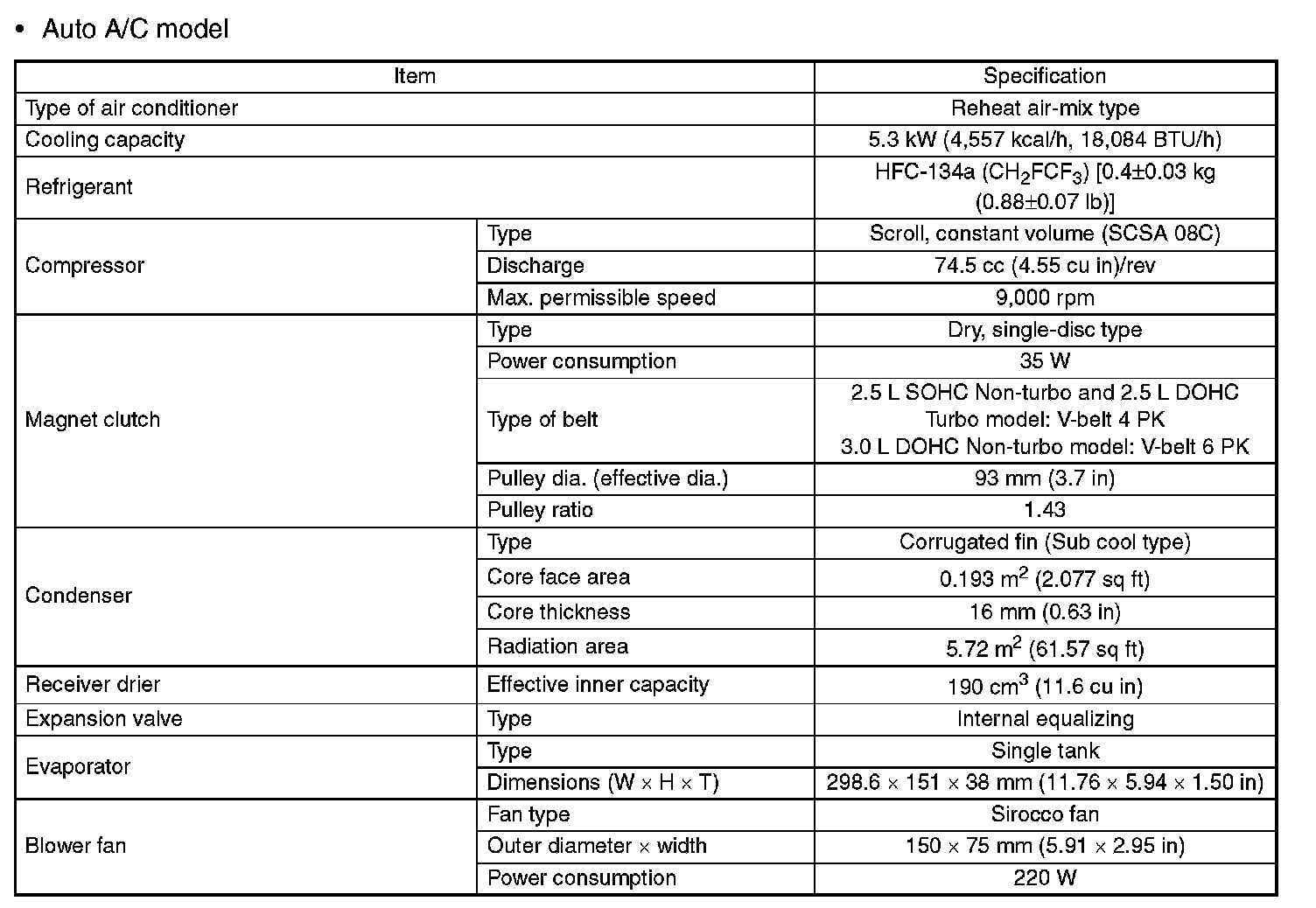

Specification - Auto A/C Model Part 1:

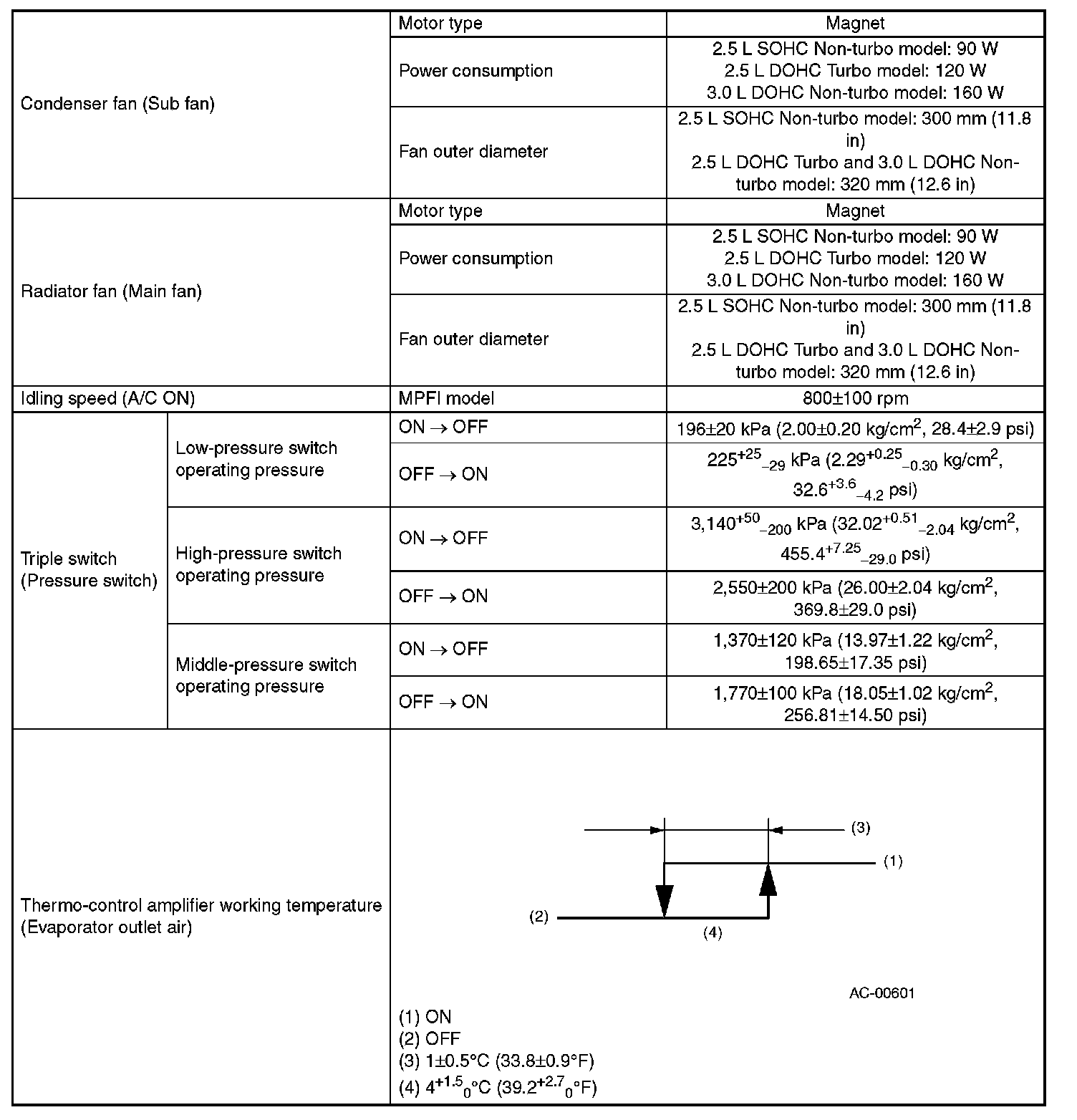

Specification - Auto A/C Model Part 2:

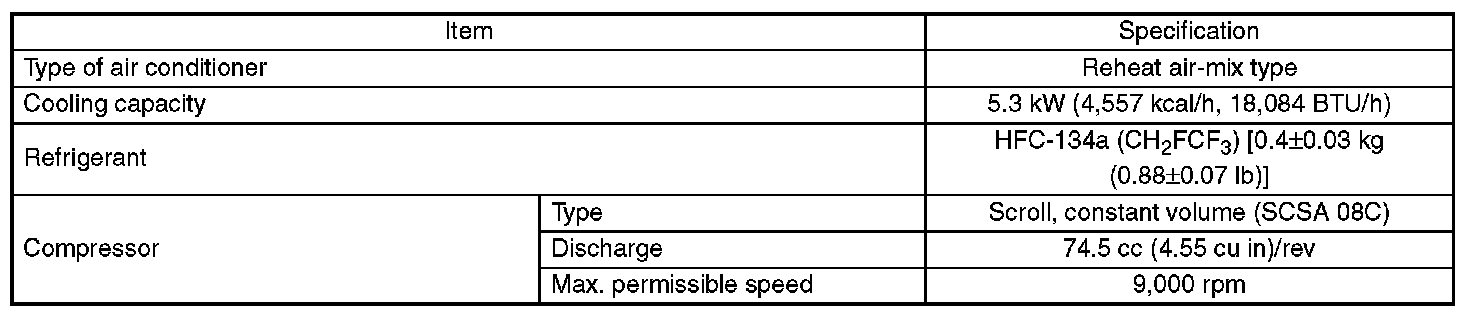

Specification - Manual A/C Model Part 1:

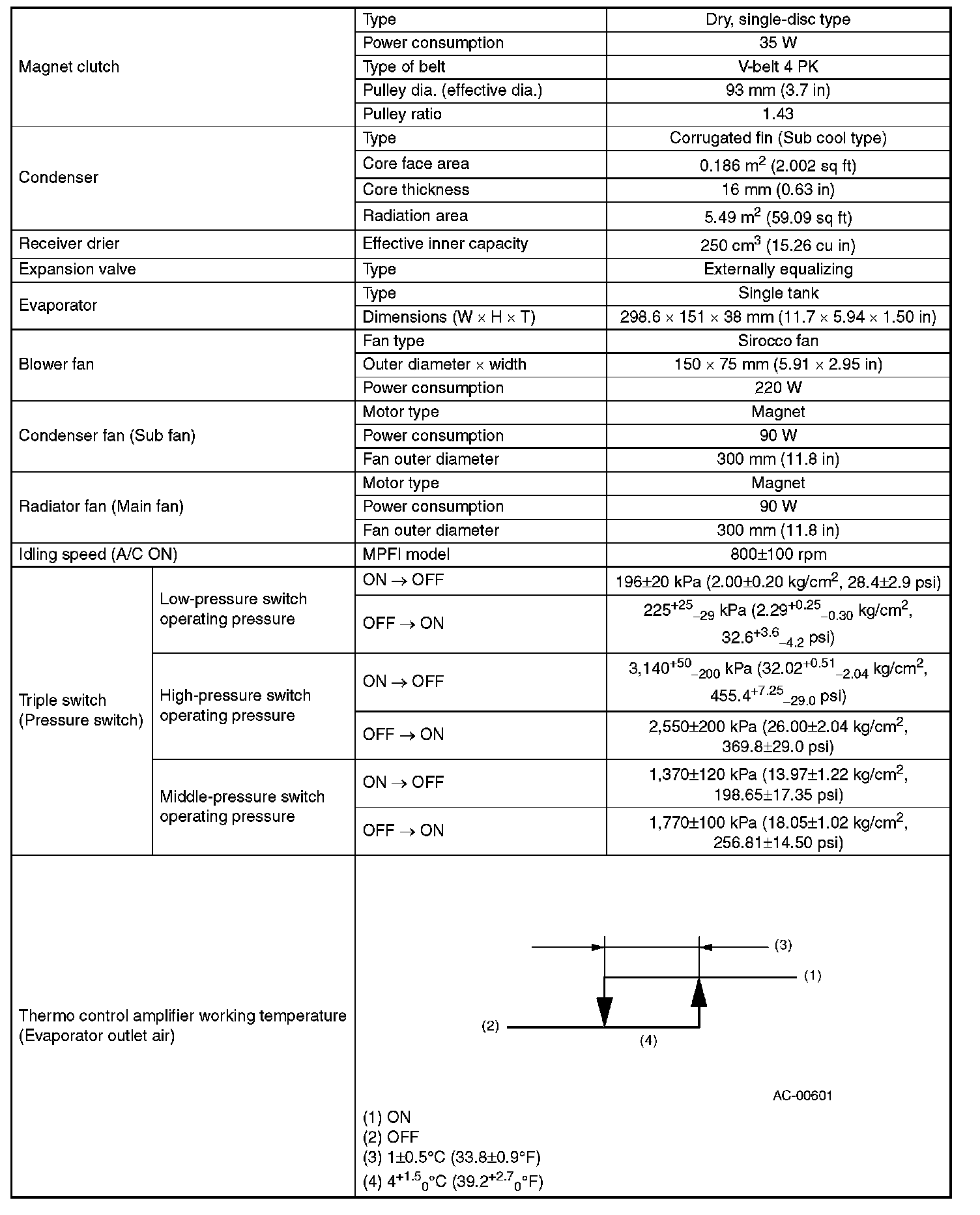

Specification - Manual A/C Model Part 2:
