Lateral Acceleration Sensor: Service and Repair

Lateral G Sensor

REMOVAL
1. Remove the console box.





2. Disconnect the connector from lateral G sensor.
3. Remove the lateral G sensor.

INSTALLATION





Install in the reverse order of removal.

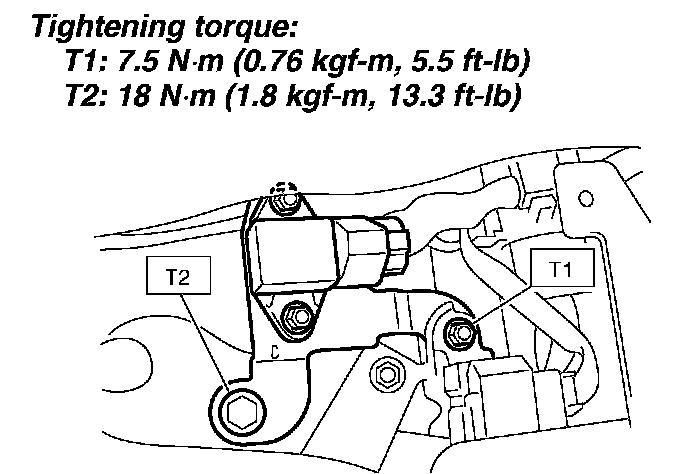

Tightening torque:
T1: 7.5Nm (0.76 kgf-cm, 5.5 ft. lbs.)
T2: 18 Nm (1.8 kgf-cm, 13.3 ft. lbs.)
