Inhibitor Switch

Inhibitor Switch

INSPECTION

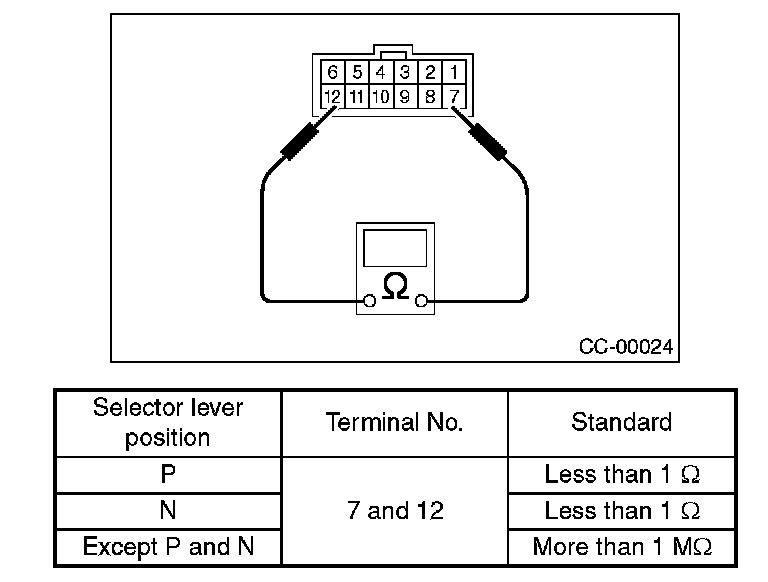

Measure the inhibitor switch resistance.
If NG, replace the inhibitor switch.
