Seat Occupant Sensor
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnosis By Symptom
Diagnosis By Symptom

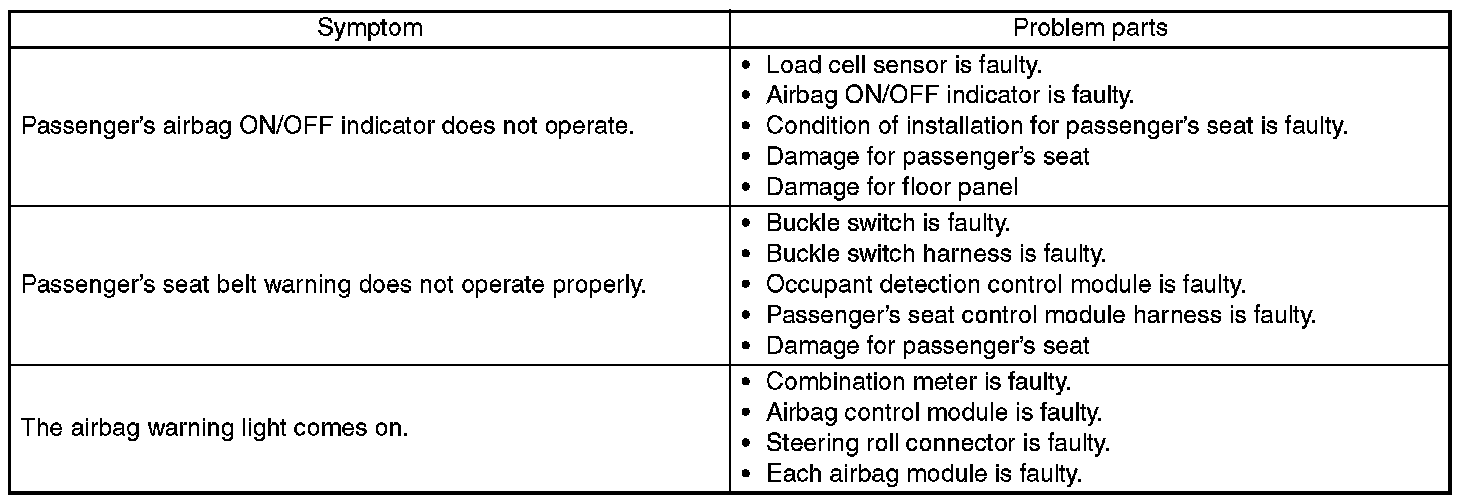

Symptom Chart:
