Remote Switch: Service and Repair

Steering Satellite Switch

REMOVAL
1. Disconnect the ground cable from battery.
2. Set the tire to the straight-ahead position.
3. Remove the airbag module.

WARNING: With the airbag module equipped, always refer to "Airbag System" when performing the airbag module repair service.

4. Remove the steering wheel.
5. Remove the cover from steering wheel.

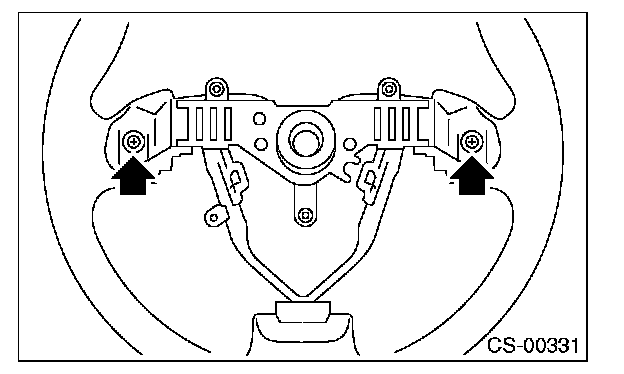

6. Remove each one of satellite switch mounting screw from the LH and RH side.
7. Remove the satellite switch.

INSTALLATION
Install in the reverse order of removal.
