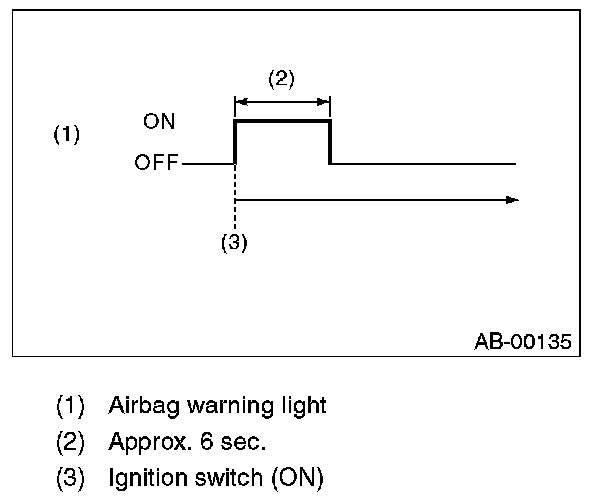

Airbag Warning Light Illumination Pattern

Airbag Warning Light Illumination Pattern

INSPECTION




Keep the ignition switch ON, and confirm that the airbag warning light remains off approx. 6 seconds after being turned on.
