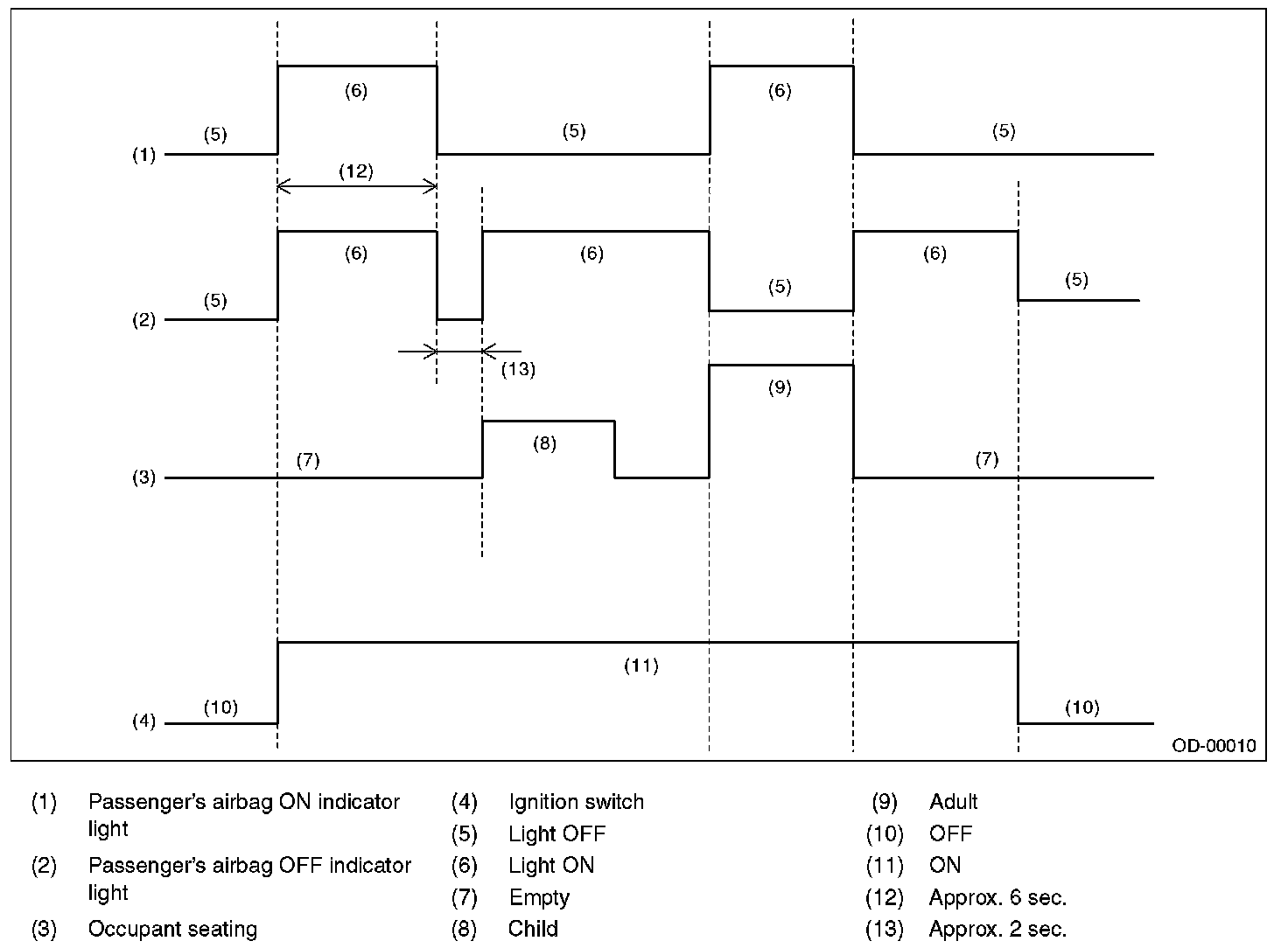

Passenger's Airbag ON/OFF Indicator Light Illumination Pattern
Passenger's Airbag ON/OFF Indicator Light Illumination PatternINSPECTION
NOTE: After the ignition switch is ON, the passenger's airbag ON/OFF indicator light for both ON and OFF come on for 6 seconds then turn off for 2 seconds, and then either ON or OFF will be illuminated for occupants.
