Rear

Rear Seat Belt

REMOVAL

1. OUTER SEAT BELT RH ASSEMBLY AND LH ASSEMBLY (SEDAN MODEL)
1. Remove the rear seat.




2. Remove the seat belt lower anchor bolt.
3. Remove the rear quarter trim.

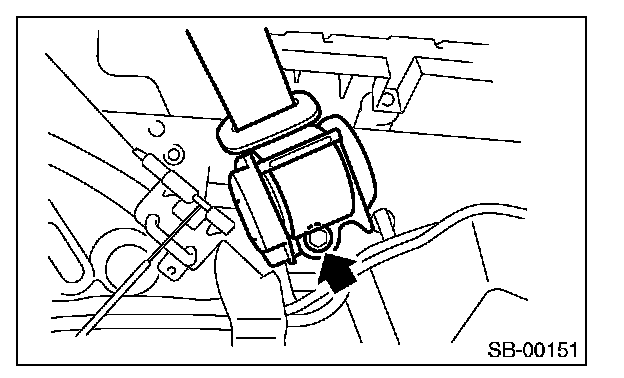

4. Remove the bolt to remove outer seat belt assembly.

2. SHOULDER SEAT BELT CENTER ASSEMBLY (SEDAN MODEL)
1. Remove the rear seat cushion.




2. Remove the seat belt lower anchor bolt.
3. Remove the rear quarter trim.
4. Remove the rear shelf trim.

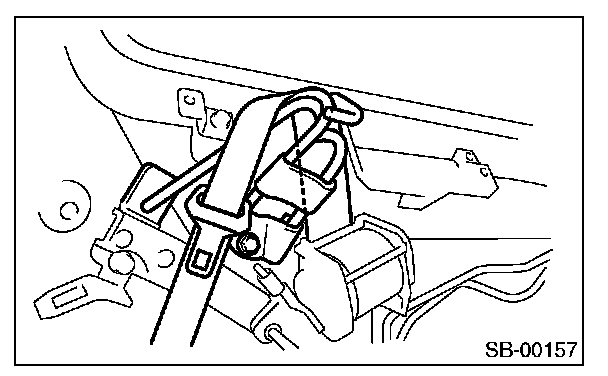

5. Remove the bolt to remove shoulder seat belt assembly.

3. CENTER SEAT BELT LH ASSEMBLY (SEDAN MODEL)
1. Remove the rear seat cushion.

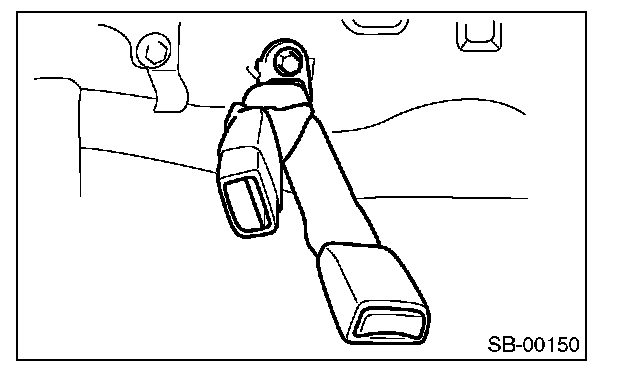

2. Remove the bolt to remove center seat belt LH assembly.

4. OUTER SEAT BELT RH ASSEMBLY AND LH ASSEMBLY (WAGON MODEL)
1. Remove the luggage floor box.
2. Remove the rear seat cushion and backrest shoulder.
3. Remove the rear quarter lower trim.




4. Remove the bolt to remove outer seat belt retractor.




5. Remove the bolts to remove outer seat belt guide.

5. SHOULDER SEAT BELT CENTER ASSEMBLY (WAGON MODEL)
1. Remove the quarter rear pillar trim.




2. Remove the cover (A) from roof trim, and then inset it to the inside of roof trim.




3. Remove the clips, and then lower the roof trim end.

CAUTION: When removing the roof trim clip, do not pull the roof trim end backward with excessive force, otherwise roof trim may be damaged.




4. Remove the bolt to remove seat belt retractor.

6. CENTER SEAT BELT RH ASSEMBLY AND LH ASSEMBLY (WAGON MODEL)
1. Remove the rear seat cushion.




2. Remove the bolts, and then detach the center seat belt assembly.

INSTALLATION

1. OUTER SEAT BELT RH ASSEMBLY AND LH ASSEMBLY (SEDAN MODEL)
Install in the reverse order of removal.

CAUTION:
- During installation, make sure that the seat belts are not twisted.
- After installation, make sure that the seat belts are smoothly extended and wound.

2. SHOULDER SEAT BELT CENTER ASSEMBLY (SEDAN MODEL)
Install in the reverse order of removal.

CAUTION:
- During installation, make sure that the seat belts are not twisted.
- After installation, make sure that the seat belts are smoothly extended and wound.

3. CENTER SEAT BELT LH ASSEMBLY (SEDAN MODEL)
Install in the reverse order of removal.

CAUTION: During installation, make sure that the seat belts are not twisted.

4. OUTER SEAT BELT RH ASSEMBLY AND LH ASSEMBLY (WAGON MODEL)
Install in the reverse order of removal.

CAUTION:
- During installation, make sure that the seat belts are not twisted.
- After installation, make sure that the seat belts are smoothly extended and wound.

5. SHOULDER SEAT BELT CENTER ASSEMBLY (WAGON MODEL)




Install in the reverse order of removal.

CAUTION:
- After seat belt guide installation, make sure that the seat belts are wound.
- During installation, make sure that the seat belts are not twisted.
- After installation, make sure that the seat belts are smoothly extended and wound.

6. CENTER SEAT BELT RH ASSEMBLY AND LH ASSEMBLY (WAGON MODEL)
Install in the reverse order of removal.

CAUTION: During installation, make sure that the seat belts are not twisted.
