Seat Belt Tensioner: Service and Repair

Pretensioner Connector

REMOVAL

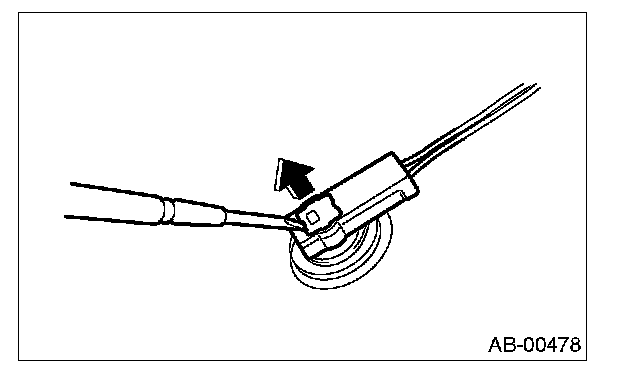

1. Using a flat tip screwdriver, pry the push lock upward to unlock.

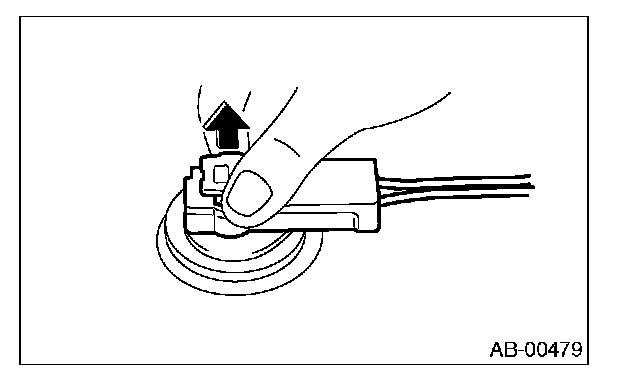

2. Pull out the connector to disconnect it from retractor assembly.

INSTALLATION




Connect the connector in the reverse order of disconnection. At this time, be sure to insert the push lock until a connecting sound is heard.

CAUTION:
- Be sure to insert the connector in until it is locked. Then pull on it gently to make sure that it is locked.

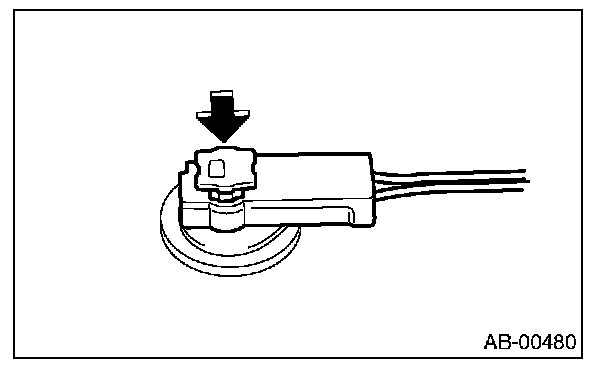

- Be sure to push the push lock in securely.
