Horn Relay: Testing and Inspection
HORN RELAY

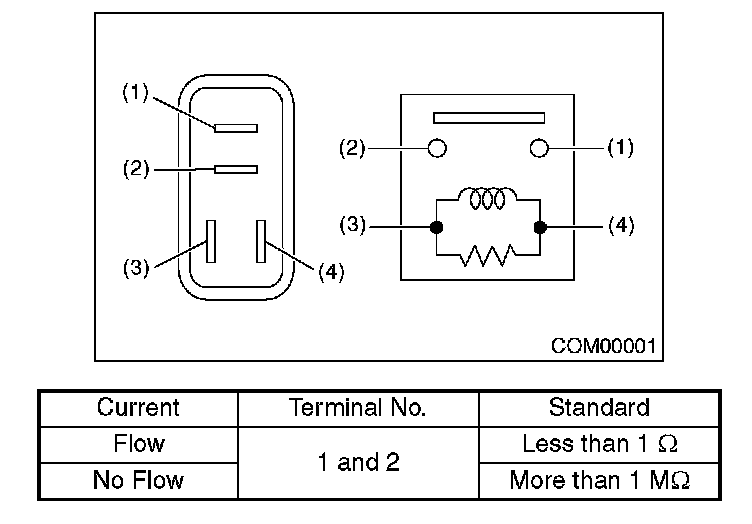

Measure the horn relay resistance between terminals (indicated in the table) when connecting the terminal No. 4 to battery positive terminal and terminal No. 3 to battery ground terminal.
Measure the horn relay resistance between terminals (indicated in the table) when connecting the terminal No. 4 to battery positive terminal and terminal No. 3 to battery ground terminal.
