Description of On-Board Diagnostics

SPORT Indicator Light Display

OPERATION

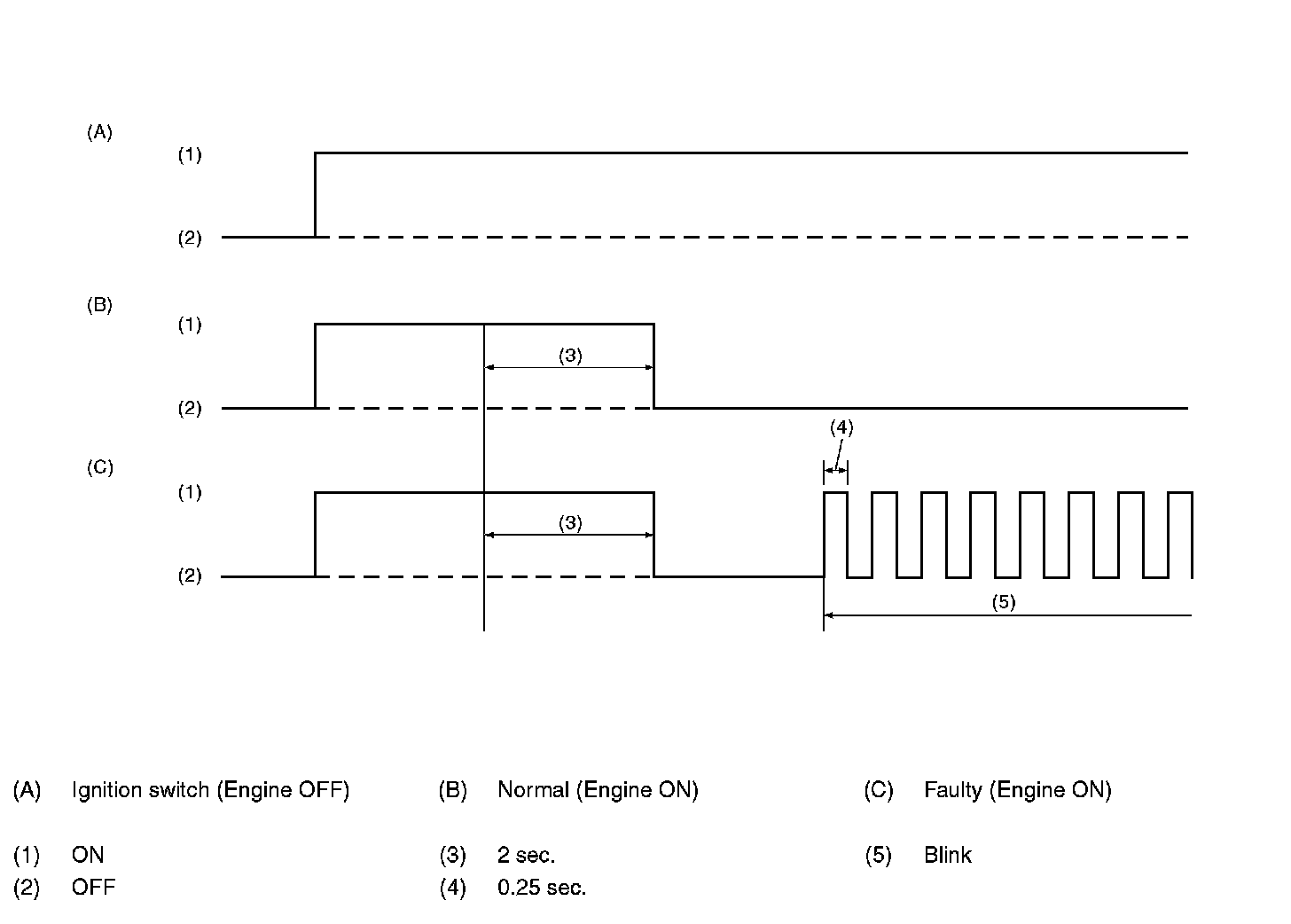

When any on-board diagnostics item is malfunctioning, the display on the SPORT indicator light blinks from the time the malfunction is detected after starting the engine until the ignition switch is turned OFF. The malfunctioning part or unit can be determined by the DTC during on-board diagnostics operation. Problems which occurred previously can also be identified through the memory function. If the SPORT indicator light does not show a problem (although a problem is occurring), the problem can be determined by checking the performance characteristics of each sensor using the Subaru Select Monitor. Indicator light signal pattern is as shown in the figure.
When the SPORT indicator light does not operate normally but no DTC is stored, perform the SPORT indicator light inspection.

INSPECTION

DIAGNOSIS
SPORT indicator light circuit is open or shorted.

TROUBLE SYMPTOM
When the ignition switch is turned to ON (engine OFF), SPORT indicator light does not illuminate.

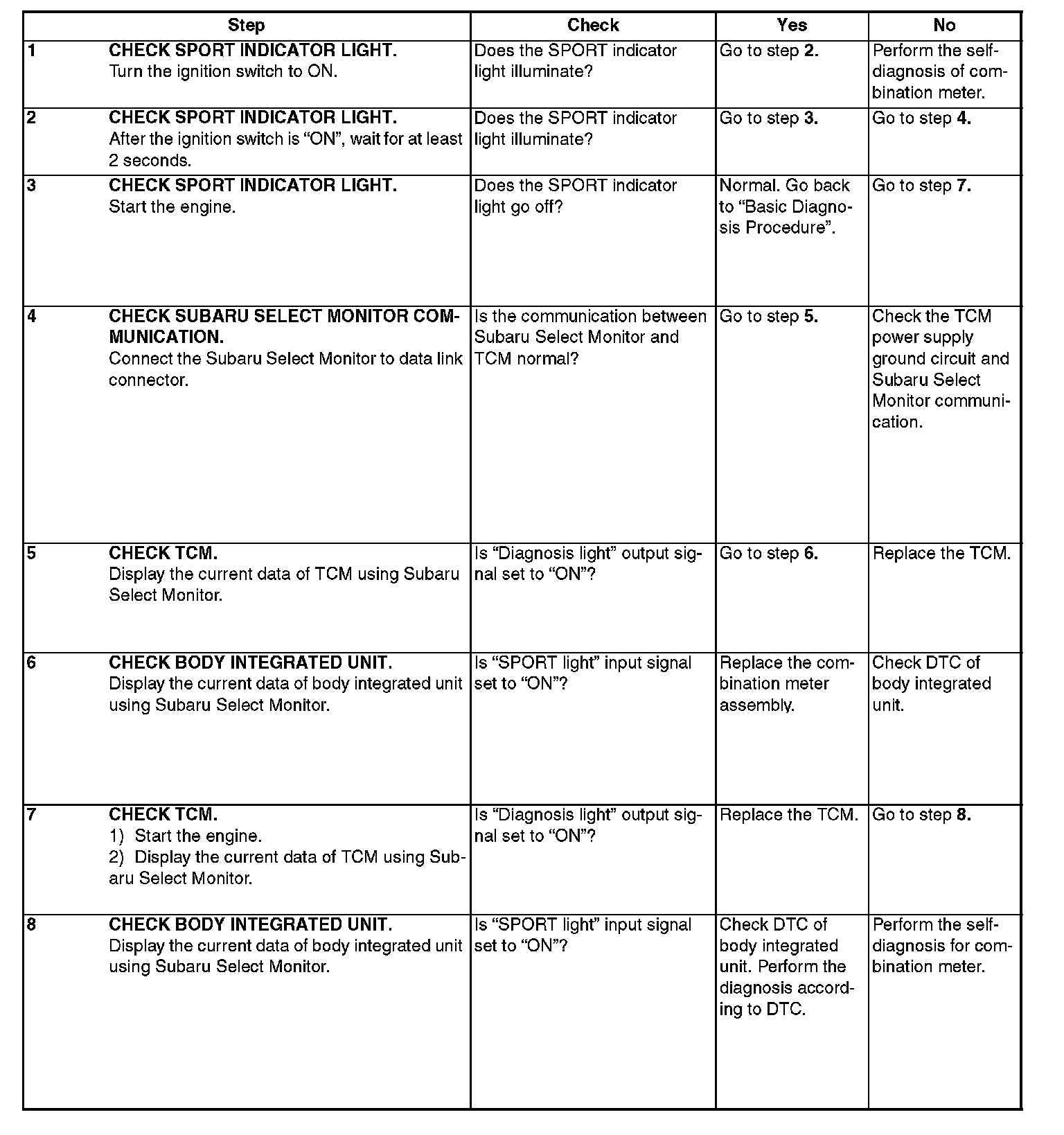

Steps 1 - 8:

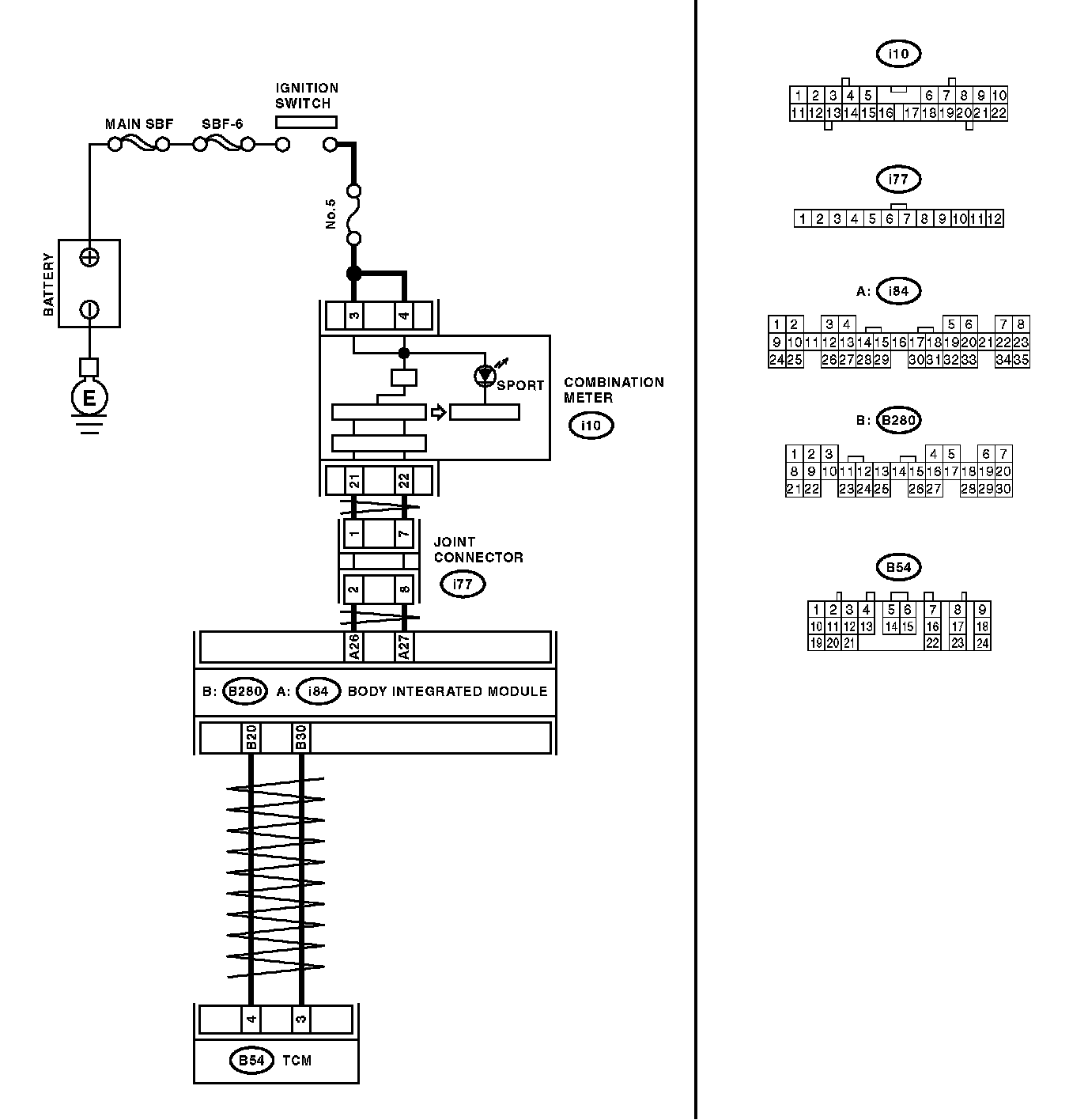

WIRING DIAGRAM
